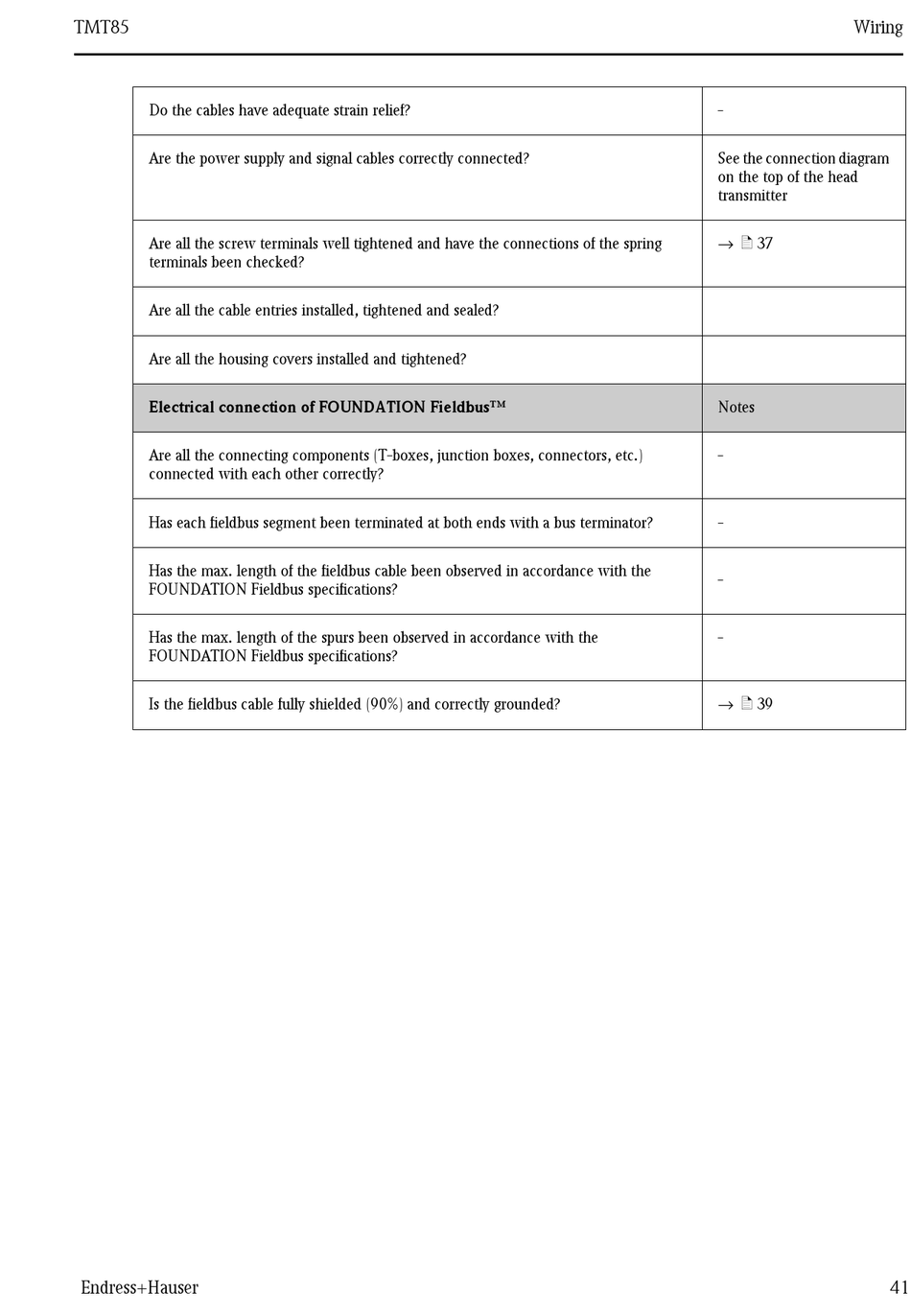

TMT85
Do the cables have adequate strain relief?
Are the power supply and signal cables correctly connected?
Are all the screw terminals well tightened and have the connections of the spring
terminals been checked?
Are all the cable entries installed, tightened and sealed?
Are all the housing covers installed and tightened?
Electrical connection of FOUNDATION Fieldbus™
Are all the connecting components (T-boxes, junction boxes, connectors, etc.)
connected with each other correctly?
Has each fieldbus segment been terminated at both ends with a bus terminator?
Has the max. length of the fieldbus cable been observed in accordance with the
FOUNDATION Fieldbus specifications?
Has the max. length of the spurs been observed in accordance with the
FOUNDATION Fieldbus specifications?
Is the fieldbus cable fully shielded (90%) and correctly grounded?
Endress+Hauser
Wiring
-
See the connection diagram
on the top of the head
transmitter
→ ä 37
Notes
-
-
-
-
→ ä 39
41
