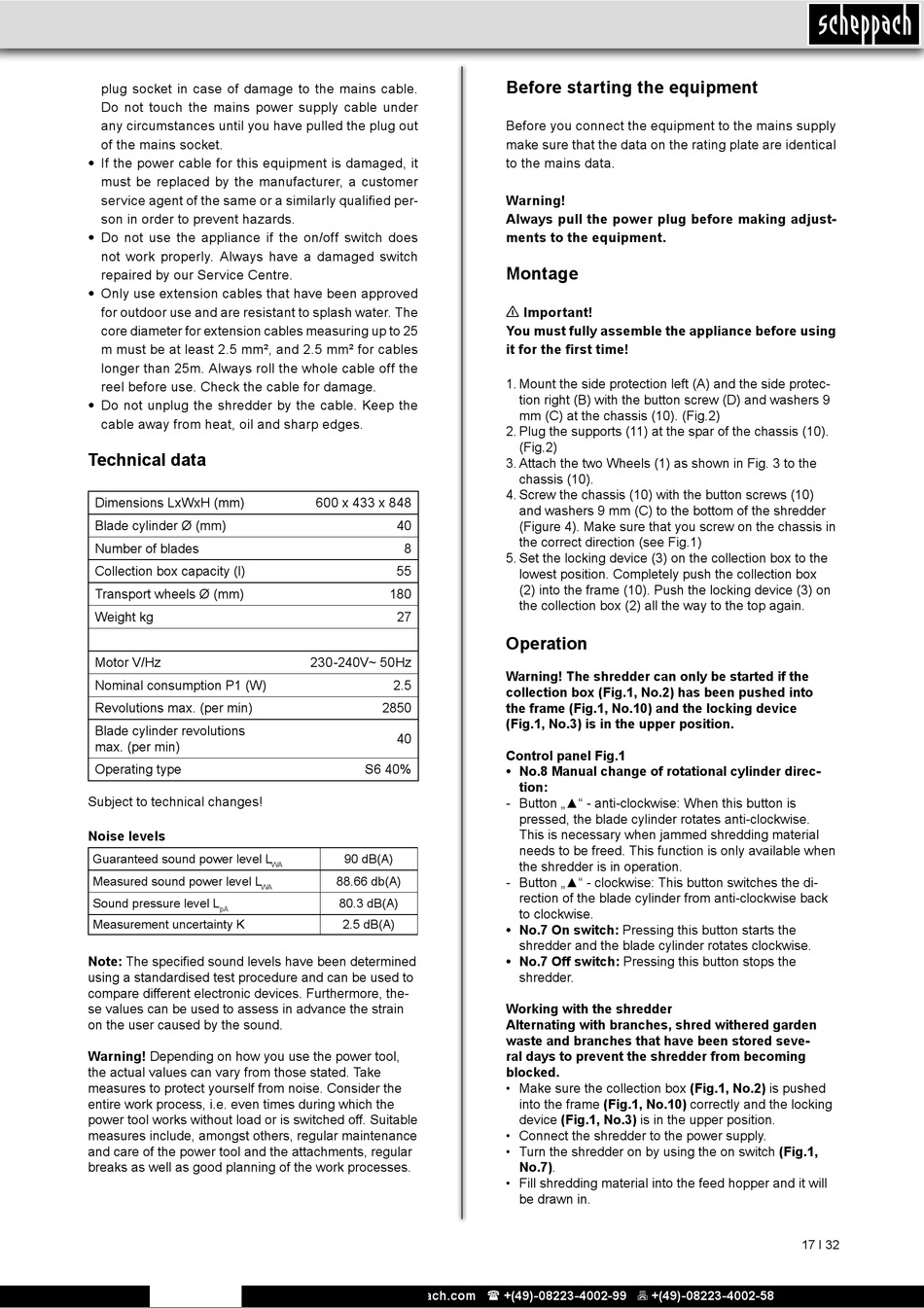

plug socket in case of damage to the mains cable.
Do not touch the mains power supply cable under
any circumstances until you have pulled the plug out
of the mains socket.
• If the power cable for this equipment is damaged, it
must be replaced by the manufacturer, a customer
service agent of the same or a similarly qualified per-
son in order to prevent hazards.
• Do not use the appliance if the on/off switch does
not work properly. Always have a damaged switch
repaired by our Service Centre.
• Only use extension cables that have been approved
for outdoor use and are resistant to splash water. The
core diameter for extension cables measuring up to 25
m must be at least 2.5 mm², and 2.5 mm² for cables
longer than 25m. Always roll the whole cable off the
reel before use. Check the cable for damage.
• Do not unplug the shredder by the cable. Keep the
cable away from heat, oil and sharp edges.

Technical data

Dimensions LxWxH (mm)
Blade cylinder Ø (mm)
Number of blades
Collection box capacity (l)
Transport wheels Ø (mm)
Weight kg
Motor V/Hz
Nominal consumption P1 (W)
Revolutions max. (per min)
Blade cylinder revolutions
max. (per min)
Operating type
Subject to technical changes!
Noise levels
Guaranteed sound power level L
Measured sound power level L
WA
Sound pressure level L
pA
Measurement uncertainty K
Note: The specified sound levels have been determined
using a standardised test procedure and can be used to
compare different electronic devices. Furthermore, the-
se values can be used to assess in advance the strain
on the user caused by the sound.
Warning! Depending on how you use the power tool,
the actual values can vary from those stated. Take
measures to protect yourself from noise. Consider the
entire work process, i.e. even times during which the
power tool works without load or is switched off. Suitable
measures include, amongst others, regular maintenance
and care of the power tool and the attachments, regular
breaks as well as good planning of the work processes.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
600 x 433 x 848
40
8
55
180
27
230-240V~ 50Hz
2.5
2850
40
S6 40%
90 dB(A)
WA
88.66 db(A)
80.3 dB(A)
2.5 dB(A)

Before starting the equipment

Before you connect the equipment to the mains supply
make sure that the data on the rating plate are identical
to the mains data.
Warning!
Always pull the power plug before making adjust-
ments to the equipment.
Montage
n
Important!
You must fully assemble the appliance before using
it for the first time!
1. Mount the side protection left (A) and the side protec-
tion right (B) with the button screw (D) and washers 9
mm (C) at the chassis (10). (Fig.2)
2. Plug the supports (11) at the spar of the chassis (10).
(Fig.2)
3. Attach the two Wheels (1) as shown in Fig. 3 to the
chassis (10).
4. Screw the chassis (10) with the button screws (10)
and washers 9 mm (C) to the bottom of the shredder
(Figure 4). Make sure that you screw on the chassis in
the correct direction (see Fig.1)
5. Set the locking device (3) on the collection box to the
lowest position. Completely push the collection box
(2) into the frame (10). Push the locking device (3) on
the collection box (2) all the way to the top again.

Operation

Warning! The shredder can only be started if the
collection box (Fig.1, No.2) has been pushed into
the frame (Fig.1, No.10) and the locking device
(Fig.1, No.3) is in the upper position.
Control panel Fig.1
• No.8 Manual change of rotational cylinder direc-
tion:
- Button „▲" - anti-clockwise: When this button is
pressed, the blade cylinder rotates anti-clockwise.
This is necessary when jammed shredding material
needs to be freed. This function is only available when
the shredder is in operation.
- Button „▲" - clockwise: This button switches the di-
rection of the blade cylinder from anti-clockwise back
to clockwise.
• No.7 On switch: Pressing this button starts the
shredder and the blade cylinder rotates clockwise.
• No.7 Off switch: Pressing this button stops the
shredder.
Working with the shredder
Alternating with branches, shred withered garden
waste and branches that have been stored seve-
ral days to prevent the shredder from becoming
blocked.
• Make sure the collection box (Fig.1, No.2) is pushed
into the frame (Fig.1, No.10) correctly and the locking
device (Fig.1, No.3) is in the upper position.
• Connect the shredder to the power supply.
• Turn the shredder on by using the on switch (Fig.1,
No.7).
• Fill shredding material into the feed hopper and it will
be drawn in.
17 І 32
