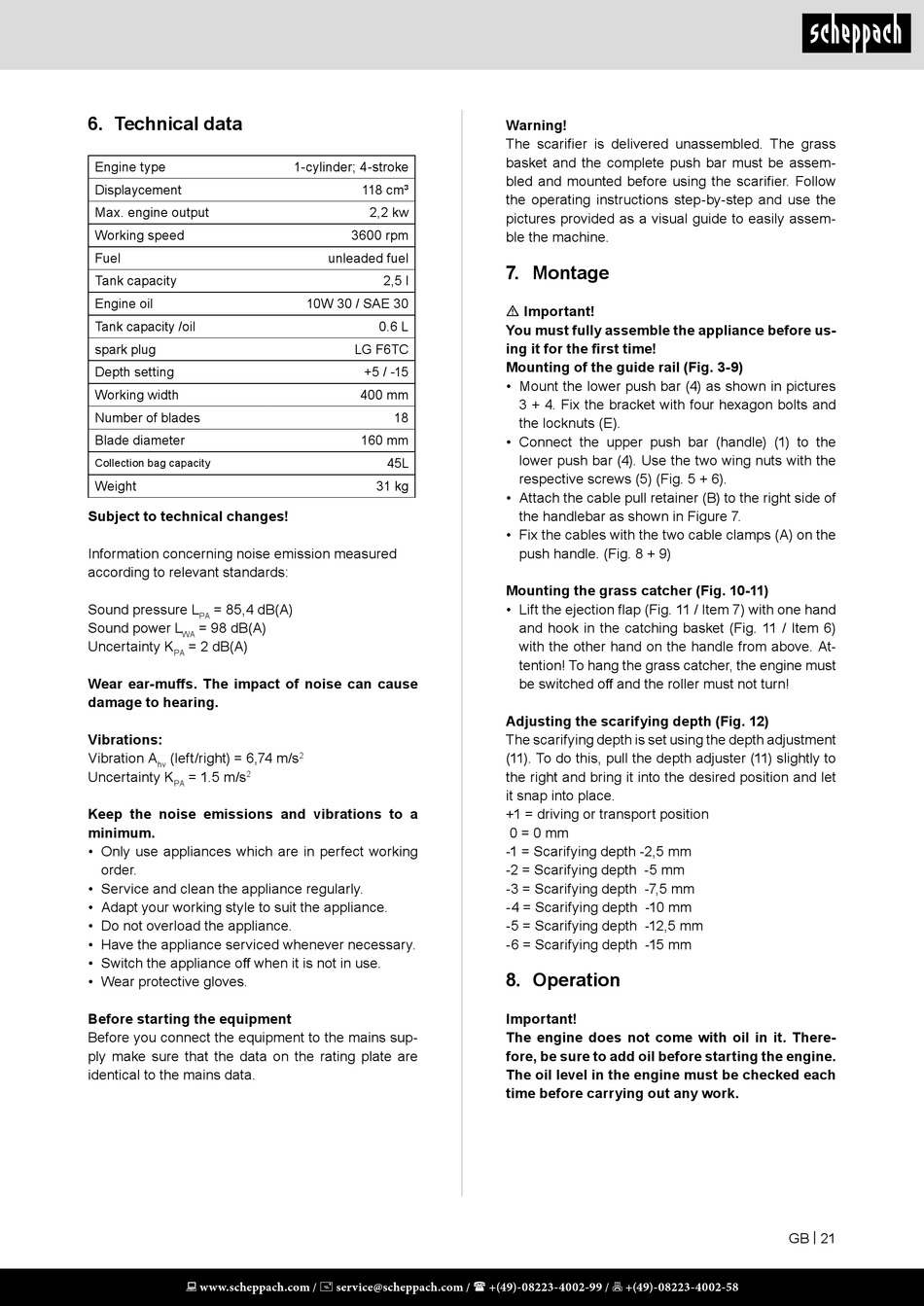

Technical Data; Montage; Operation - Scheppach SC40P Original Bedienungsanleitung

6. Technical data

Engine type
Displaycement
Max. engine output
Working speed
Fuel
Tank capacity
Engine oil
Tank capacity /oil
spark plug
Depth setting
Working width
Number of blades
Blade diameter
Collection bag capacity
Weight
Subject to technical changes!
Information concerning noise emission measured
according to relevant standards:
Sound pressure L = 85,4 dB(A)
PA
Sound power L = 98 dB(A)
WA
Uncertainty K = 2 dB(A)
PA
Wear ear-muffs. The impact of noise can cause
damage to hearing.
Vibrations:
Vibration A (left/right) = 6,74 m/s
hv
Uncertainty K = 1.5 m/s
2
PA
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Before starting the equipment
Before you connect the equipment to the mains sup-
ply make sure that the data on the rating plate are
identical to the mains data.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
1-cylinder; 4-stroke
118 cm³
2,2 kw
3600 rpm
unleaded fuel
2,5 l
10W 30 / SAE 30
0.6 L
LG F6TC
+5 / -15
400 mm
18
160 mm
45L
31 kg
2
Warning!
The scarifier is delivered unassembled. The grass
basket and the complete push bar must be assem-
bled and mounted before using the scarifier. Follow
the operating instructions step-by-step and use the
pictures provided as a visual guide to easily assem-
ble the machine.

7. Montage

m Important!
You must fully assemble the appliance before us-
ing it for the first time!
Mounting of the guide rail (Fig. 3-9)
• Mount the lower push bar (4) as shown in pictures
3 + 4. Fix the bracket with four hexagon bolts and
the locknuts (E).
• Connect the upper push bar (handle) (1) to the
lower push bar (4). Use the two wing nuts with the
respective screws (5) (Fig. 5 + 6).
• Attach the cable pull retainer (B) to the right side of
the handlebar as shown in Figure 7.
• Fix the cables with the two cable clamps (A) on the
push handle. (Fig. 8 + 9)
Mounting the grass catcher (Fig. 10-11)
• Lift the ejection flap (Fig. 11 / Item 7) with one hand
and hook in the catching basket (Fig. 11 / Item 6)
with the other hand on the handle from above. At-
tention! To hang the grass catcher, the engine must
be switched off and the roller must not turn!
Adjusting the scarifying depth (Fig. 12)
The scarifying depth is set using the depth adjustment
(11). To do this, pull the depth adjuster (11) slightly to
the right and bring it into the desired position and let
it snap into place.
+1 = driving or transport position
0 = 0 mm
-1 = Scarifying depth -2,5 mm
-2 = Scarifying depth -5 mm
-3 = Scarifying depth -7,5 mm
-4 = Scarifying depth -10 mm
-5 = Scarifying depth -12,5 mm
-6 = Scarifying depth -15 mm

8. Operation

Important!
The engine does not come with oil in it. There-
fore, be sure to add oil before starting the engine.
The oil level in the engine must be checked each
time before carrying out any work.
