WARNING: Use only grounded electrical
connections. Connect the Power Supply unit
(coming with the Concept IV
to grounded electrical outlets rated for voltage
and amperage in accordance with the label
ratings on the product data plate located on the
back panel of the Power Supply unit. Use only
Hospital Grade outlets. Refer to Section 2.8:
Product Specifications, for additional
information.
WARNING: Hot Surface exposure.
The tip of the handpiece connector can
temporarily become hot from the light source.
Exercise caution when removing the handpiece
from the docking station and avoid handling the
tip-end until the connector has cooled to the
touch.
WARNING: Use Only AcuCam Disposable
Sheaths. AcuCam disposable sheaths were
designed specifically for the Concept IV
handpiece. It is recommended that only AcuCam
sheaths be used in conjunction with the AcuCam
handpiece in order to insure the greatest
infection control.
WARNING: Equipment not suitable for use in
the presence of a flammable anesthetic mixture
with air or with oxygen or nitrous oxide.

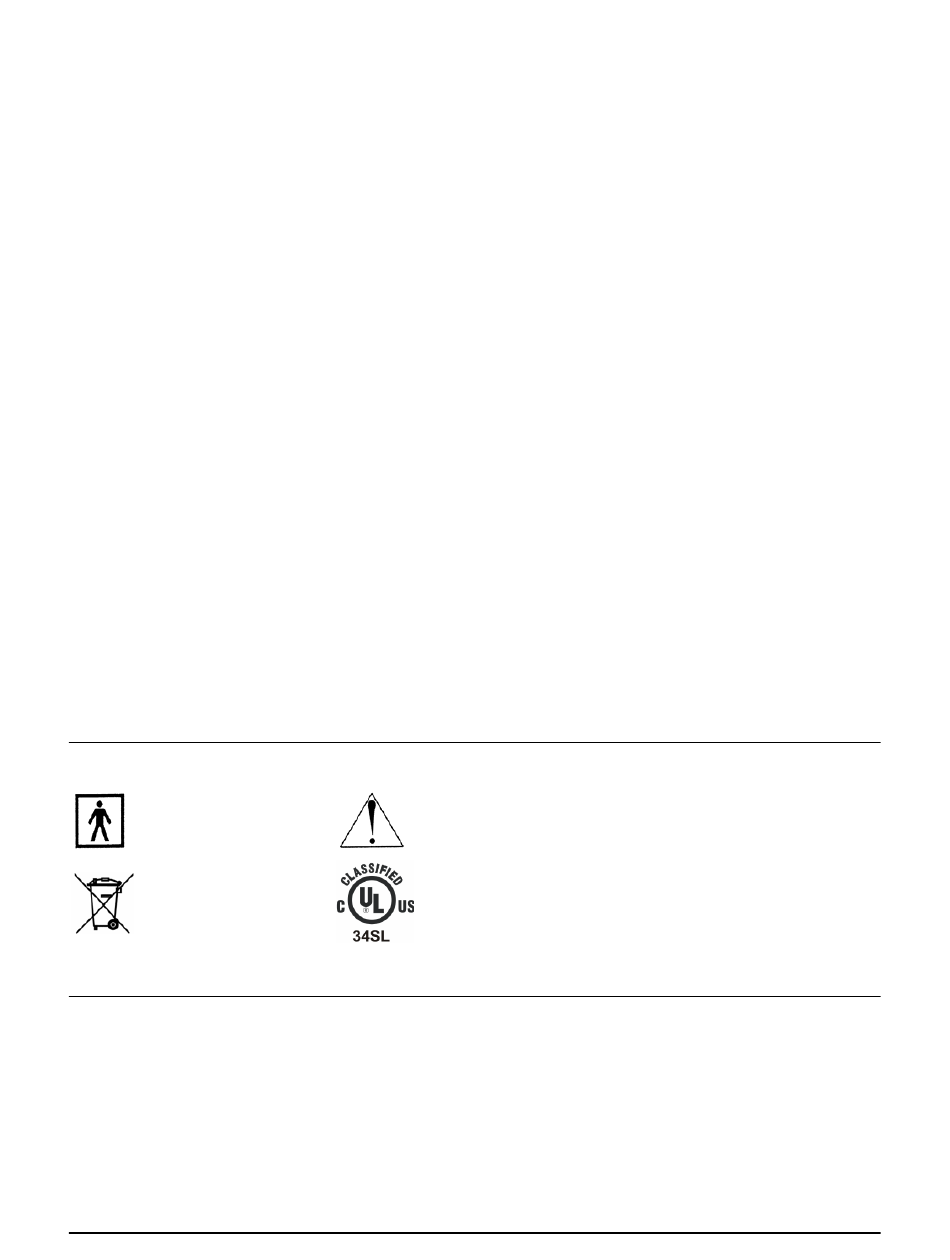

1.3. DEFINITION OF SYMBOLS
Below are the definitions of symbols used with this product.
NOTE: Includes
Type BF Applied
Part
Electronic Equipment
No recycle into
normal trash
1.4. ABBREVIATIONS
Abbreviations used in this manual are listed below along with their definitions.
AC
Alternating Current
Amps Amperage
V
Volts
mm
Millimeter — 1/1,000 of a Meter
(25.4 mm = 1 inch)
m
Meters — (0.305 m = 1 foot)
Hz
Hertz (cycles per second)
FWT
AcuCam Concept IV
FWT
camera system)
Consult written Instructions in the Operator's Manual
Medical equipment with respect to electric shock, fire
and mechanical hazards only in accordance with
UL 2601-1, CAN/CSA C22.2
No.60601.1 and IEC 60601-1-2.
4
1.2.2. Cautions
CAUTION: Do Not Place Objects on Docking
Station. Do not place objects on top of docking
station console. The surface is not flat and
objects can slide off without warning.
CAUTION: Use Care When Handling
Cables. Avoid extreme bends in cables or
pulling on cables. Hold the connector housings
when connecting or disconnecting cables.
CAUTION: Do Not Autoclave the Product.
Do not autoclave the camera handpiece and
monocoil cable. Autoclaving this component
will cause irreparable damage.
1.2.3. Notes
NOTE: Please make sure your computer,
imaging software, FireWire port or capture
board are properly installed and operating prior
to contacting Gendex for technical support.
NOTE: Unlike the fixed focus modes, in Macro
view it's easier to position the camera first and
then adjust the focus ring. Due to the high
magnification, steadying the camera is
paramount to obtaining a good image.
CCD
Charge Coupled Device
CCU
Camera Control Unit
LED
Light Emitting Diodes
NTSC National Television Standards
Committee
PAL
Phase Alternating Line
Operation Manual and Installation Guide
