2.5.5. The Concept IV
The Holster accommodates the Handpiece while
not in use. It can be relocated near by the
Docking Station or far from it, through the
appropriate connecting cable. Two cables, of
different length, are supplied. The Holster can be
attached to the Docking Station, to the left or to
the right, or it can be mounted beside a cabinet,
connected to the dental chair delivery unit or
anywhere nearby the patient area.
Concept IV
Handpiece
Connector
FWT
®
AcuCam
Concept IV
Meaning of the LED
GREEN BLINKING
GREEN ON
AMBER ON
AMBER BLINKING
BOTH BLINKING
BOTH ON
FWT
AcuCam Concept IV
FWT
Holster ---------------------------------------------------------------------------------
Video 2 LED - Amber

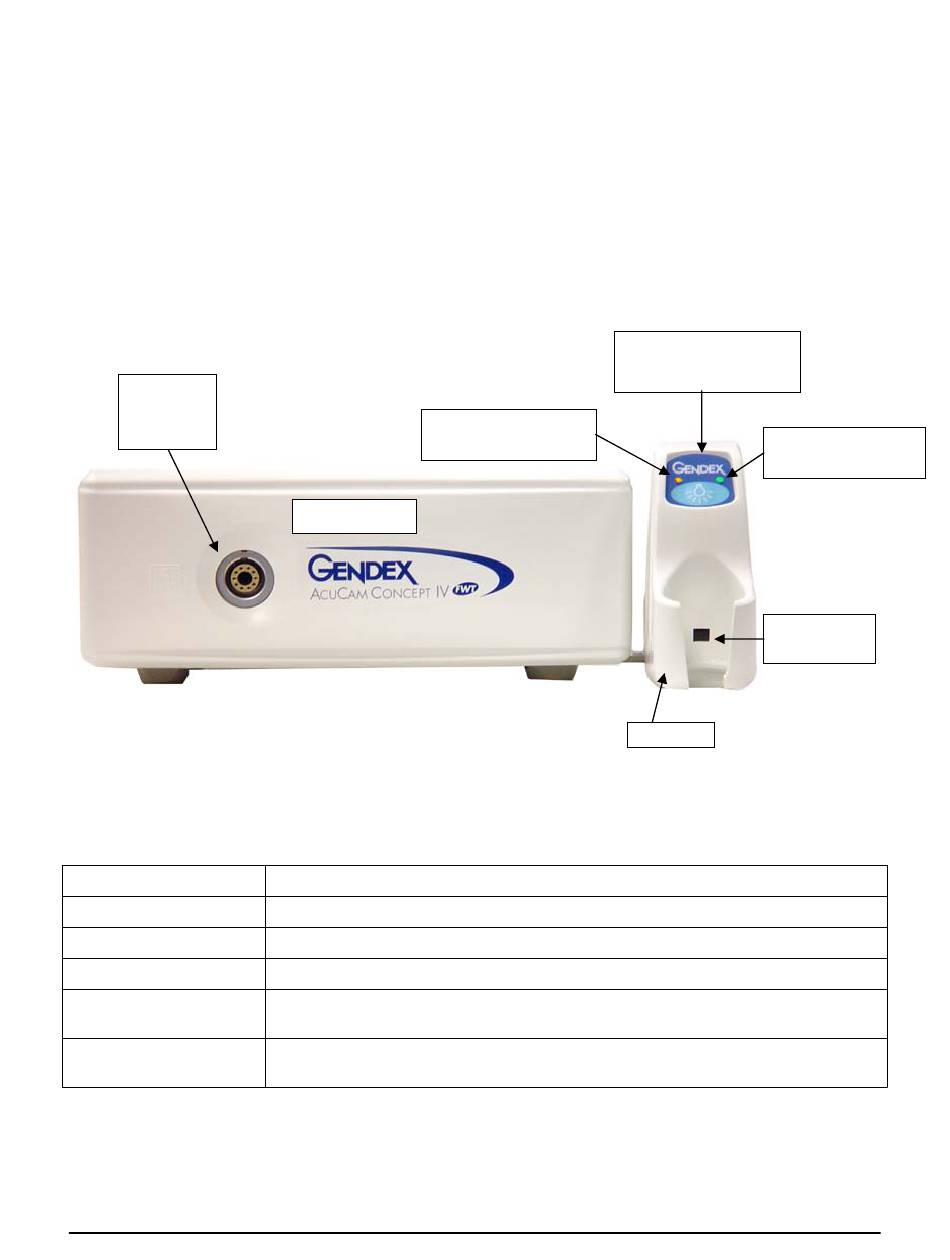

Front Panel
Docking Station and Holster
The system is powered and in Standby mode.
The AcuCam Hanpiece is streaming video.
The system is powered and the alternative video source is selected.
The system is running the equipment diagnostic.
It happens for a few moments only, when powering up the system by plugging
in the power connector.
Faulty condition (the camera is in programming mode, used during the
production phase only).
10
A button on the Holster allows to switch On and
Off the Handpiece light source or, holding the
button for two seconds, to select the video
source. Two LEDs indicate the selected video
source. The primary video source is the AcuCam
Hanpiece (Green LED, right side of the button);
the alternative video source is whatever is
connected to the Video-IN input available on the
Docking Station Back Panel (Amber LED, left
side of the button).
(Alternative Source)
Lamp On/Off Switch
&
Video Source Toggle
Video 1 LED – Green
(Concept IV Camera)
Holster
Light Sensor
Holster
Operation Manual and Installation Guide
