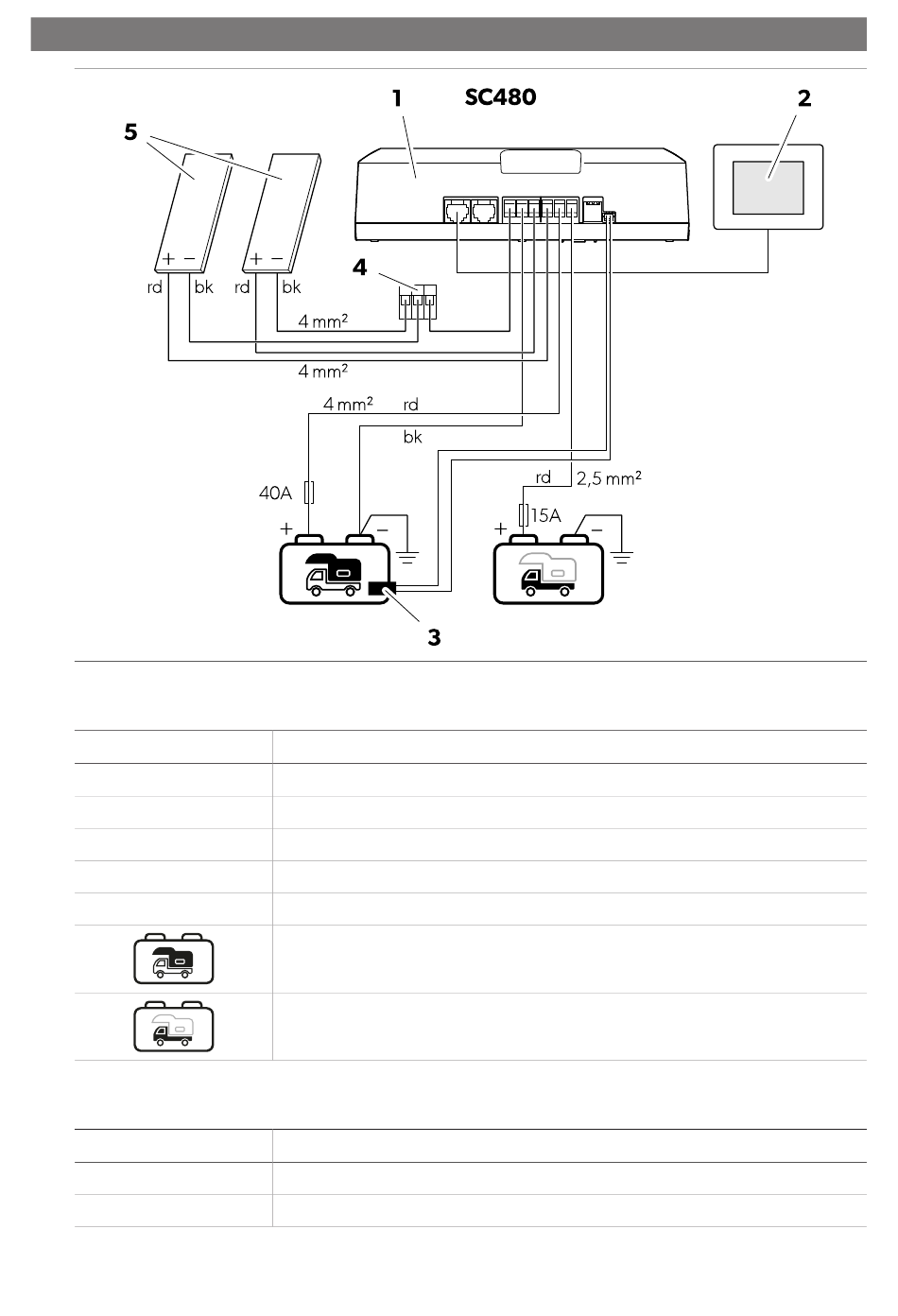

Table 9: Connection diagram SC480
No.
1
2
3
4
5
Table 10: Color coding
Code
rd
bk
18
Description
Solar charge controller
TD283 touch display (accessory)
Temperature sensor
WAGO connector
Solar panel(s)
House battery
Starting battery (optional)
Colour
red
black
