• Use suitable measuring instruments:
Multimeter with DC voltage measurement, 200 V or autoscale
Amperometric clamp with direct measurement (100 A scale or higher)
Connection variant for solar panel outputs ≤ 240 Wp.
Connection variant A (SC330 only)

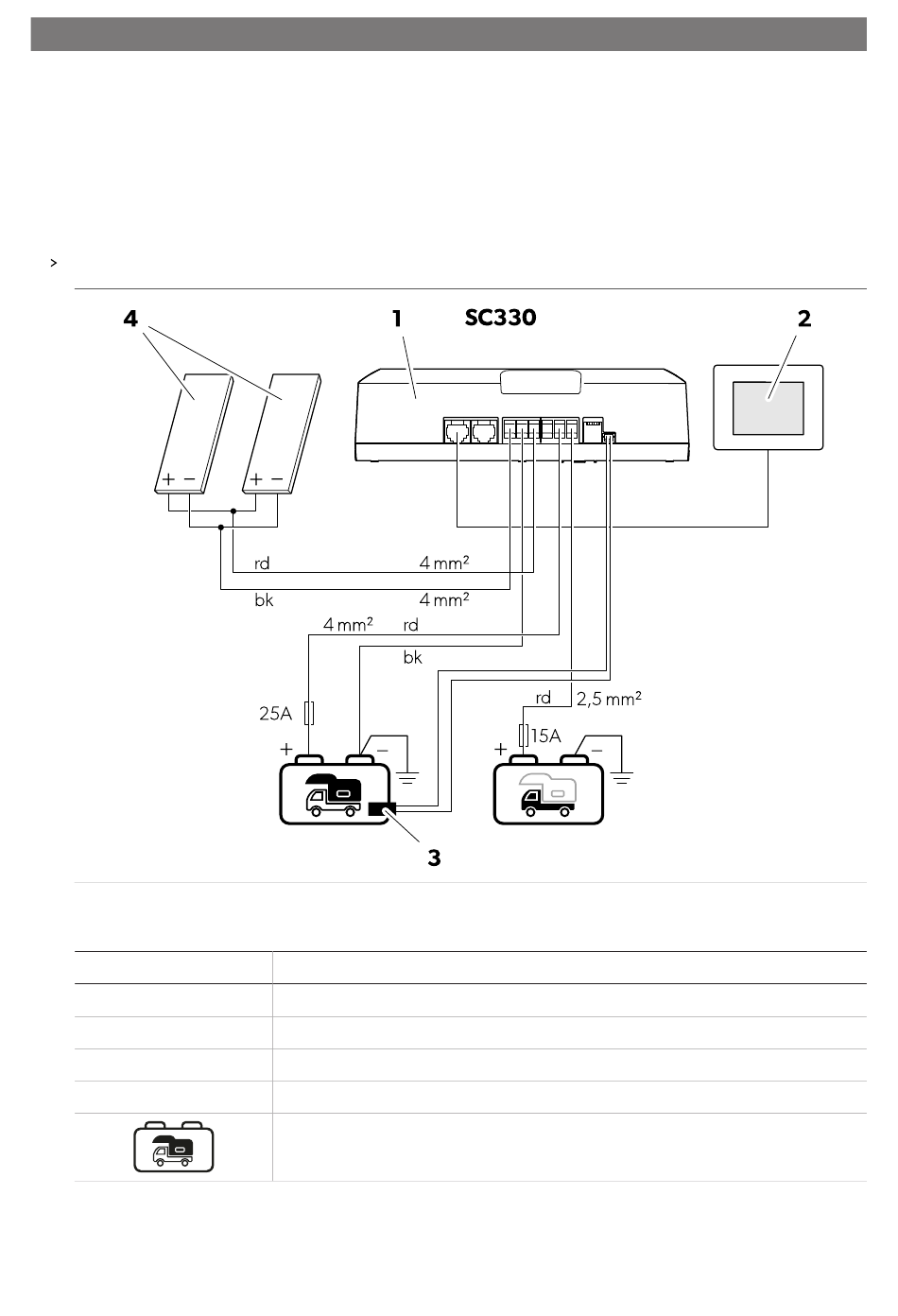

To connect the solar charge controller proceed as shown in
Table 3: Connection diagram SC330
No.
1
2
3
4
14
Description
Solar charge controller
TD283 touch display (accessory)
Temperature sensor
Solar panel(s)
House battery
Fig.
on page 14.
