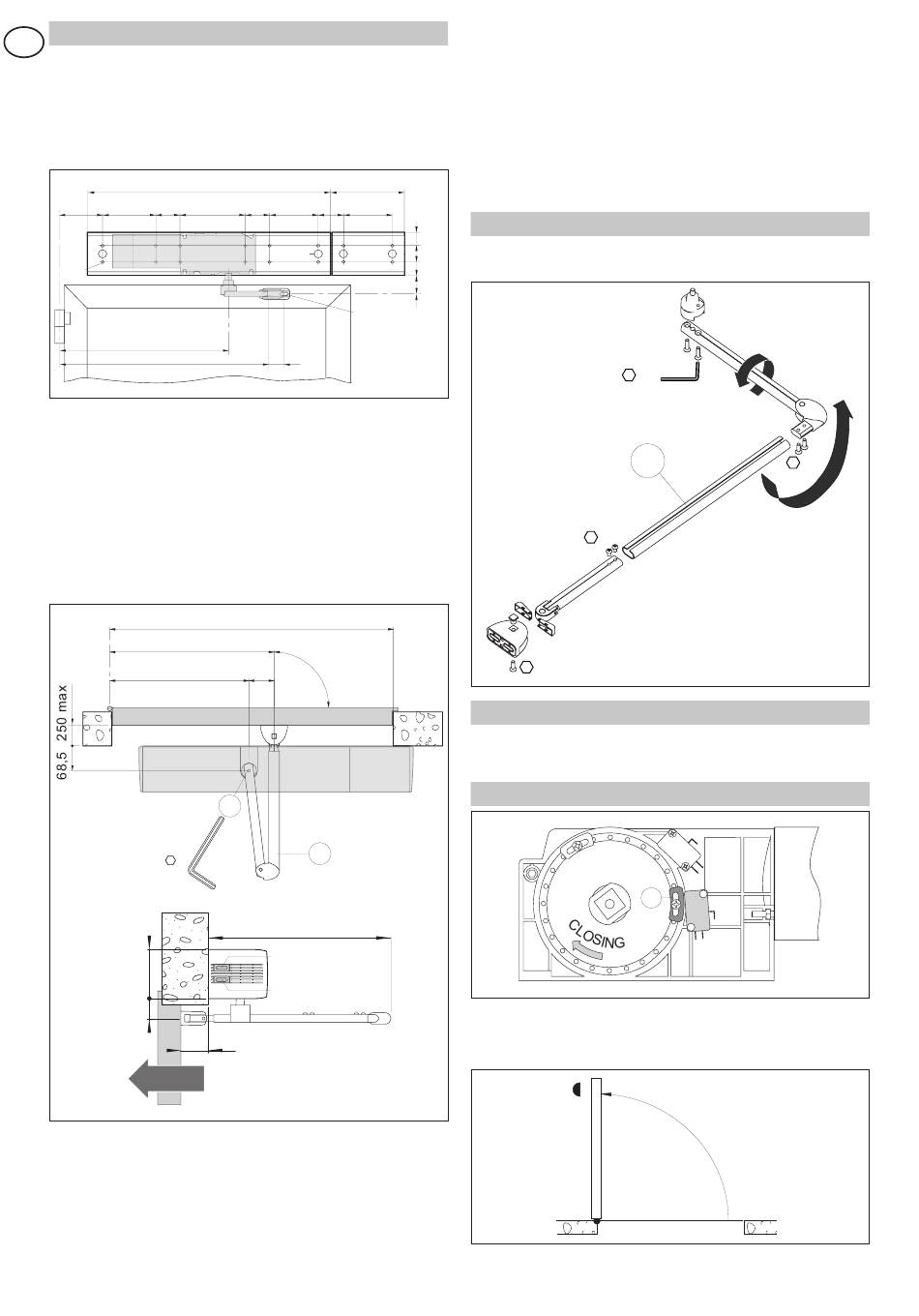

4. INSTALLATION OF THE JOINTED ARM
GB
The WELBA jointed arm is used for doors that open outwards
viewed from the gearmotor side.
Fasten the base plate [9] to the wall so it is stable and level using
the measurements indicated in the figure.
Also drill a hole in the door wing where the jointed arm is to
fixed.
80 120 60
Ø7
340 for SIZE 6
310 for SIZE 5
388
(*) If necessary use the WELD40 extension to lengthen the
measurement between the automation and the arm to 70 mm.
Reposition the components on the base plate.
Note: the motor must always be positioned on the hinge side.
Check that the jointed arm is properly assembled (see prepa-
ration in Chapter 4.1).
Fix the arm to the automation at point [X]. Also fix the top end
of the arm to the door wing, in such a way as to create an angle
of 90° as shown in the figure.
405
SIZE 6 = 340
SIZE 5 = 310
6
105
30 (*70)
OPENING
WELF - IP1819
590 230
160 60 120 62 170
MOTOR Ø20 FIRE
Ø6,5
35
700 min
90°
65
95
FIRE FIRE
X
Y
~400
RELEASE
RESET
250 max
Note: for distances between the automation and the door wing
lower than 115 mm it is necessary to shorten the non-drilled
side of the arm [Y].
Attention: the fixing of the arm to the door is difficult because of
the thrust of the spring.
Move the door manually and check that it opens and closes
properly without friction. Install the open door stop.
Note: the floor stops must be fastened in a visible position so
there is no risk of people tripping over them
4.1 Preparation of the jointed arm
32,5
If necessary reverse the jointed arm assembly as indicated in
40
the figure if the direction the door opens in requires it.
32,5
30 (*70)
4
5. AUTOMATION ADJUSTMENT
The automation adjusting must be carried out with the power
supply off.
5.1 Adjustment of the open limit switch
Adjust the door opening angle by moving the position of slider
[D] in such a way as to activate the open limit switch, before
the opening stop.
20
4
Y
4
D
FA
C
NO
FA = Endschalter öffnen /
Opening limit switch
4
