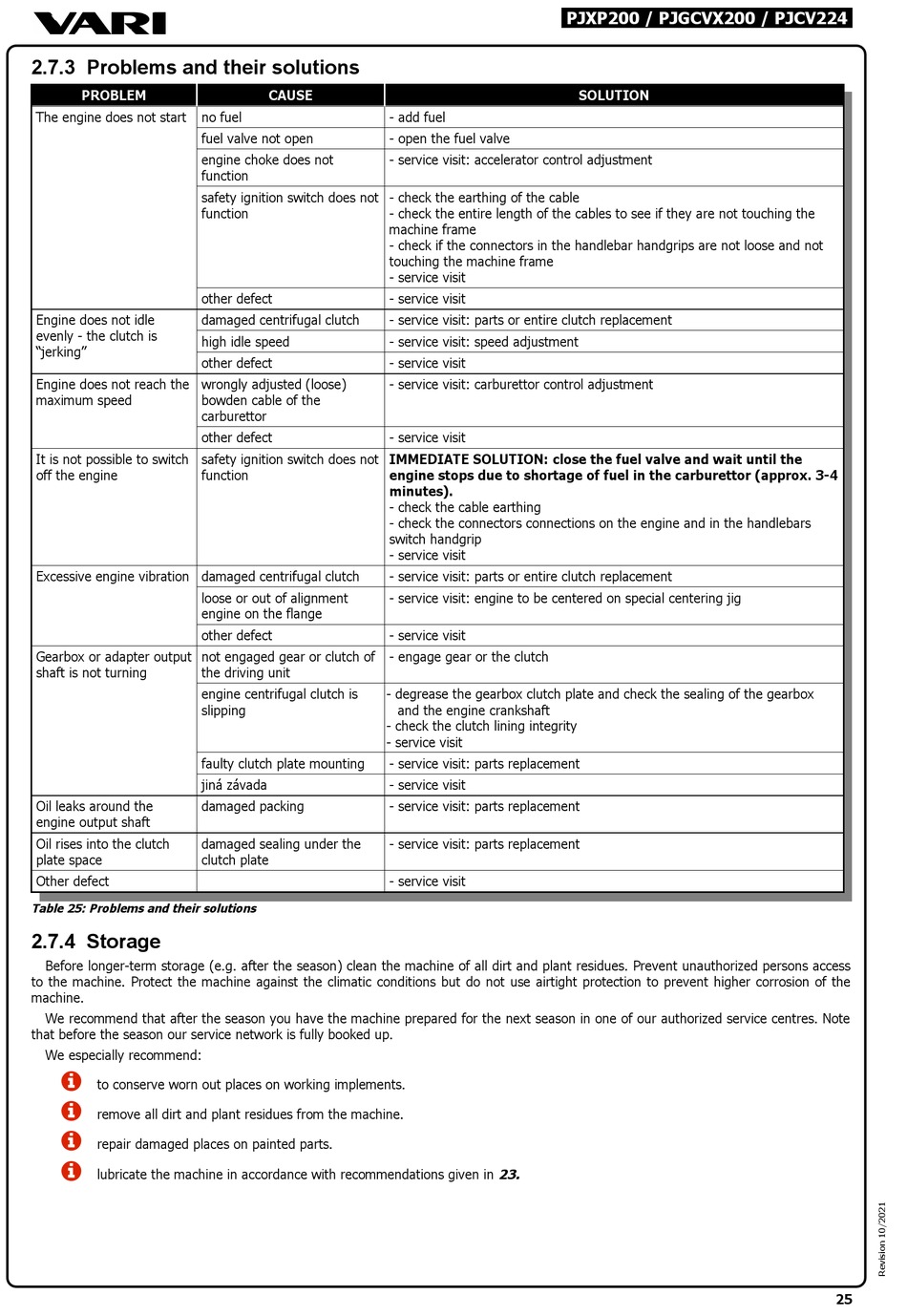

2.7.3 Problems and their solutions

PROBLEM
The engine does not start no fuel
fuel valve not open
engine choke does not
function
safety ignition switch does not
function
other defect
Engine does not idle damaged centrifugal clutch
evenly - the clutch is
high idle speed
"jerking"
other defect
Engine does not reach the wrongly adjusted (loose)
maximum speed bowden cable of the
carburettor
other defect
It is not possible to switch safety ignition switch does not
off the engine function
Excessive engine vibration damaged centrifugal clutch
loose or out of alignment
engine on the flange
other defect
Gearbox or adapter output not engaged gear or clutch of
shaft is not turning the driving unit
engine centrifugal clutch is
slipping
faulty clutch plate mounting
jiná závada
Oil leaks around the damaged packing
engine output shaft
Oil rises into the clutch damaged sealing under the
plate space clutch plate
Other defect
Table 25: Problems and their solutions

2.7.4 Storage

Before longer-term storage (e.g. after the season) clean the machine of all dirt and plant residues. Prevent unauthorized persons access
to the machine. Protect the machine against the climatic conditions but do not use airtight protection to prevent higher corrosion of the
machine.
We recommend that after the season you have the machine prepared for the next season in one of our authorized service centres. Note
that before the season our service network is fully booked up.
We especially recommend:

to conserve worn out places on working implements.

remove all dirt and plant residues from the machine.

repair damaged places on painted parts.

lubricate the machine in accordance with recommendations given in 23.
CAUSE
- add fuel
- open the fuel valve
- service visit: accelerator control adjustment
- check the earthing of the cable
- check the entire length of the cables to see if they are not touching the
machine frame
- check if the connectors in the handlebar handgrips are not loose and not
touching the machine frame
- service visit
- service visit
- service visit: parts or entire clutch replacement
- service visit: speed adjustment
- service visit
- service visit: carburettor control adjustment
- service visit
IMMEDIATE SOLUTION: close the fuel valve and wait until the
engine stops due to shortage of fuel in the carburettor (approx. 3-4
minutes).
- check the cable earthing
- check the connectors connections on the engine and in the handlebars
switch handgrip
- service visit
- service visit: parts or entire clutch replacement
- service visit: engine to be centered on special centering jig
- service visit
- engage gear or the clutch
- degrease the gearbox clutch plate and check the sealing of the gearbox
and the engine crankshaft
- check the clutch lining integrity
- service visit
- service visit: parts replacement
- service visit
- service visit: parts replacement
- service visit: parts replacement
- service visit
PJXP200 / PJGCVX200 / PJCV224
SOLUTION
25
