Cleaning and maintenance

Replacing the lamp

If the cavity lamp fails, it must be replaced.
Heat-resistant, 25 watt, 230 V halogen lamps are availab-
le from specialist retailers.
When handling the halogen lamp, use a dry cloth.
This will increase the service life of the lamp.
Warning
Risk of electric shock!
When replacing the lamp, the lamp socket con-
tacts are live. Before replacing the lamp, unplug
the appliance from the mains or switch o the
circuit breaker in the fuse box.
Risk of burns!
The appliance becomes very hot. Never touch
the interior surfaces of the appliance or the
heating elements after operation. Always allow
the appliance to cool down before changing the
lamp. Keep children at a safe distance.
If the glass cover of the lamp is damaged,
!
it must be replaced.
Contact a specialist or customer service.

Changing the power cord

Warning
Risk of electric shock!
In the event of damage, the power cable may only
be replaced by an authorised specialist!

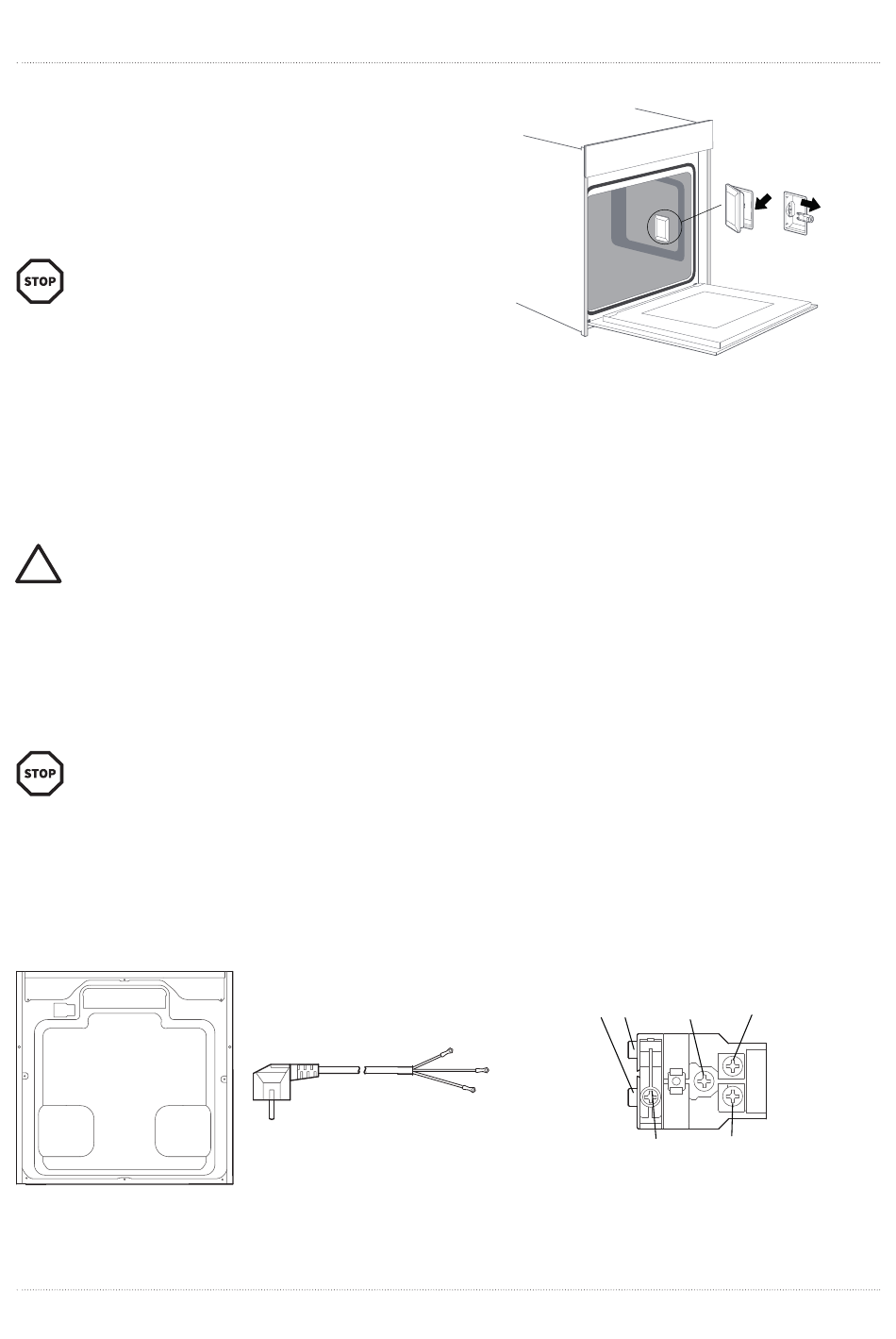

Position A shows the terminal box position on the back of
the outer case and it's closed.
A
back outer case
64
• Place a towel in the cold cavity to prevent damage.
• Remove the glass cover as shown in the figure.
• Pull out the lamp – do not turn it.
• Insert the new lamp, making sure that the pins are in
the correct position. Push the lamp in firmly.
• Replace the glass cover.
• Remove the towel and switch on the circuit breaker to
see if lamp switches on.
Steps:
• Cut off the power, use small flat screwdriver to open
two snap 1 and 2.
• Use a screwdriver to take off the screws 3, 4, 5 and 6.
• Change the power cord. Fix the new yellow/green wire
on 3, the brown wire on 4 and the blue wire on 5.
• Twist screw 6 to close the terminal box cover. The
changing is finished.
brown {L}
power cord blue {N}
1 2
yellow / green
6
terminal box
4
3
5
