Pvg 32/16 - Abmessungen - Danfoss PVG 32 Technische Informationen

Technische Informationen
Proportionalventilgruppe PVG 32
PVG 32-Kombinationen, Ventilblockabmessungen
PVG 32/16 – Abmessungen

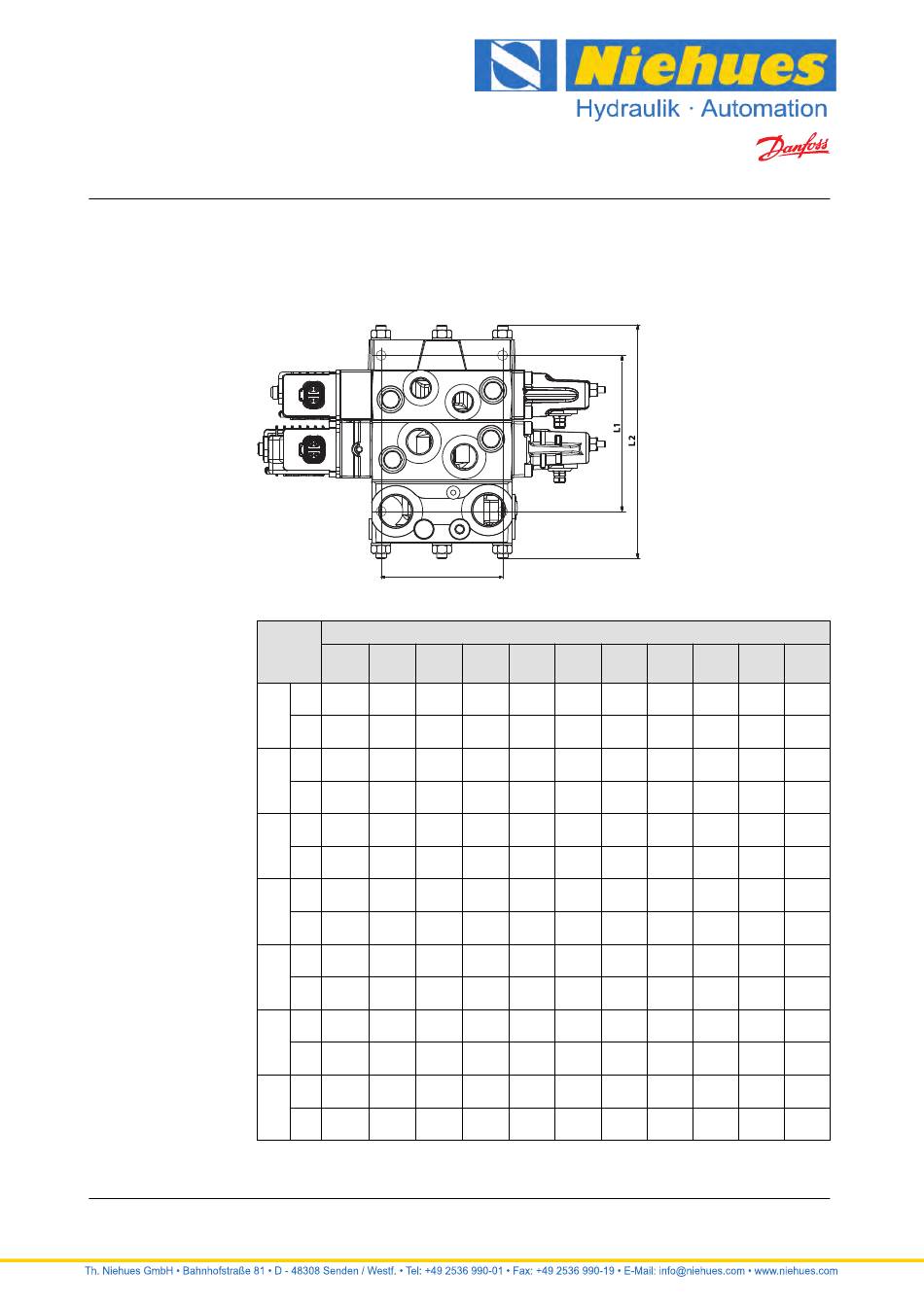

Tabelle von PVB 32- und PVB 16-Kombinationen, Übersichtstabelle Ventilblockabmessungen mit
dazugehöriger Zeichnung.
PVB 32/16-Kombination, Ventilblockabmessungen, mm [Zoll]
Anzahl
von PVB
32
(vertikal)
1
2
3
4
5
6
7
232 | © Danfoss | Dezember 2018
95 [3.74]
1 2 3 4
L1 122 162 202 242
[4,80] [6,38] [7,95] [9,53]
L2 189 238 262 311
[7,44] [9,37] [10,31] [12,24]
L1 170 210 250 290
[6,69] [8,27] [9,84] [11,42]
L2 238 287 311 360
[9,37] [11,30] [12,24] [14,17]
L1 218 258 298 338
[8,58] [10,16] [11,73] [13,31]
L2 287 336 360 409
[11,30] [13,23] [14,17] [16,10]
L1 266 306 346 386
[10,47] [12,05] [13,62] [15,20]
L2 336 385 409 458
[13,23] [15,16] [16,10] [18,03]
L1 314 354 394 434
[12,36] [13,94] [15,51] [17,09]
L2 385 434 458 507
[15,16] [17,09] [18,03] [19,96]
L1 362 402 442 482
[14,25] [15,83] [17,40] [18,98]
L2 434 483 507 551
[17,09] [19,02] [19,96] [21,69]
L1 410 450 490 530
[16,14] [17,72] [19,29] [20,87]
L2 483 527 551 600
[19,02] [20,75] [21,69] [23,62]
