ILC 191 ME/X
Steuerungen mit applikativer
(programmierter) Redundanz
Netzwerkredundanz mittels
Medienredundanz-Protokoll
MRP
PROFINET-Devices mit
Phoenix Redundancy Layer
16
PHOENIX CONTACT
2.2.4

Applikative Systemredundanz mit dem Inline-Controller

Folgendes Bild zeigt ein Beispiel für die applikative Systemredundanz. Im Beispiel ist ein
PROFINET-Device mit Steuerungsfunktion (ILC 191 ME/AN) mittels Switch mit einem
PROFINET-Netzwerk verschaltet. Auf beiden überlagerten PROFINET-Controllern laufen
identische Anwendungsprogramme. Zwecks Synchronisierung sind beide PROFINET-
Controller mittels Ethernet-Verbindung per Switch verschaltet. PROFINET-Controller A ar-
beitet als Primary-Controller, PROFINET-Controller B arbeitet als Backup-Controller.
A
RUN/PROG
DISPLAY
STP
MRESET
LNK
LNK
I/O
RFC 470 PN 3TX
L AN1.1
LAN1. 2
Ord.No.2916600
ACT
ACT
LNK
USB
LAN2
24VDC
+
-
C
ETHERNET
PROFINET

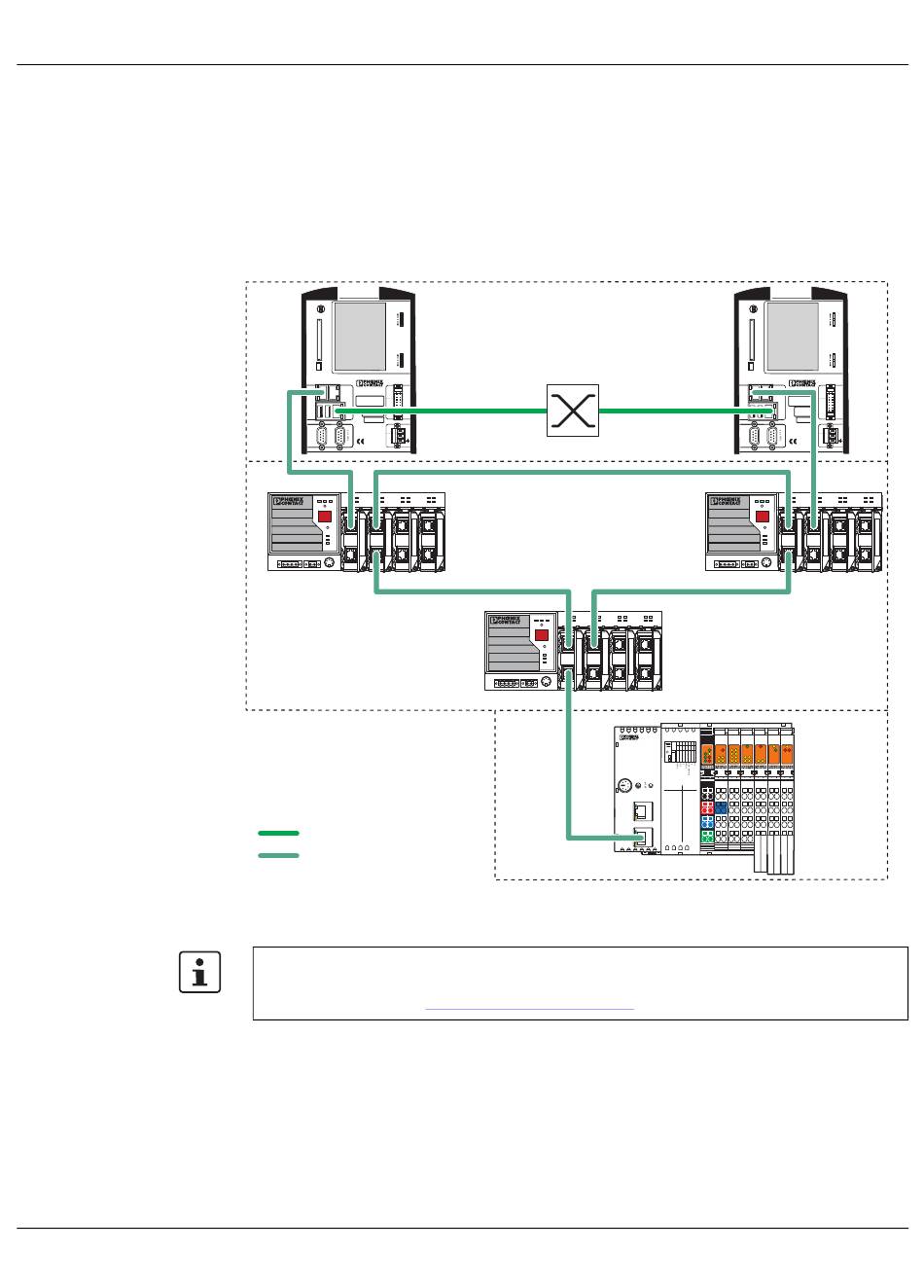

Bild 2-5
Applikative Systemredundanz – Beispiel
Weiterführende Informationen zur applikativen Systemredundanz finden Sie im An-
wenderhinweis AH DE APPLICATIVE SYSTEM REDUNDANCY. Diesen Anwenderhin-
weis können Sie unter
phoenixcontact.net/products
A
Primary-Controller (im Beispiel: Remote Field Controller RFC 470 PN 3TX)
B
Backup-Controller (im Beispiel: Remote Field Controller RFC 470 PN 3TX)
C
Managed Switches
D
PROFINET-Device mit Steuerungsfunktion (im Beispiel: ILC 191 ME/AN mit
PROFINET-Device-Funktion und Phoenix Redundancy Layer)
ETHERNET
PROFINET
C
D
B
RUN/PROG
STP
MRESET
LNK
LNK
RFC 470 PN 3TX
L AN1.1
LAN1. 2
Ord.No.2916600
ETHERNET
ACT
ACT
LNK
USB
LAN2
C
D-32825 Blomberg
ILC 191 ME/AN
RDY
FAIL
BSA
PF
Order-No.: 2700074
FR
E
I1
I2
UA
O1 O2
HW/FW: 00/100
UL FF
I3
I4
MAC Addr. 8Block:
US DF
Q1 Q2
I5
I6
P1 P2
xx. xx. xx. xx
UM SF
Q3 Q4
I7
I8
D1 D2
TxD RxD
AUTOMATIONWORX
X1
MRESET
RESET
PWR
Slot
Voltage
RUN/PROG
PRG
PWR
24 V
LNK
DO
24 V
DI
24 V
X2.1
PWM
5 V
ACT
RS485/422
LNK
AI
0 - 10 V
X2.2
A0
0 - 10 V
ACT
herunterladen.
DISPLAY
I/O
24VDC
+
-
8607_de_03
