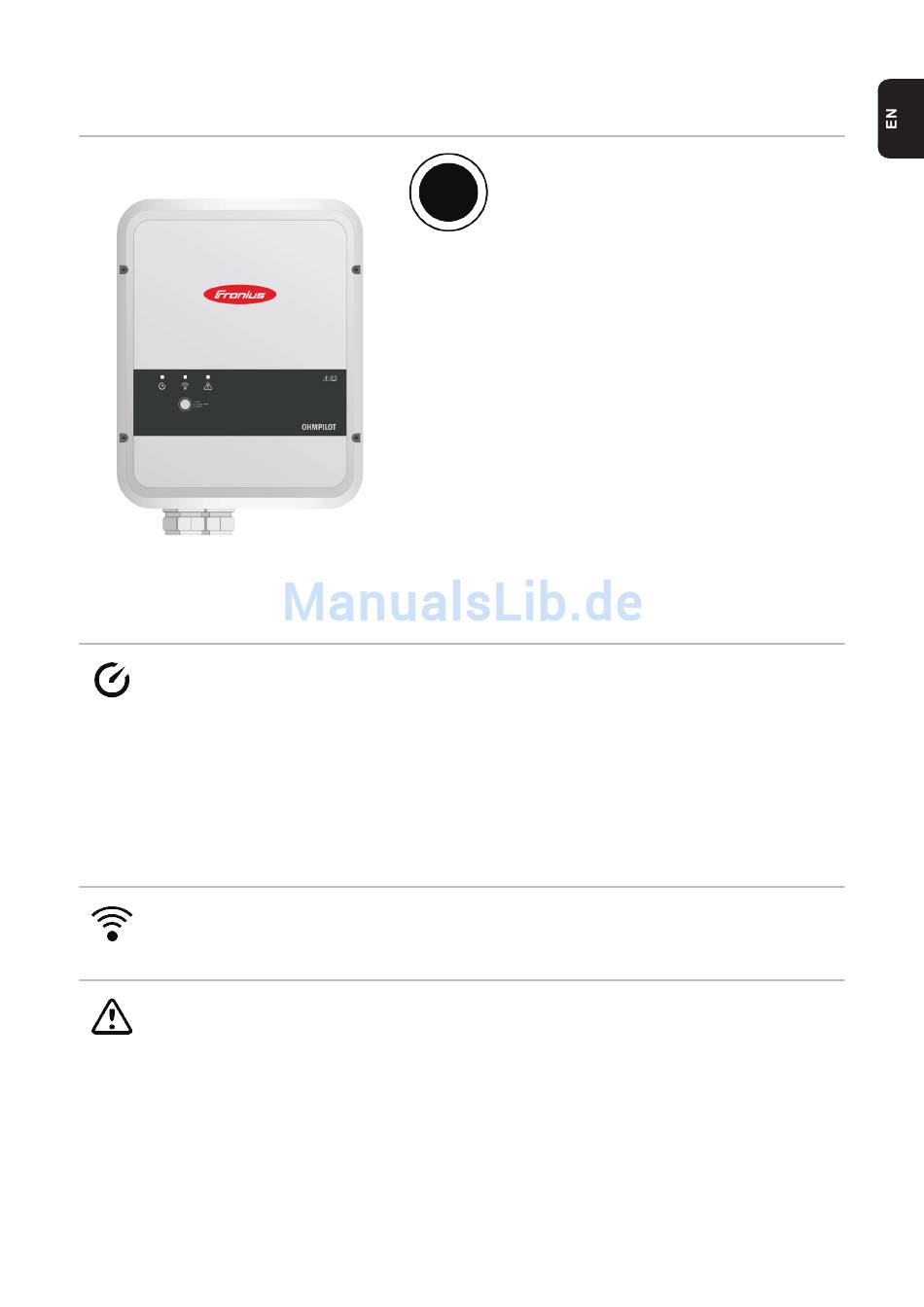

Indications/Controls on the Device

Green LED
Heater indication
Connection indica-
tion LAN / WLAN
Blue LED
Red LED
Error indication
1x WPS
2x ACCESS POINT
3x BOOST
Press 1x WPS (Wi-Fi Protected Setup) is opened
for 2 minutes or until successful pairing
with the router. By pressing the WPS
button the router, the WLAN password is
transmitted to the Ohmpilot.
Press 2x WLAN access point is activated for 30
minutes so that settings can be implement-
ed on the Ohmpilot via the Fronius Solar
web app.
Press 3x Boost mode - dimmer level is activated for
4 hours at 100%, L2 and L3 are switched
through. This may result in electricity being
sourced from the grid.
Press Ohmpilot is returned to standard operating
again mode, boost mode, access point or WPS
are deactivated.
Unlit No power supply to the
Ohmpilot
Flashing green The faster the flashing frequency, the
greater the heat output. At 0 W heat output
the LED flashes slowly, at full output it
flashes quickly.
Flashing green 2x The output from the heating element is
measured and it is detected whether a
1-phase or 3-phase heating element is
connected.
Steady green Target temperature undercut or legionella
prevention system active (full heat output).
Unlit No connection
Flashing blue 1x WPS (Wi-Fi Protected Setup) open
Flashing blue 2x WLAN access point open
Steady blue Connection with network
Unlit No error
Flashing red 1x No connection to the inverter
Flashing red 2x Temperature measurement faulty
Flashing red 3x Heating element faulty
Flashing red 4x Ohmpilot faulty
Flashing red 5x Target temperature not reached
A detailed description of the error is provided in Solar Web.
