Wall Mounting; Safety; Selecting Wall Plugs And Screws; Recommended Screws - Fronius Ohmpilot Bedienungsanleitung

Wall Mounting

Safety

Selecting Wall IMPORTANT! Depending on the surface, different types of fixings are required for
Plugs and mounting the Ohmpilot. The fixings are therefore not included in the scope of supply for
Screws the Ohmpilot. The fitter is personally responsible for selecting the correct fixings. The
Ohmpilot must be mounted with four screws. Ensure that the screws are tight and that
the wall is stable. .
Recommended To install the Ohmpilot, the manufacturer recommends the use of steel screws with a
Screws diameter of 4 - 6 mm.

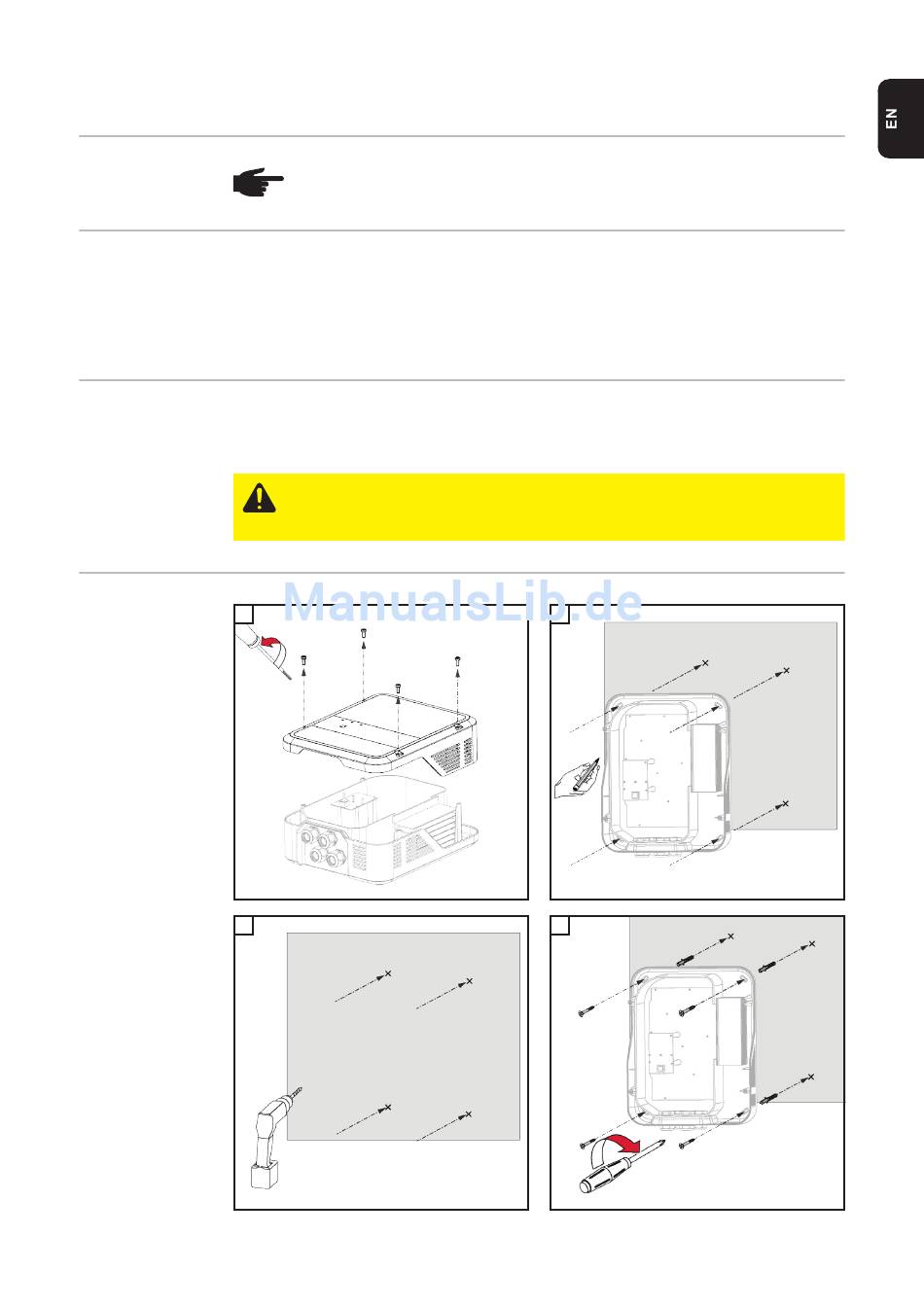

Installation
1
Instructions
3
NOTE! The IP 54 protection class only applies if the cover is firmly screwed to
the back.
CAUTION! Risk of damage to the Ohmpilot due to dirt or water on the termi-
nals and in the electronics. When drilling, ensure that the terminals and elec-
tronics do not become dirty or wet.
2
4
63
