Fronius Smart Meter

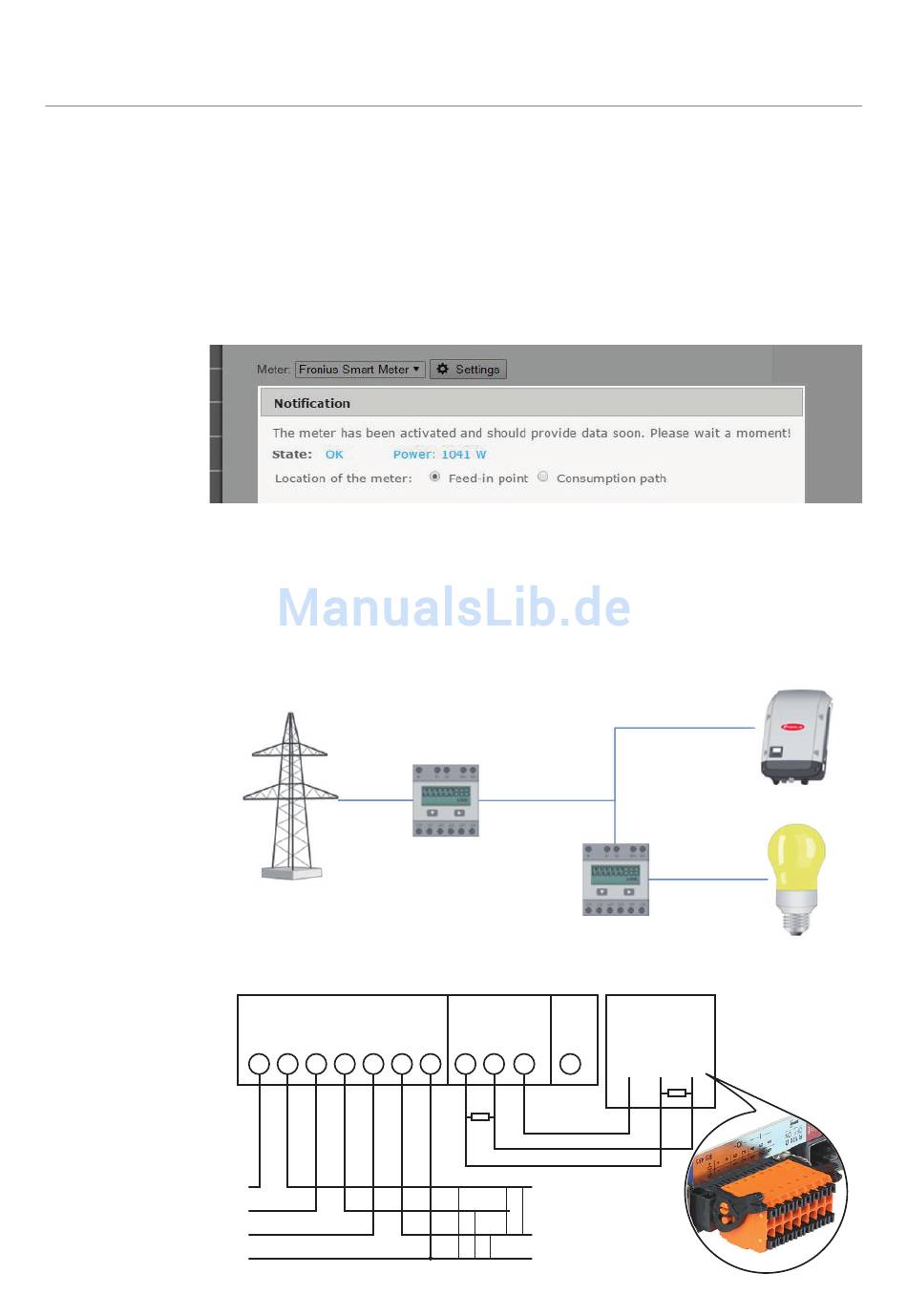

Integrating the A Fronius Smart Meter is required for operation of the Ohmpilot, so that the surplus
Fronius Smart energy can be measured. For integration of the Fronius Smart Meter, an inverter with
Meter Datamanager 2.0 and software version V3.8.1-x or higher and/or a Datamanager Box
(from software version 3.8.1-x) is necessary. It must be configured on the Datamanager
whether the Fronius Smart Meter is installed at the feed-in point or in the consumption
branch. The setting must be implemented on the webpage under the "Meter" tab for the
Datamanager.
Further information on the Datamanager can be found in the "Fronius Datamanager 2.0"
Operating Instructions
(1a)
(1b)
How to connect the Fronius Smart Meter to the Fronius Datamanager 2.0:
64
(1)
Meter position at feed-in point
The power and energy fed in are measured. Consumption is determined based on
these values and the system data.
Meter position in consumption branch
The power and energy consumed are measured directly. The power and energy
fed in are determined based on these values and the system data.
Fronius Smart Meter
INPUT
1 3 4 6 7
L1
L2
L3
N
(1a) (1b)
(1a)
OUTPUT
RS 485
DT/PE
Rx / x GND T
-
+
9 11 A B C D
120 Ω
X
LOAD
X
X
X X X
(1b)
Fronius
Datamanager
2.0
- D+ D-
ON
