7.

DISMOUNTING

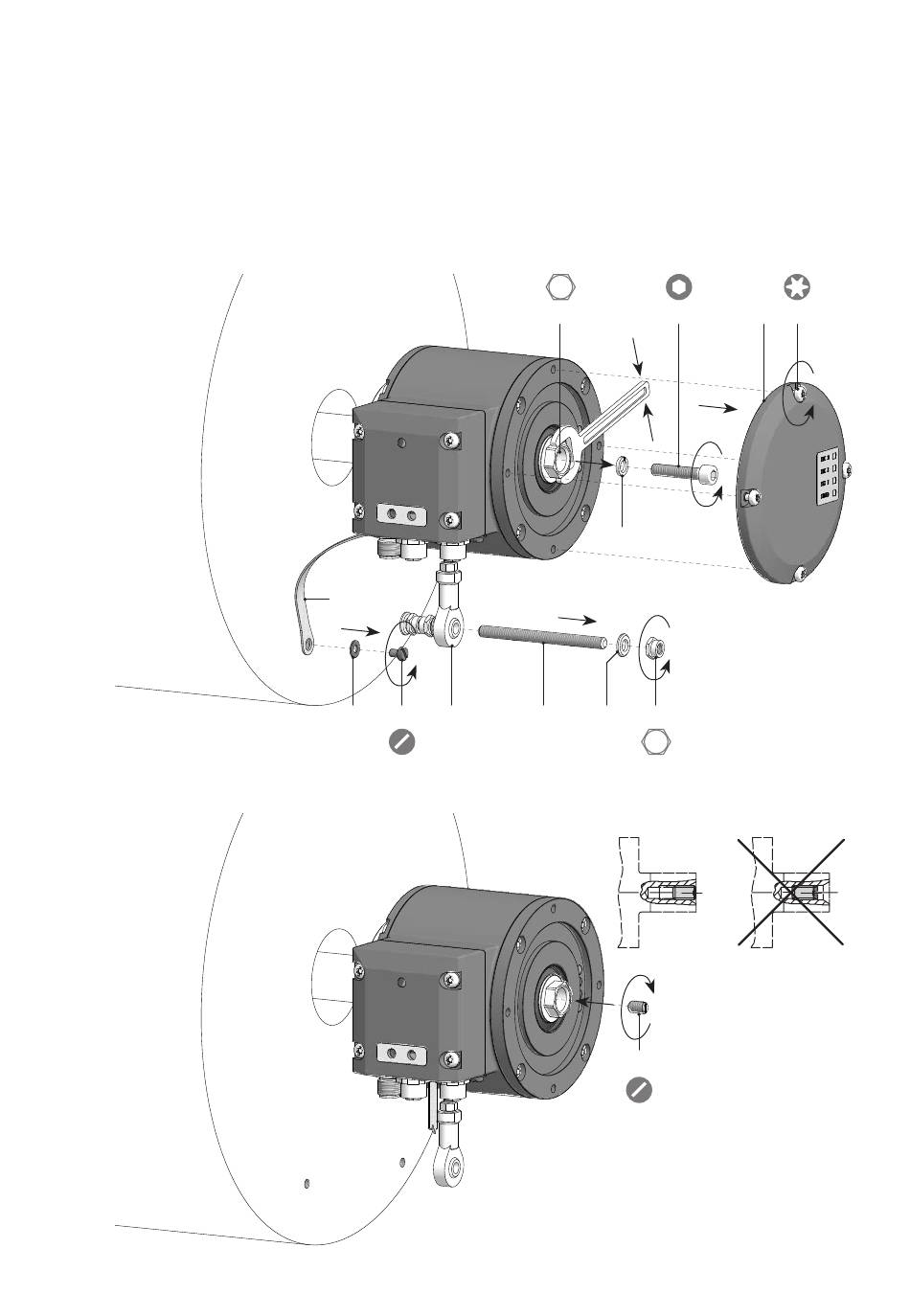

7.1 Version with blind hollow shaft or cone shaft
Pictures showing the version with blind hollow shaft� The dismounting steps be identical at
the version with cone shaft�
7.1.1 Step 1
7.1.2 Step 2
MB248EN - 11171699, 16A3, Baumer_HMG10-PROFINET_II_EN
DISMOUNTING / VERSION WITH BLIND HOLLOW SHAFT OR CONE SHAFT
5
10e 10d
1�6x8 mm
17 mm
7a
11b
9 10a 10b 10c
5 mm
11a 2 3
10 mm
11c
0�8x4 mm
TX 20
22/29
