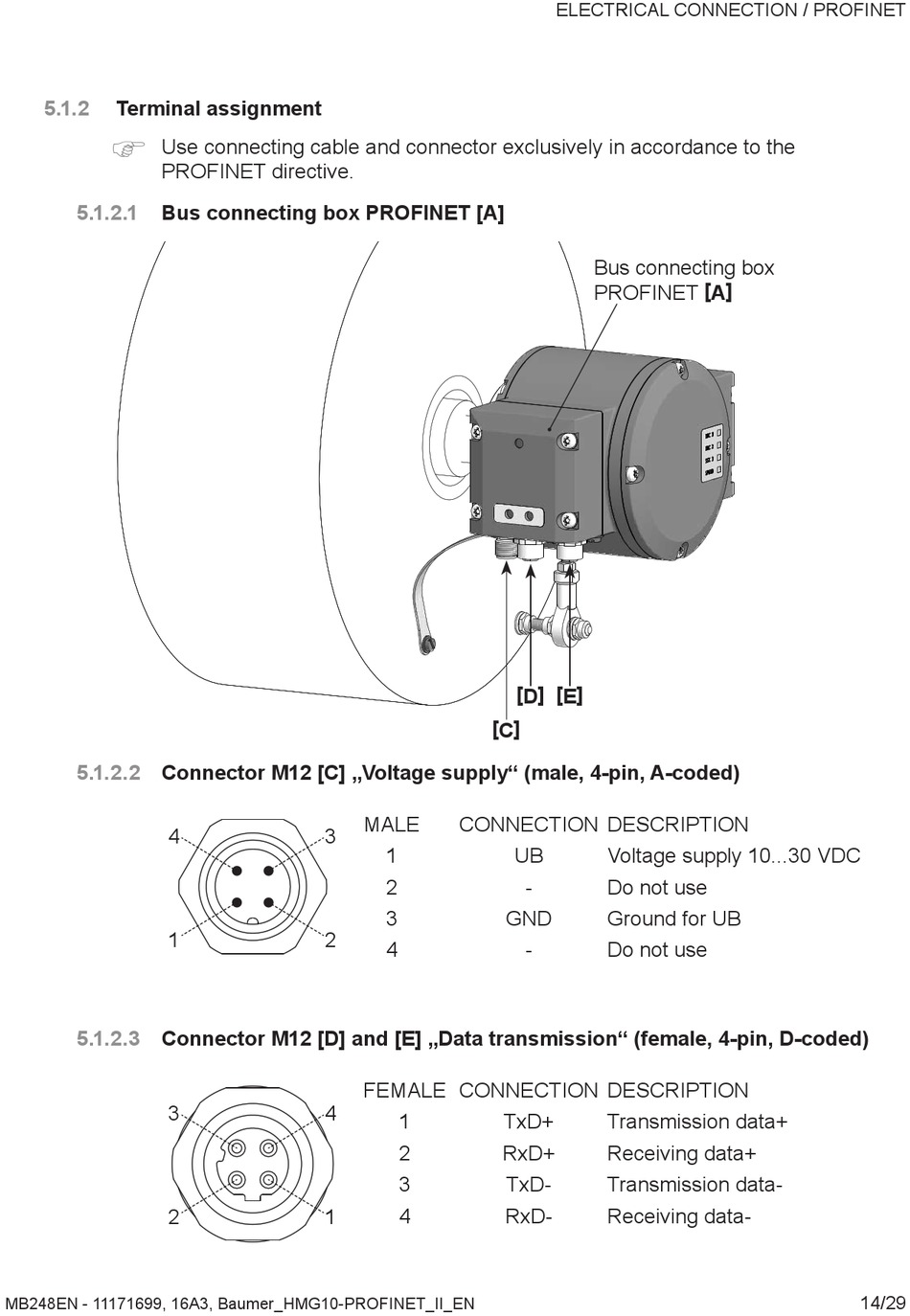

5.1.2 Terminal assignment
)
Use connecting cable and connector exclusively in accordance to the
PROFINET directive�
5.1.2.1 Bus connecting box PROFINET [A]
5.1.2.2 Connector M12 [C] „Voltage supply" (male, 4-pin, A-coded)
4
1
5.1.2.3 Connector M12 [D] and [E] „Data transmission" (female, 4-pin, D-coded)
3
2
MB248EN - 11171699, 16A3, Baumer_HMG10-PROFINET_II_EN
[ C ]
MALE CONNECTION DESCRIPTION
3
1
2
3
2
4
FEMALE CONNECTION DESCRIPTION
4
1
2
3
4
1
ELECTRICAL CONNECTION / PROFINET
Bus connecting box
PROFINET [ A ]
[ D ] [ E ]
UB Voltage supply 10���30 VDC
- Do not use
GND Ground for UB
- Do not use
TxD+ Transmission data+
RxD+ Receiving data+
TxD- Transmission data-
RxD- Receiving data-
