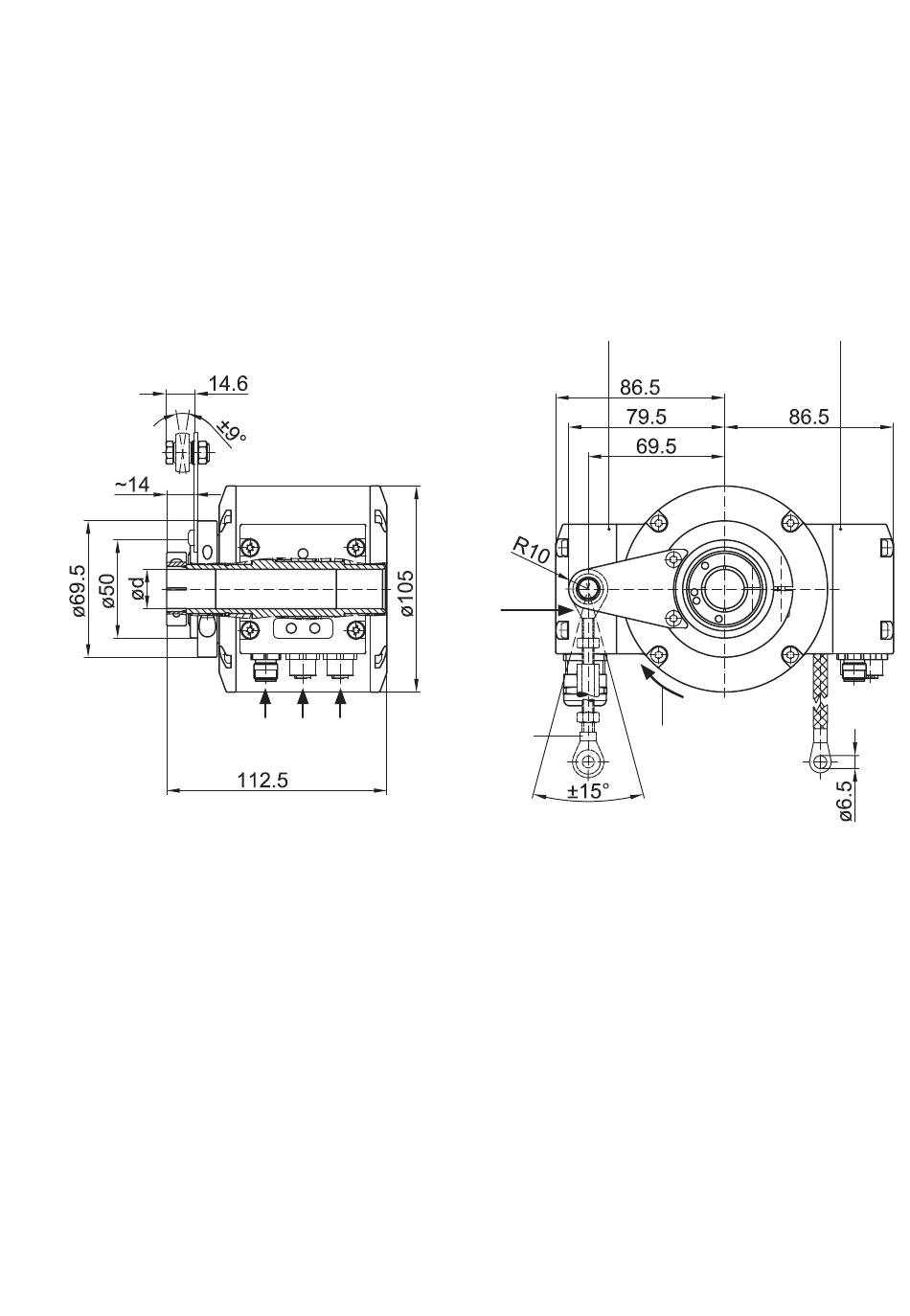

6.2 Through hollow shaft
All dimensions in millimeters, unless otherwise stated�
MB248EN - 11171699, 16A3, Baumer_HMG10-PROFINET_II_EN
ød = 16 , 20
H7 H7
[ C ] [ D ] [ E ]
DIMENSIONS / THROUGH HOLLOW SHAFT
Speed switch
Additional output
[ B ]
Accessory
PROFINET [ A ]
Positive
rotating direction
