MOUNTING / POSITIONING THE TORqUE PLATE
4.

MOUNTING

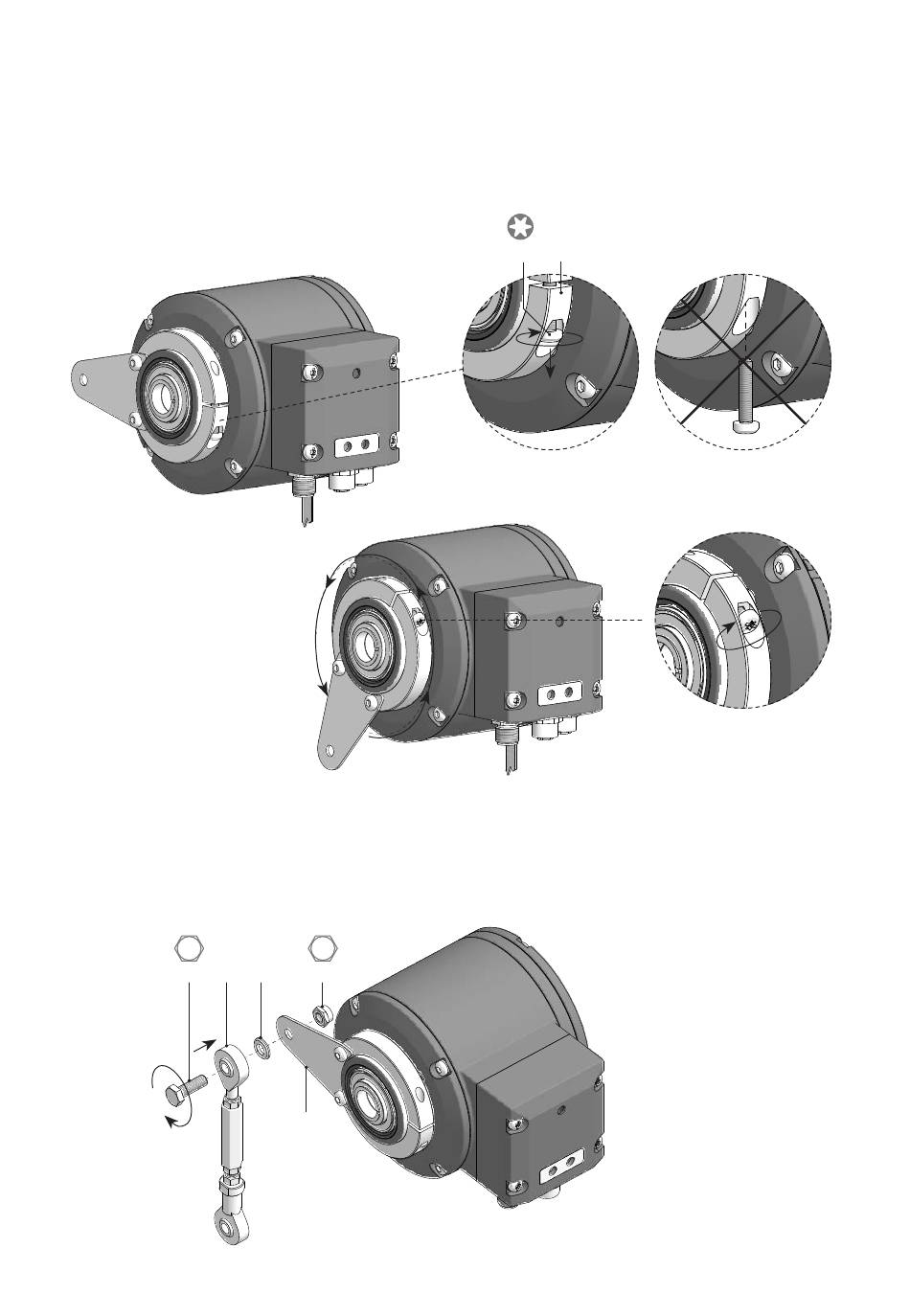

4.1 Positioning the torque plate
4.2 Mounting the torque arm at the encoder
» Note the mounting instructions for the torque arm in
10 mm
7/29
360°
10 mm
6d 9 6e 6f
6c
TX 20
6b 6a
Loosen the screw
MB248EN - 11171699, 16A3, Baumer_HMG10-PROFINET_II_EN
Tighten the screw
Mt = 2-3 Nm
section 4.4, page 11�
