If affixing the assembled Irrigator and Bracket to the Floor Stand, continue with the following steps . If mounting
to an IV pole, skip the following steps and go to the next section, Set up the Pole Clamp, below .
7. Locate the two mounting bolts on the Floor Stand and then locate the two keyholes in the Bracket . Align the
Bracket keyholes with the mounting bolts and slide down into place (see Figure 4) .
8. Option for vertical display: prior to fully seating the Irrigator into place on the mounting bolts, rotate the
Irrigator forward along keyhole guide until seated (see Figure 5) .

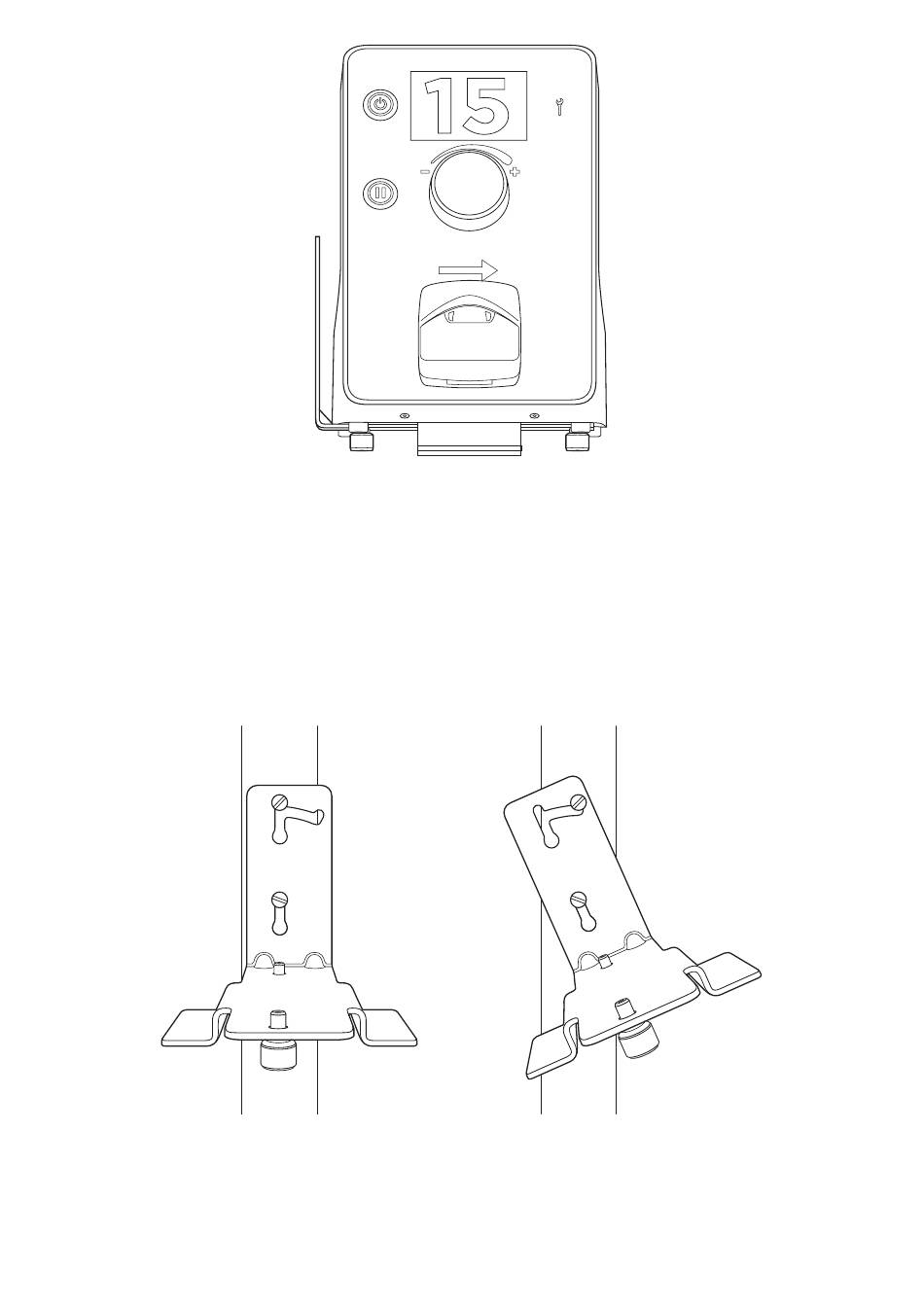

Figure 3
Figure 4 Figure 5
