Dimension sheet - VARIVENT
/ VARINLINE
housing connection T and T-S

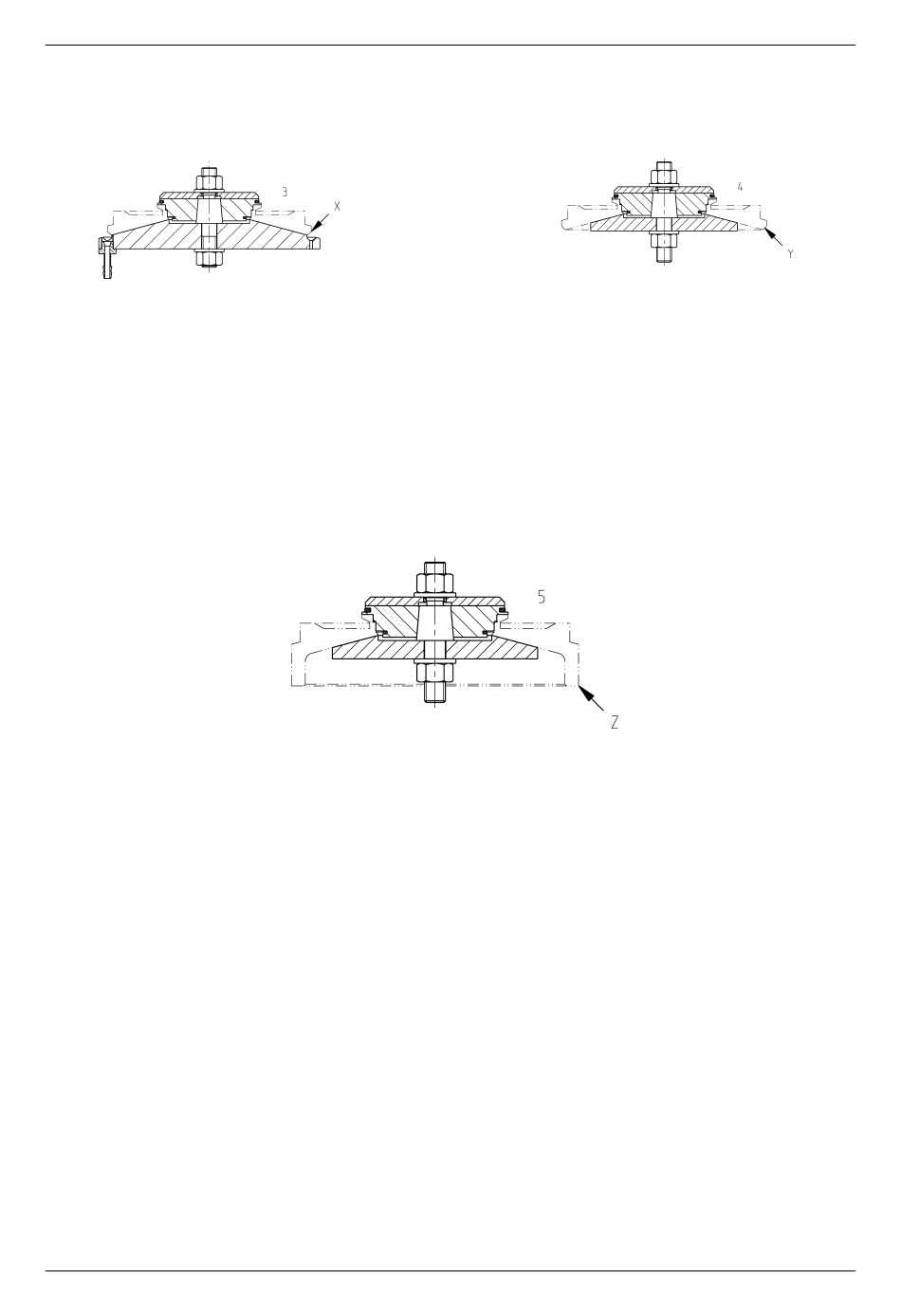

Fig.3:
4=welding jig for housing connection T Y=
Fig.2:
3=welding jig / X=1. Welding
2.welding
Fig.4:
5=welding jig for housing connection flange T-S / Z=welding
