Function description for self-retracting lifelines with rescue lifting device
through crank mechanism (type HRA) according to EN 1496:2007 - class B
Rescue application:
Crank handle with
fold-out handle
seal
Locking pin with
pear handle
Guide bushing
Illus. 19
Retractable cable
Required operations:
1. Open the seal
2. Unfold the crank handle, see illustration 16.
3. Pull out the locking pin with pear handle (see illustration 17) (action 1), until the crank handle axis
(action 2) pops out audibly and visibly (illustration 18).
4. Rotate the crank handle back and forth until the gear has engaged. The locking pin jumps back
into its initial position (action 3).
5. The "rescue function" of the HRA device is established.
6. The casualty can now be cranked up and down.
Note: Devices with rescue hoisting crank may only be used with the corresponding holders
(holding plates) for IKAR fastening facilities EN 795.
After successfully using the rescue hoisting device, the HRA device must always be checked by an
expert trained by the manufacturer.
Illus. 16
Hook
ENGLISH
Illus. 17

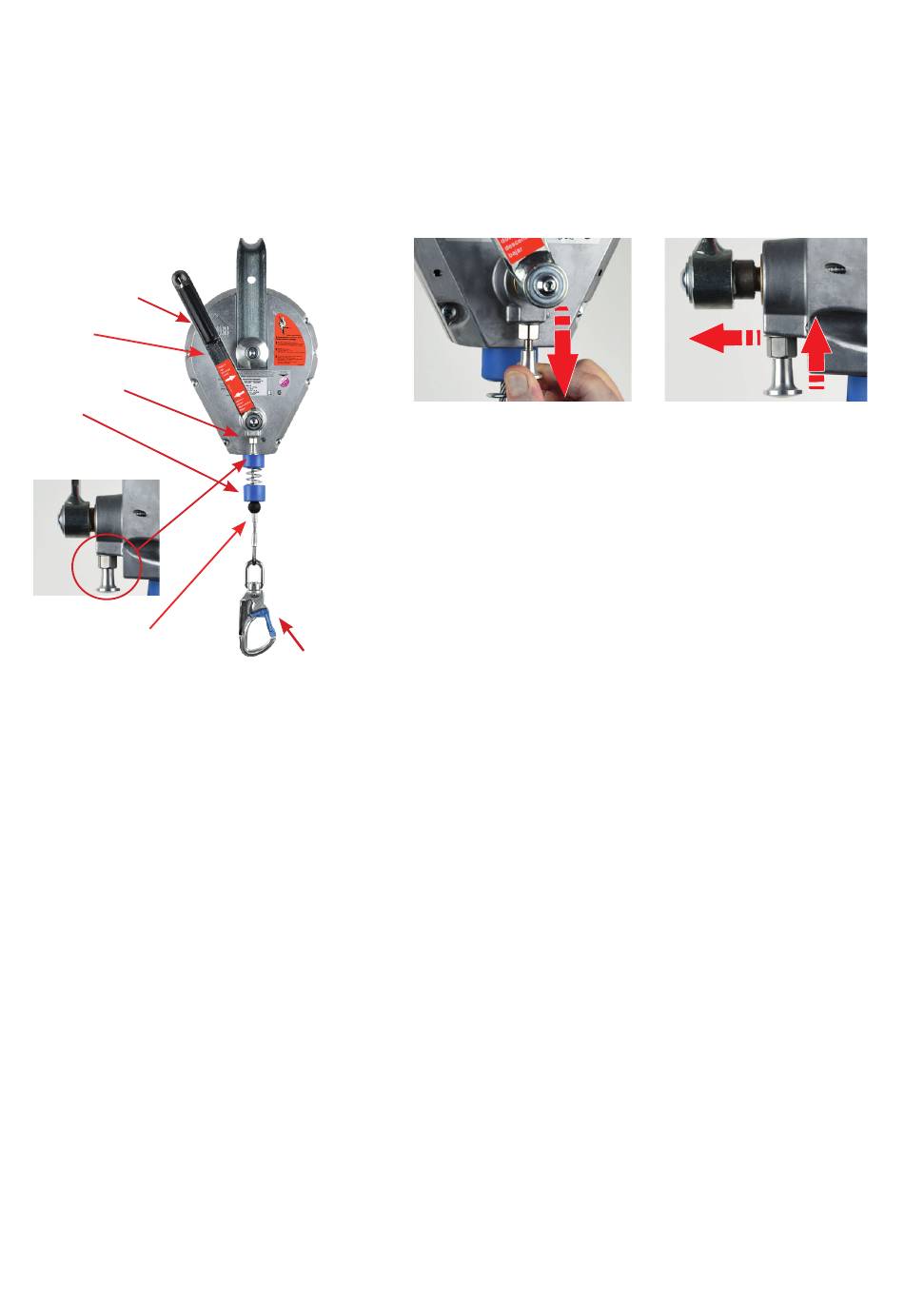

Illustration 16 /19 shows the IKAR self-retracting
lifeline HRA with crank position set to the
"self-retracting lifeline" function!
14
