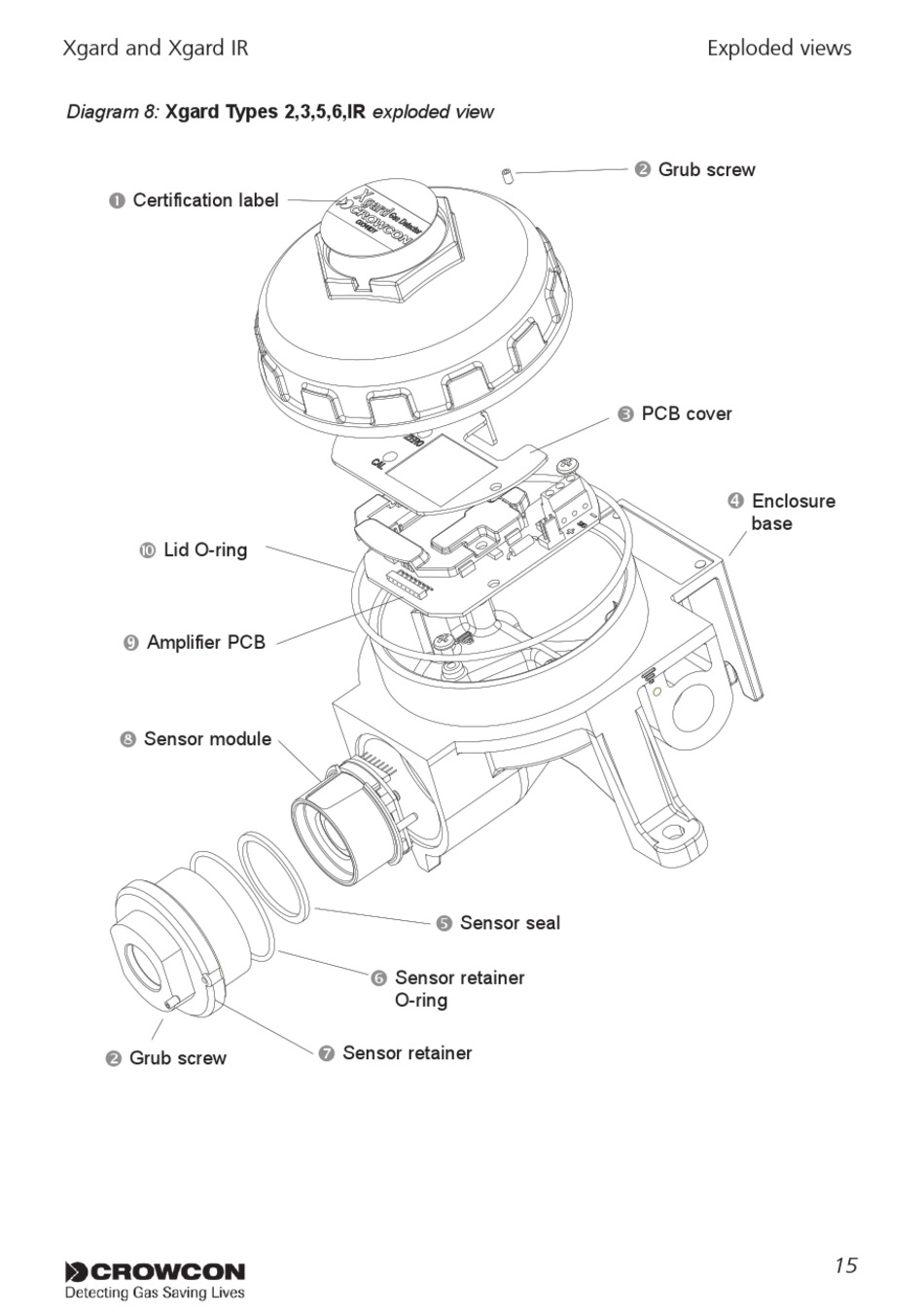

Diagram 8: Xgard Types 2,3,5,6,IR exploded view
Certification label
Œ
Lid O-ring

Amplifier PCB

Sensor module

Grub screw

Sensor seal

Sensor retainer
‘
O-ring
’ Sensor retainer
Exploded views
Grub screw

PCB cover
Ž
Enclosure

base
