Xgard and Xgard IR

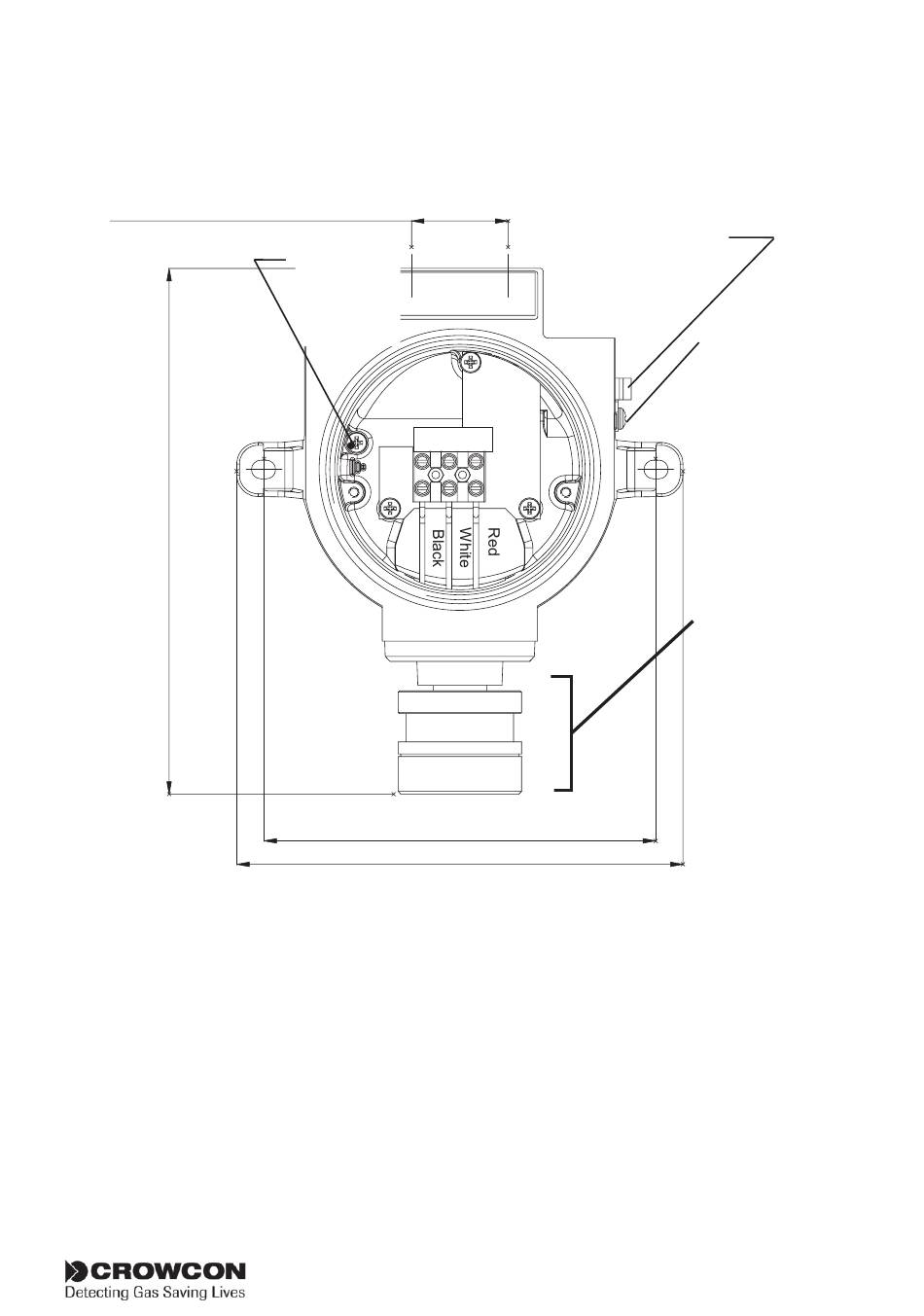

Diagram 6: Xgard Type 4 dimensioned view

196 mm
36 mm
M6 / ¼"
ΠInternal
grounding
terminal
(earth)
+ SIG -
+ S I G -
146 mm
166.3 m
Height 111
Hauteur 111 mm
Höhe 111 mm
Altura 111 mm
Hoogte 111 mm
Polish height 111 mm
Altura 111 mm
Dimensions
M20, M25,
1/2", 3/4" NPT

Additional
external
grounding
terminal
(earth)
Ž The
detector head
and sensor
retainer
are bonded
together
and must be
replaced as
a unit.
11
