saw blades, cutters or cutter knives
without delay.
− Hazard generated by an unstable
stand of the machine:
Use suitable supports on both sides
of the machine when working long
stock. Avoid adverse body positions.
Ensure firm footing and keep your
balance at all times.
− Hazard
generated
objects in the machine:
Before switching on ensure that no
foreign objects (e.g. setting tool) are
inside the machine.
− Danger! Drawing-in/trapping haz-
ard!
Assume proper operating position:
Take care that no parts of the body
or clothing can get caught and
drawn in by the rotating cutterblock
(do not wear neck ties and garments
with wide sleeves; contain long hair
with a hairnet).
− Risk of injury by inhaling wood
dust:
Dust of certain timber species (e.g.
oak, beech, ash) can cause cancer
when inhaled. Always use a dust
collector. The dust collector must
meet the following requirements:
− fitting the outer diameter of the
suction port
− air volume ≥ 550 m 3
− vacuum
at suction
machine ≥ 740 Pa;
− air speed at suction port of
machine ≥ 20 m/s.
− Risk of injury by inadequate per-
sonal protection:
When operating the machine, wear:
− dust respirator;
− hearing protection;
− safety goggles.
2.3 Symbols Used Through-
out These Instructions
Danger!
Indicates risk of
injury or severe
damage.
Risk of electric shock!
Risk of personal injury by elec-
tric shock.
Danger! Drawing-in/trapping
hazard!
Risk of personal injury by body
parts or clothing being drawn
into the rotating saw blade.
Caution!
Risk of material damage
Note:
Supplementary information

3. Special Product Features

•
One machine – four operating
modes:
− surface planer
− thicknesser
− circular saw
− spindle moulder
•
Wide range of accessories.
by foreign
•
Latest technology for perfect per-
formance.
4. Transportation and
Installation
4.1

Machine Transportation

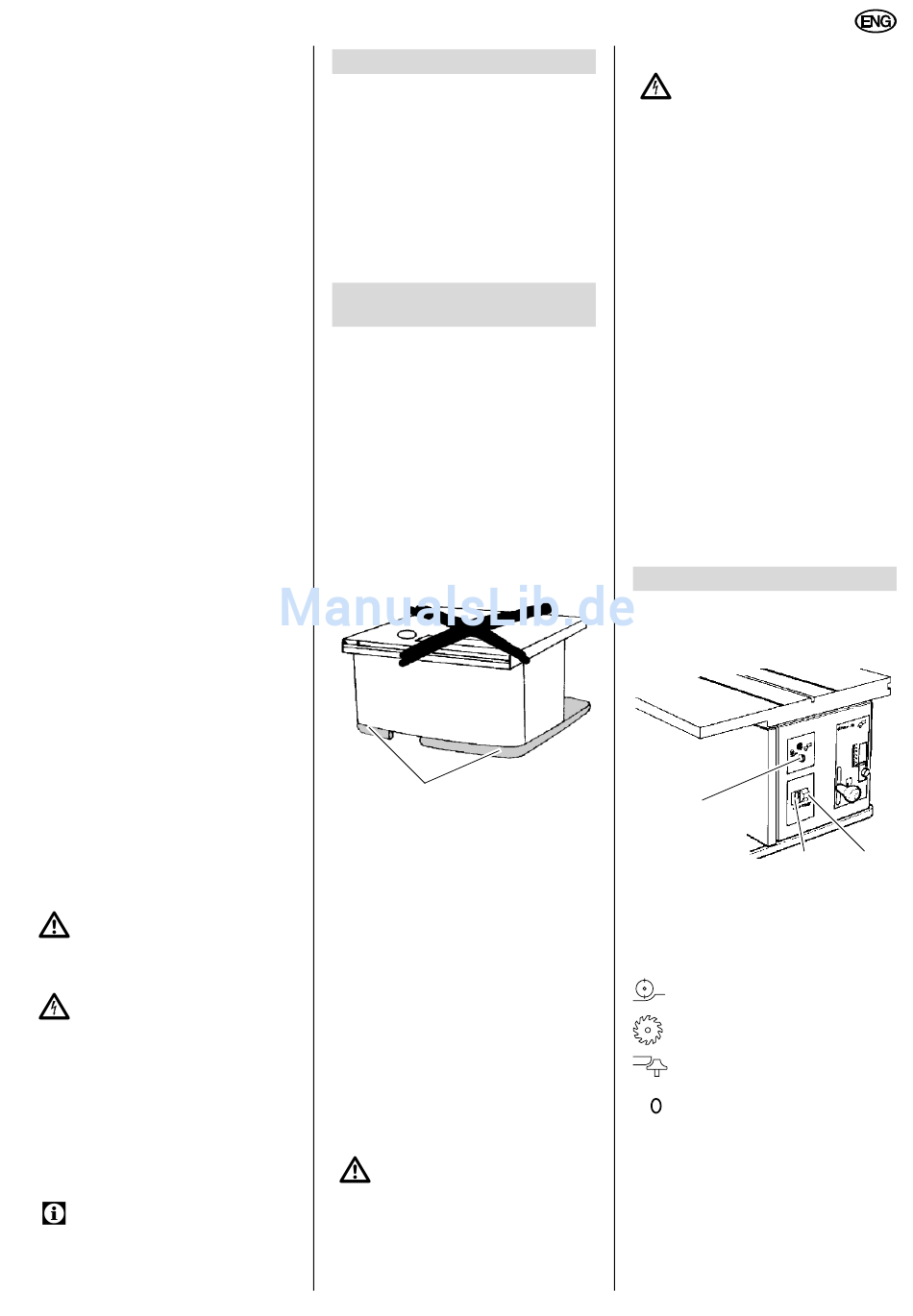

The machine can be transported by two
means:
− on a pallet by a fork lift or pallet
truck.
− by several persons. To do so the
machine is carried at the lower
frame (1).
Caution!
Do not carry the machine hold-
ing it at the table, it is not designed to
withstand the tensile load by the
machine weight.
/h;
port of
4.2

Machine installation

1. Floor space required
− at least 3 m x 4 m.
Depending on workpiece dimen-
sions the required space may be
more.
personal
− sufficient load bearing capacity
material
− level
− even
− dry
− non-slip.
2. For optimal operating conditions
(dust generation, working height,
stability and mobility) the machine
can be mounted on the mobile work-
stand with build-in dust collector
(optional accessory).
Risk of squashing between
combination
workstand!
1
machine and
ENGLISH
4.3

Mains Connection

Danger! Electrical hazard.
Operate in dry environment
only.
Operate machine only on a power
source matching the
requirements (see also "Technical
Specifications"):
− protected by a residual current
operated device (RCD) of 30 mA
capacity;
− outlets properly earthed;
− 5-wire three-phase outlets with
neutral lead;
− when a dust collector is used it
must also be properly earthed.
Position power supply cable so it
does not interfere with the work and
is not damaged.
Protect power supply cable from heat,
aggressive liquids and sharp edges.
Use only extension cables of suffi-
cient lead cross-section.
Do not pull on power supply cable to
unplug.

5. Operating Elements

On/Off switch
•
To start = press START button (2).
•
To stop = press STOP button (3).
4
3
Operating mode selector
The operating mode selector (4) is actu-
ated by the key supplied. The following
operating modes can be selected:
Surface/thickness planer mode
Circular saw mode
Spindle moulder mode
OFF position
If the key is removed in the OFF posi-
tion, the machine is protected against
unauthorized use.
Emergengy stop switch
In any operating mode the emergency
stop switch (5) shuts the machine down
immediately.
following
