ENGLISH
1. Adapt all safety devices and operat-
ing elements to the workpiece as
illustrated.
2. Work the workpiece.
•

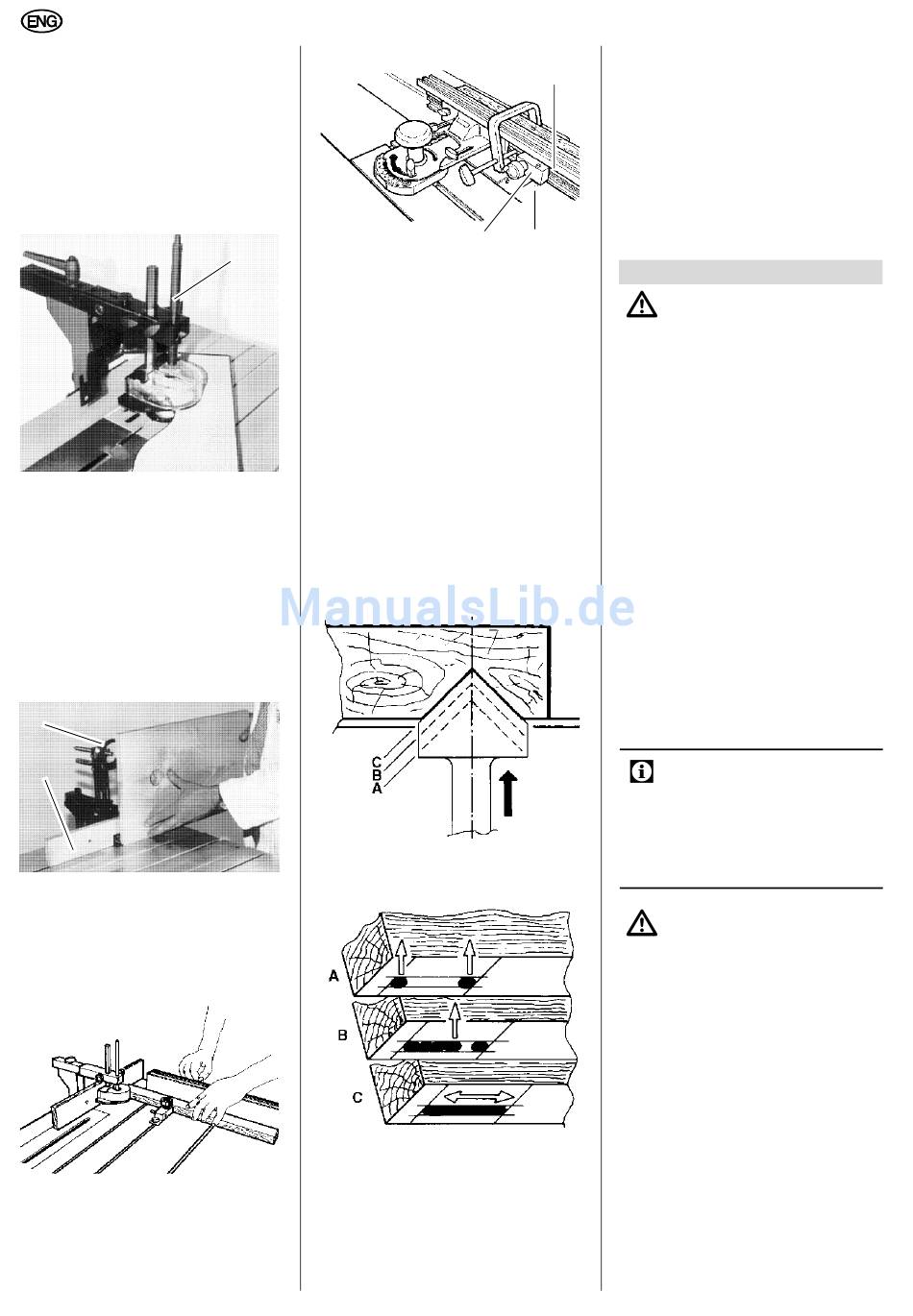

Moulding curved stock:
1. Remove the wooden cutter fence.
2. Adjust the centering pin (83) so that
the workpiece is kept at the correct
distance to the cutter.
3. Adapt all safety devices and operat-
ing elements to the workpiece as
illustrated.
4. Work the workpiece.
•
Moulding the face of a large
panel:
1. Loosen the knurled thumb screw
and swing the cutter guard (84) on
the cutter fence back.
2. Guide the workpiece along the cut-
ter fence (85) as illustrated.
84
85
3. Work the workpiece.
•
Grooving:
1. Install fence on the sliding carriage.
2. Clamp workpiece as illustrated:
Moulding end grain:
26
Straight edge moulding:
83
3. When moulding along the grain the
stock clamp can be used as a stop
for the sliding carriage:
Slide stock clamp (86) in the guide
extrusion of the fence (87) as illus-
trated and push pin (88) down.
When the pin contacts the edge of
the table, the stop is set and the
stock clamp can be locked.
4. Adapt all safety devices and operat-
ing elements to the workpiece.
5. Work workpiece by moving the slid-
ing carriage.
•
Set-in work:
With set-in work, do not mould the work-
piece to the full depth required in the first
pass. Make several passes. Limit the
height adjustment of the cutter spindle
with the stop.
1. Adapt all safety devices and operat-
ing elements to the workpiece.
2. Cut a hole at each end of the slot.
3. Cut further holes inbetween, at a
distance approx. equal the width of
the slot.
4. Remove the remaining material by
moving the workpiece along the cut-
ter fence.
5. Make further passes to cut the slot
to the desired depth.
Tips and Tricks
•
87
•
•
86 88

10. Care and Maintenance

− Switch machine OFF.
− Unplug.
− Wait until machine has come to a
Replace defective parts, especially of
safety devices with genuine replace-
ment parts only. Parts not tested and
approved by the equipment manufac-
turer can cause unforeseen damage.
After all servicing:
− Check to see that all safety
− Make sure that no tools or other
Repair and maintenance work other
than described in this section should
only be carried out by qualified speci-
alists.

10.1 Replacing Cutter Knives

by
− reduced planing performance;
− increased risk of kickback;
− motor overloads.
from the cutter knives! Wear gloves
when changing cutter knives.
To remove the cutter knives:
1.
2.
3.
4.
Always make several passes if a
large amount of material needs to
be removed.
Make trial cuts on a piece of scrap
before working the actual work-
piece.
When working complex shapes,
make jigs and guides to guide the
workpiece properly.
Danger!
Prior to all servicing:
complete stop.
devices are operational.
parts remain on or
machine.
Note:
Worn cutter knives are noticeable
Danger!
Risk of personal injury by cuts
Unplug power cable.
Remove the fence.
Remove the cutterblock cover
Turn the three square-head bolts
(89) of the cutter knife lockbar (90)
all the way in (wear gloves!).
in the
