2.2

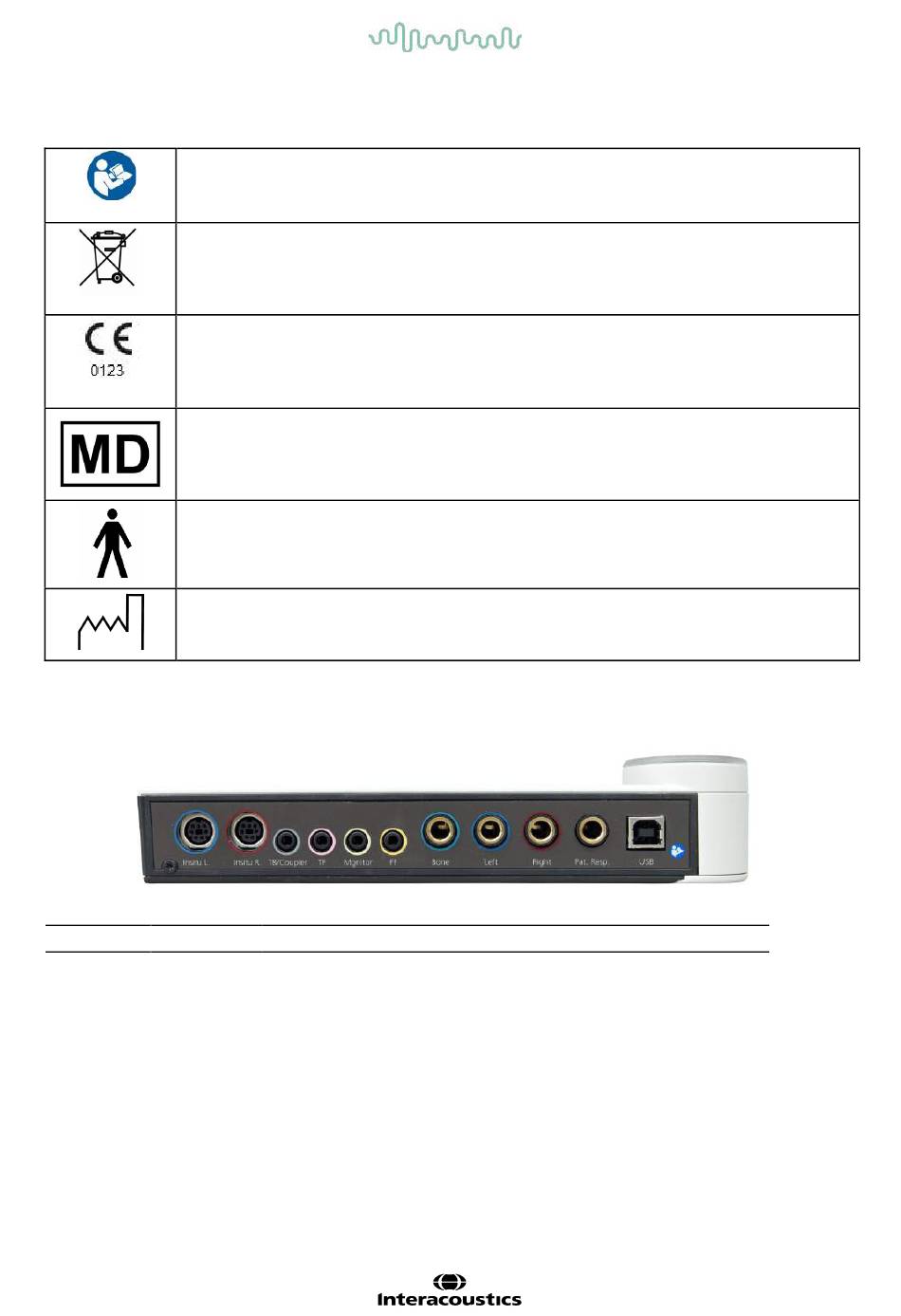

Marking

The f ollowing marking can be f ound on the instrument:
Ref er to instruction manual
Please ref er to warning and pre-cautions
WEEE 2002/96/EC
Please ref er to warning and pre-cautions
The CE-mark in combination with MD symbol indicates that Interacoustics A/S meets the
requirements of the Medical Device Regulation (EU) 2017/745 Annex I
Approval of the quality system is made by TÜV – identif ication no. 0123.
Medical Device.
Type B applied parts.
Patient
patient.
Year of manuf acture.
2.3 Callisto™ - connection panel dictionary
1
Position: Symbol:
1 Insitu L.
2 Insitu R.
3 TB/Coupler
4 TF
5 Monitor
6 FF
7 Bone
8 Lef t
9 Right
10 Pat. Resp.
11 USB/PC
Callisto™ – Instructions for Use - EN
applied parts that are not conductive and can be immediately released f rom the
2 3 4 5 6
Function:
Connection of Insitu Headset Lef t
Connection of Insitu Headset Right
Socket f or talk back microphone or coupler base
Socket f or talk f orward or microphone
Socket f or monitor headset
Socket f or f ree f ield speaker
Socket f or bone conductor
Socket f or lef t AC headphone/Insert phone
Socket f or right AC headphone/Insert phone
Socket f or patient response button
Socket f or USB cable to PC
7 8 9 10 11
Page 8
