The hardware indication picture indicates whether the hardware is connected.
When opening the Suite, the system will search f or the hardware. If it does not detect the hardware,
then the system will automatically continue in simulation mode.
Callisto™ – Instructions for Use - EN

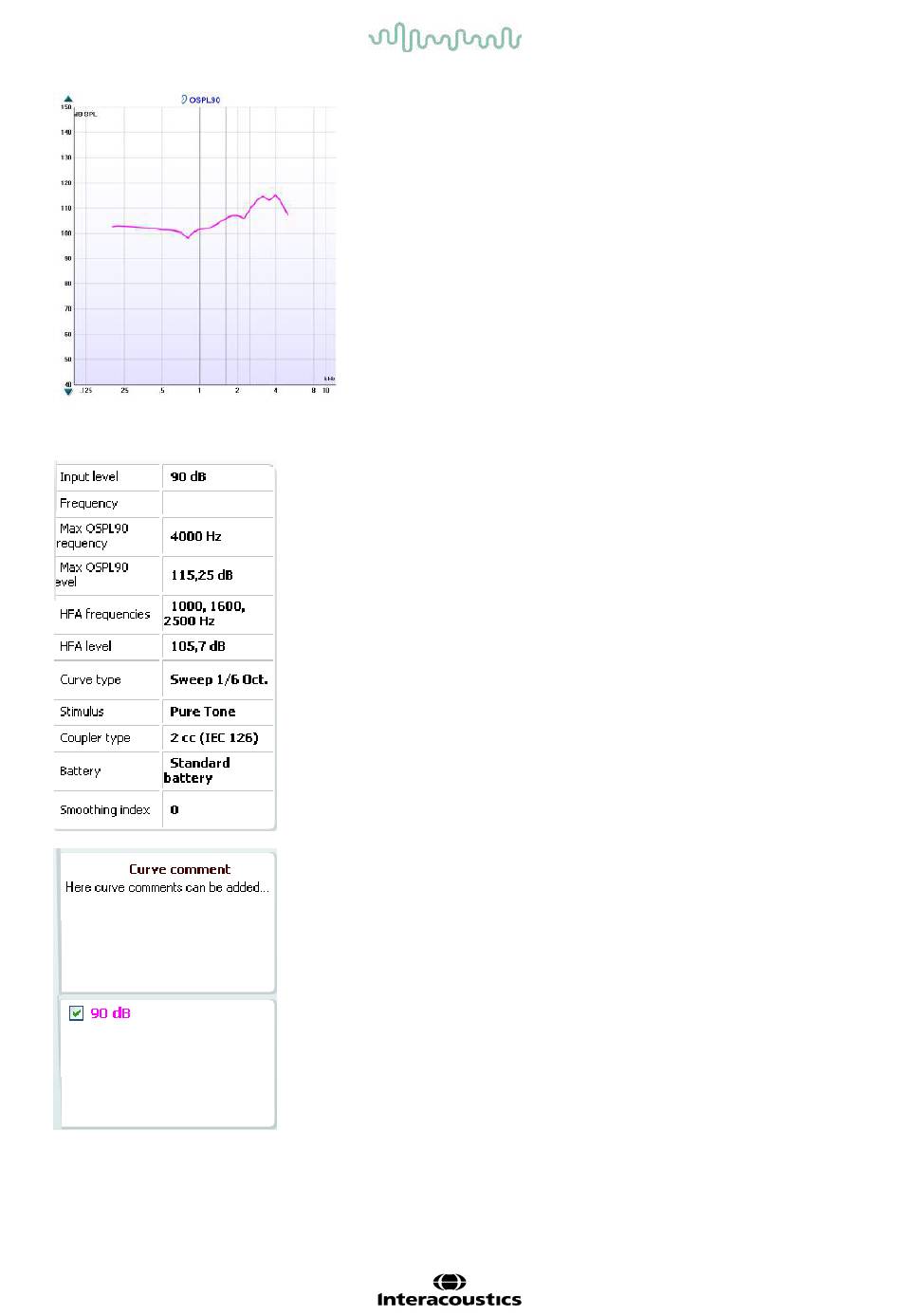

The Graph shows measured HIT curves. The X
axis shows the f requency and the Y axis shows
output or gain, depending on which measurement
was done.
Measurement type is printed above the graph
together with a right/lef t indication. In this example
the OSPL90 is displayed f or the lef t ear.
Change the input level using the slider on the right
hand side.
NOTE: f or the industry standard protocols (ANSI
and IEC), the input level is dictated by the standard
and cannot be changed.
Scroll graph up/down on the lef t hand side allows
f or scrolling the graph up or down ensuring that the
curve is always visible in the middle of the screen.
Measurement details: In this table the curve
details can always be viewed. This way the
prof essional always has an overview of what is
being measured. Read inf ormation such as Input
Level, Max SPL, Curve Type, Stimulus, and Curve
type.
A Curve Comment f or each curve can be typed
into the comment section on the right hand side.
Select a curve using the curve tag boxes under
Curve display options and write a comment in the
comment section.
The comment will then appear in the comment
section whenever the curve is selected.
Curve Display Options are f ound in the lower
right hand corner.
If you have measured more curves of the same
type (e.g. Frequency response curves), they will
be listed by their input level. Tick the ones that are
to be displayed on the graph.
Page 45
