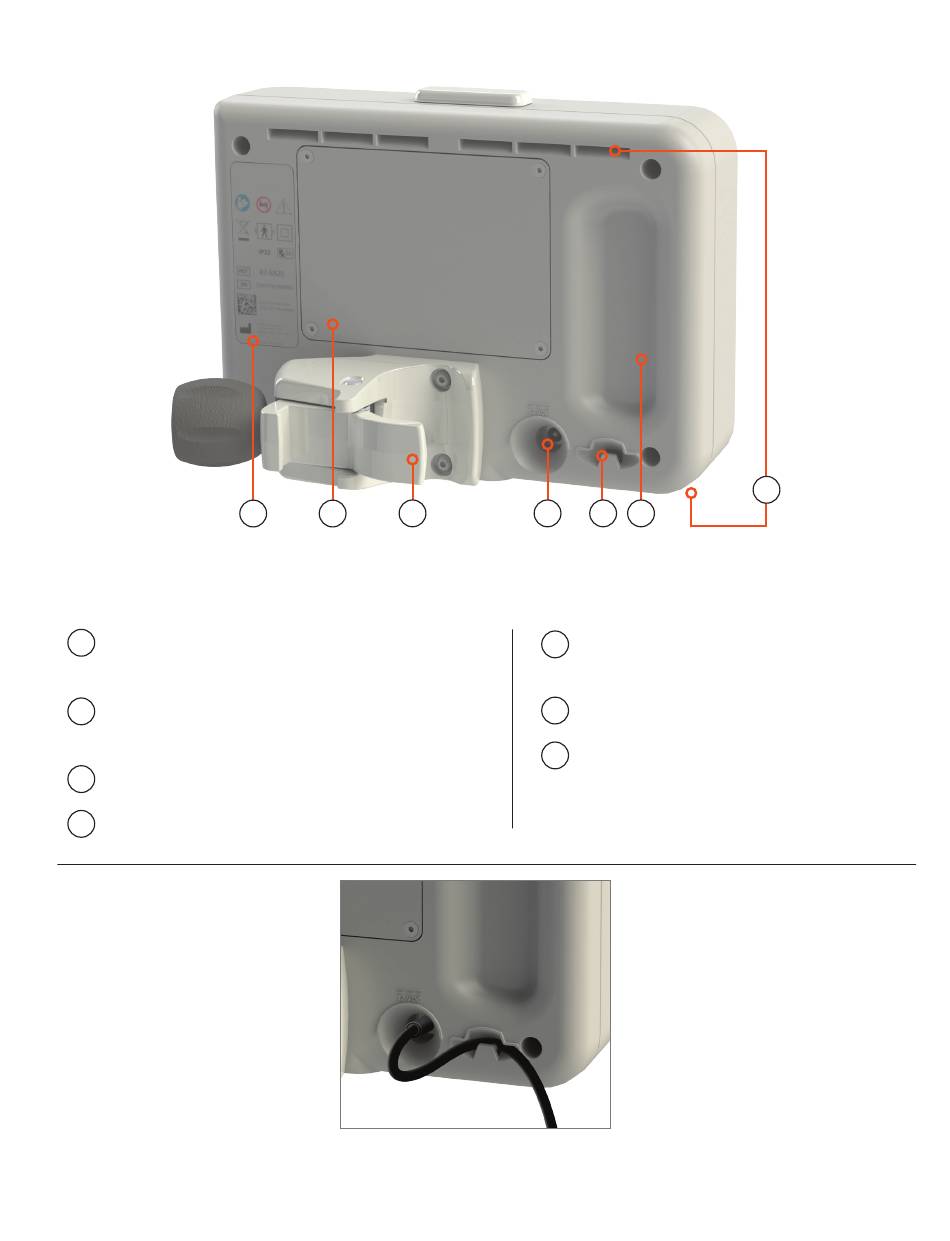

ICP MONITOR LAYOUT: BACK
A
System Information Label
See Labeling Symbols Glossary section.
B
Battery Access
See Battery Replacement section.
C
IV Pole Clamp
D
Power Input
A
B C
Figure 2: Back of ICP Monitor
Figure 3: Power Cable Retention Mechanism Usage
D E F
E
Power Cable Retention Mechanism
Refer to Figure 3.
F
Recessed Hand Hold
G
Cooling Vents
