Maintenance and repair
Double spring-applied brake INTORQ BFK458-06 to 25

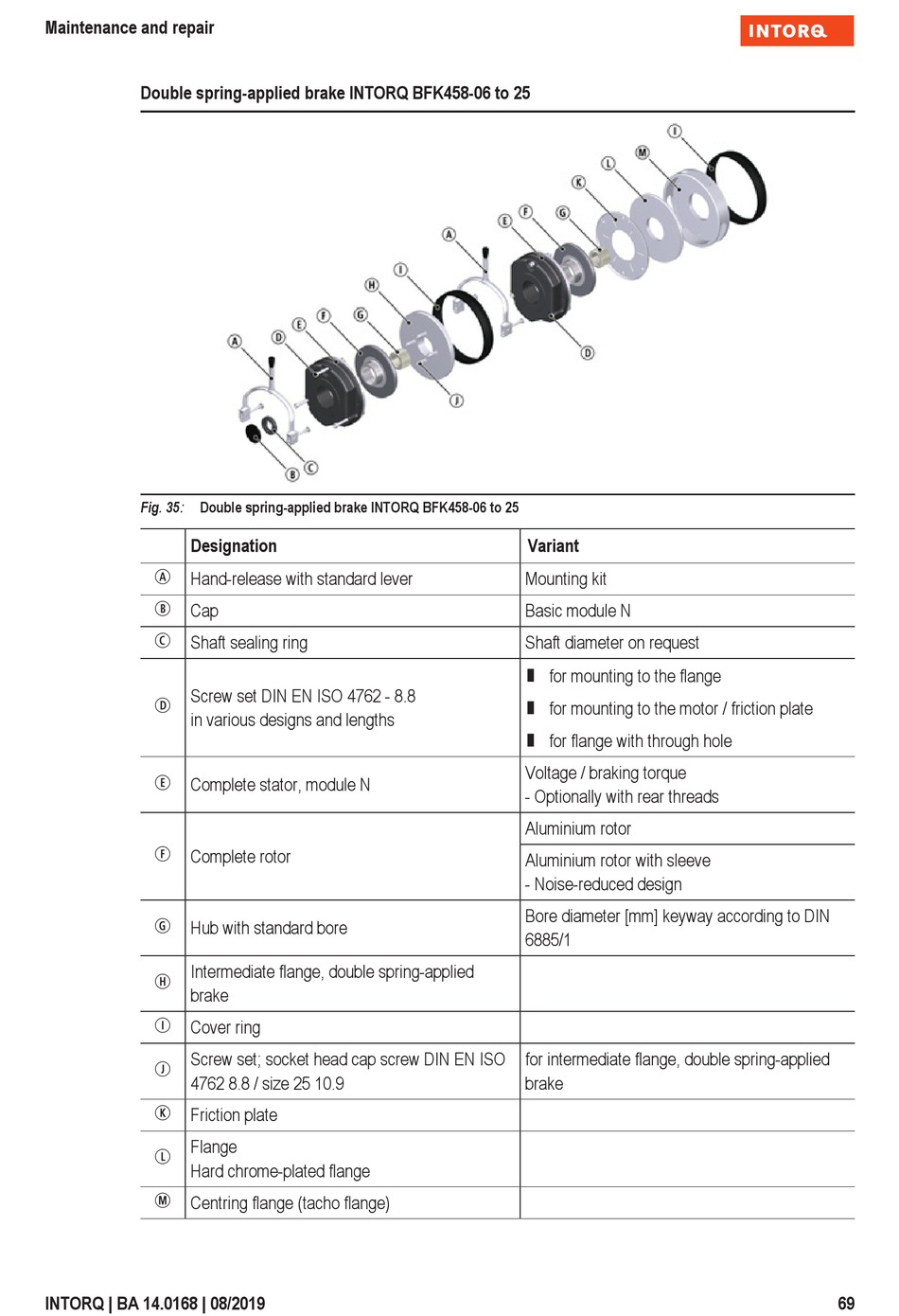

Fig. 35: Double spring-applied brake INTORQ BFK458-06 to 25
Designation
A
Hand-release with standard lever
B
Cap
C
Shaft sealing ring
Screw set DIN EN ISO 4762 - 8.8
D
in various designs and lengths
E
Complete stator, module N
F
Complete rotor
G
Hub with standard bore
Intermediate flange, double spring-applied
H
brake
I
Cover ring
Screw set; socket head cap screw DIN EN ISO
J
4762 8.8 / size 25 10.9
K
Friction plate
Flange
L
Hard chrome-plated flange
M
Centring flange (tacho flange)
INTORQ | BA 14.0168 | 08/2019
Variant
Mounting kit
Basic module N
Shaft diameter on request
¾
for mounting to the flange
¾
for mounting to the motor / friction plate
¾
for flange with through hole
Voltage / braking torque
- Optionally with rear threads
Aluminium rotor
Aluminium rotor with sleeve
- Noise-reduced design
Bore diameter [mm] keyway according to DIN
6885/1
for intermediate flange, double spring-applied
brake
69
