Mechanical installation
1. Place the flange against the end shield.
2. Use the four screws to screw the flange to the end shield.
3. Check the height of the screw heads. The screw heads must not be higher than the minimum rotor
thickness. Use screws that comply with the information in the table Rated data: screw kit for brake as-
sembly on separately screwed-on flange, Page 24.
5.7.4

Installing the flange (variants: size 25)

The flange can be screwed to the end shield onto the outer hole circle (refer to the table Rated data: screw
kit for brake assembly on separately screwed-on flange, Page 24).

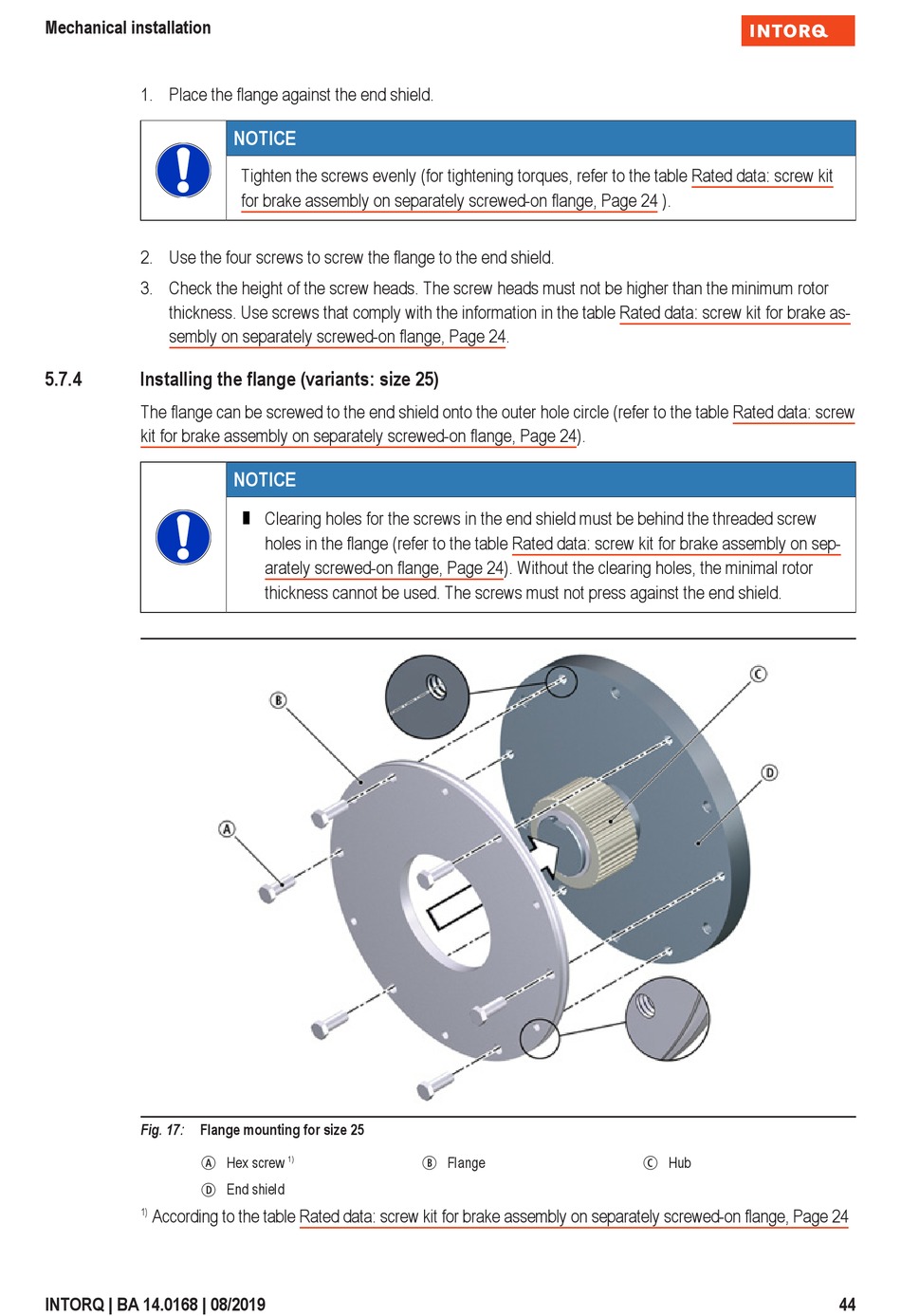

Fig. 17: Flange mounting for size 25
A
D
1)
According to the table Rated data: screw kit for brake assembly on separately screwed-on flange, Page 24
INTORQ | BA 14.0168 | 08/2019
NOTICE
Tighten the screws evenly (for tightening torques, refer to the table Rated data: screw kit
for brake assembly on separately screwed-on flange, Page 24 ).
NOTICE
¾
Clearing holes for the screws in the end shield must be behind the threaded screw
holes in the flange (refer to the table Rated data: screw kit for brake assembly on sep-
arately screwed-on flange, Page 24). Without the clearing holes, the minimal rotor
thickness cannot be used. The screws must not press against the end shield.
1)
Hex screw
End shield
B
Flange
C
Hub
44
