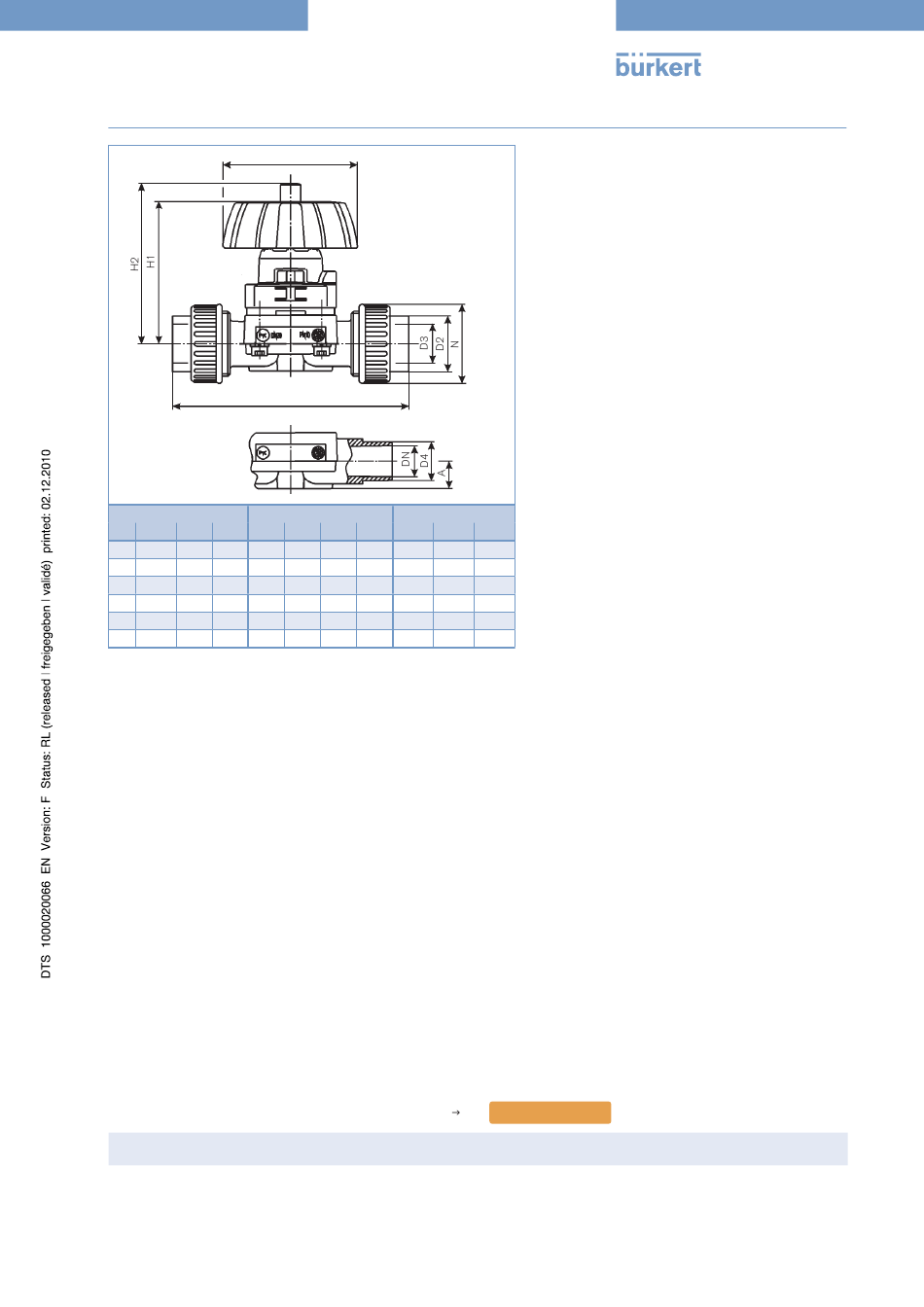

Dimensions [mm]
All versions
DN Ø D1 H1
15 86 84
20 86 92
25 86 96
32 114 124
40 114 130
50 114 145
To fi nd your nearest Bürkert facility, click on the orange box
In case of special application conditions,
please consult for advice.
Q-Pulse Id VM422
3232
øD1
true union connection
L
spigot connection
True union connection
H2 D2 D3 L N
92 28 20 128 41
102 36 25 152 51
108 42 32 166 58
139 53 40 192 72
149 59 50 222 80
170 74 63 266 100
Subject to alteration.
© Christian Bürkert GmbH & Co. KG
Spigot connection
A D4 L
14 20 124
17.5 25 144
21 32 154
25.5 40 174
32.5 50 194
39 63 224
