Type 3232 can be combined with...
Type 2030/31
Version with
pneumatic actuator
Manually-operated diaphragm valves in com-
pact model consisting of plastic bodies, dia-
phragm seal, PPS bonnet and PPS handwheel.
The diaphragm is both a switching element
and a seal element towards the outside, and
is easily replaced. The fl ow can be continually
adjusted with the handwheel. The valves have
no dead volume and can be mounted to be
self-draining.
Installation for self-draining operation
α =15 to 30° plus 3° to 5° inclination to pipe axis
Q-Pulse Id VM422
3232

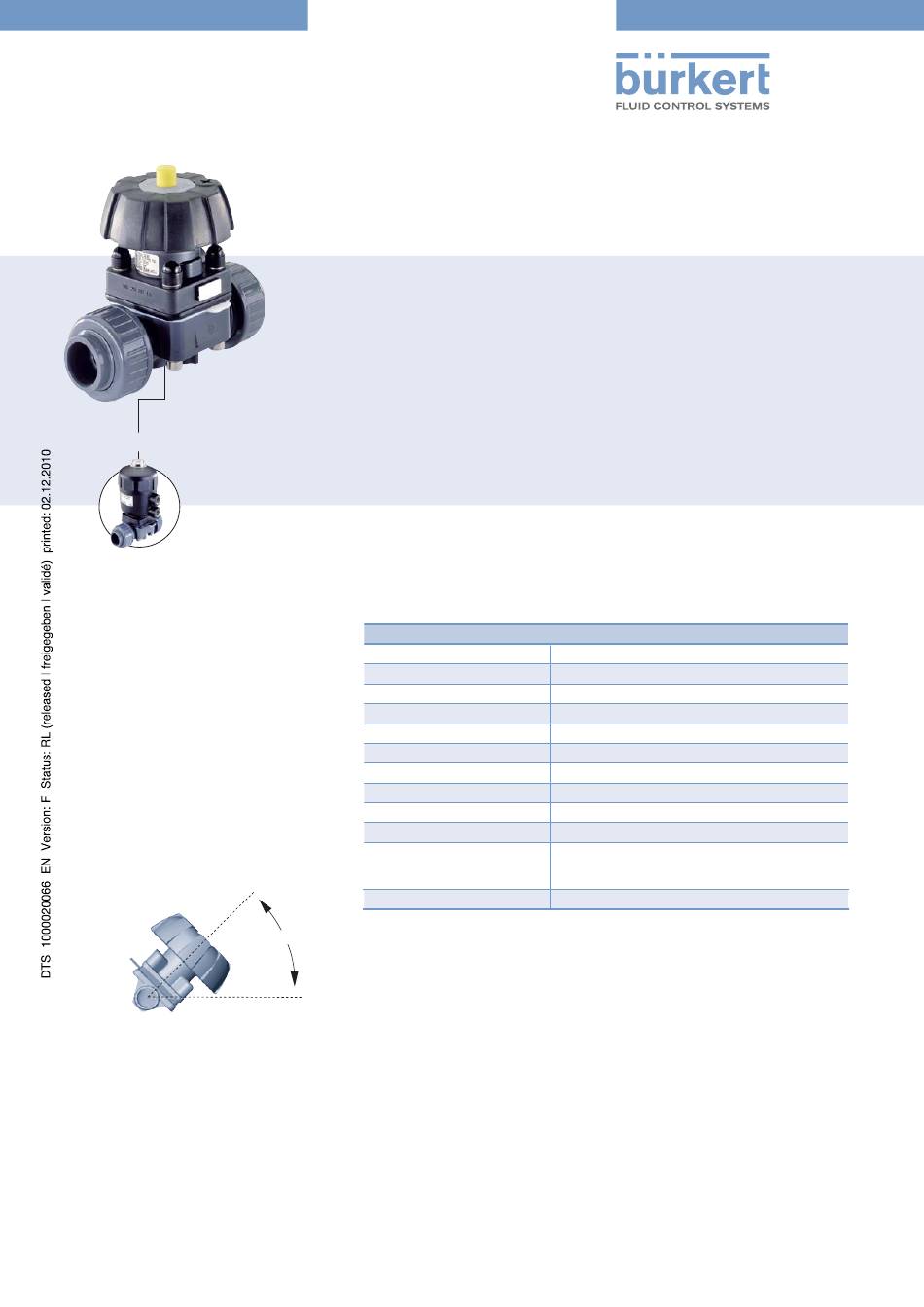

2/2-way Diaphragm Valve with
plastic body, manually operated,
DN 15-50
• Application with aggressive media
• Flow-optimised body
• Zero dead volume
• Removable radial true union and spigot
connections
• Self-draining
Technical data
Orifi ce
Body materials
Actuator material
Seal material
Medium
Viscosity
Medium temperature
Ambient temperature
Port connections
Installation
Installation
for self draining
Options (on request)
1)
The permissible nominal pressure falls with increasing medium temperature (see Pressure-temperature chart)
α
Active 29/10/2013
DN 15 - 50 (65-100 on request)
PVC-U, PP, PVDF
PPS manual actuator and bonnet
EPDM, PTFE/EPDM (FKM on request)
Neutral or aggressive medium
Up to viscous
1) See chart on p. 2
-10 to +60 °C
True union and spigot
As required
Tilted 5 to 30° to the horizontal and
Inclined 3 to 5° to the fl ow direction
(see drawing)
Locking function
