6. Technical daTa
6.1. Type label
Orifice of the housing /
Identification number of the
Production date
Line connector,
Max. medium pressure

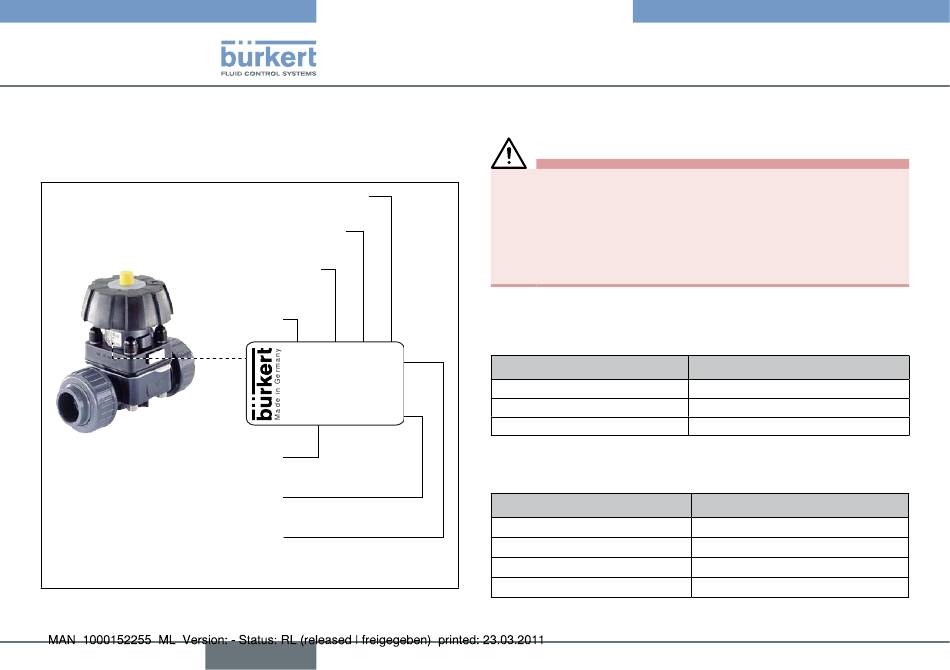

Fig. 1: Location and description of the type label
Q-Pulse Id VM422
8
Housing material
Seal material
Actuator size
Type
3233 25,0 EPDM VS
TG44 Pmed 10bar
00442376 W36LP
device
(encoded)
english
6.2. Operating conditions
Warning!
danger of bursting from overpressure!
If the device explodes, there is a risk of serious injury, chemical
burns, scalding!
• Do not exceed the maximum medium pressure. Observe specifi-
cations on the type label!
• Observe permitted ambient and media temperature.
6.2.1. allowable temperatures
ambient temperature for actuators:
material
PPS
Stainless steel
Gray cast iron
Tab. 1: Ambient temperature for actuators
medium temperature for housing:
housing material
Stainless steel
PVC (see PT-Graph)
PVDF (see PT-Graph)
PP (see PT-Graph)
Tab. 2: Medium temperature for housing
Active 29/10/2013
Type 3 232, 3233, 3233 K, 3234,
3235, 3239

Technical data

temperature
Up to 130 °C (briefly up to 150 °C)
Up to 130 °C (briefly up to 150 °C)
Up to 130 °C (briefly up to 150 °C)
temperature
-10 ... +140 °C
-10 ... +60 °C
-10 ... +120 °C
-10 ... +80 °C
