11. spare parTs, accessOries
Caution!
risk of injury and/or damage by the use of incorrect parts!
Incorrect accessories and unsuitable spare parts may cause injuries
and damage the device and the surrounding area.
• Use only original accessories and original spare parts from
Bürkert.
The following spare parts are available for the manually actuated
diaphragm valves type 3232, 3233, 3233 K, 3234, 3235 and 3239:
• Manual actuator complete,
• Diaphragm.

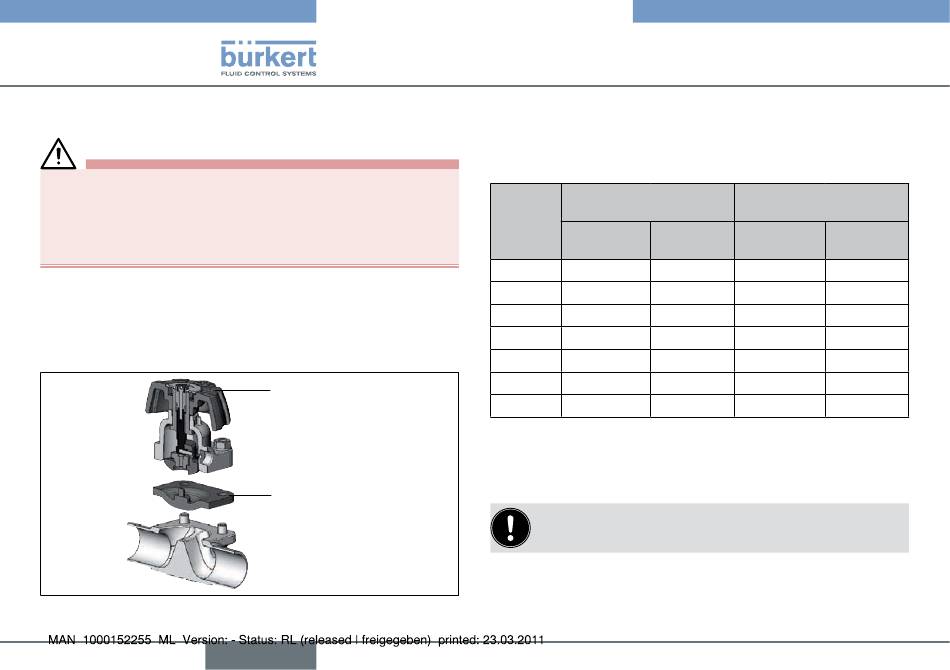

Fig. 9: Spare parts
Q-Pulse Id VM422
20
Manual actuator
Diaphragm
english
11.1. Order table
11.1.1. Order tables for manual actuators
handwheel and attachment
dn
[mm]
diaphragm
epdm, fkm
4, 6, 8, 10 194 809
15 432 977
20, 15* 432 984
25, 20* 432 991
32, 25* 432 998
40, 32* 433 005
50, 40* 433 012
Tab. 13: Order table for manual actuator
* Valves type 3233 K with welded support according to DIN 11850 S2, with
OD weld-on ends, with ANSI and JIS welding neck flange
Manual actuators for orifice DN 65, DN 80 and DN 100 on
request.
Active 29/10/2013
Type 3 232, 3233, 3233 K, 3234,
3235, 3239

Spare parts, Accessories

handwheel pps,
pps attachment stainless steel
diaphragm diaphragm
ptfe epdm, fkm
194 809 194 808
432 978 432 979
432 985 432 986
432 992 432 993
432 999 433 000
433 006 433 007
433 013 433 014
diaphragm
ptfe
194 808
432 980
432 987
432 994
433 001
433 008
433 015
Page 29 of 76
