Installation instruction

Do not install the unit at the following places:
1. A place with corrosive gases such as sulphurous acid gas, which will lead to the corrosion of the copper
tube, welding joint, etc., thus causing refrigerant leakage.
2. A place where machines release electromagnetic waves, which will lead to abnormality in and improper
functioning of the control system.
3. A place with possible leakage of combustible gases, floating carbon fibre in the atmosphere, combustible
dust and use of volatile combustible substances such as diluents, the accumulation of which around the
unit will lead to fire.
4. A place inhabited by small creatures, who upon contact with the inner electrical components could cause
malfunctioning, fire etc.
5. A coastal area with high salinity and a place with a huge variation in voltage such as factories, which may
cause faults to vehicles and ships.
Attention
Carry out the installation after ensuring that the type of the refrigerant used is R410A. If any other type of
refrigerant is used, the machine cannot function.
• Before and after unpacking, if the connection kit is to be moved, the hoisting handles (4 in total) should be
held firmly. Do not apply force to other parts, especially the refrigerant tube and the electrical cabinet.
• In case of installation of outdoor and indoor units, refer to the installation specifications for the respective
units.

Accessories

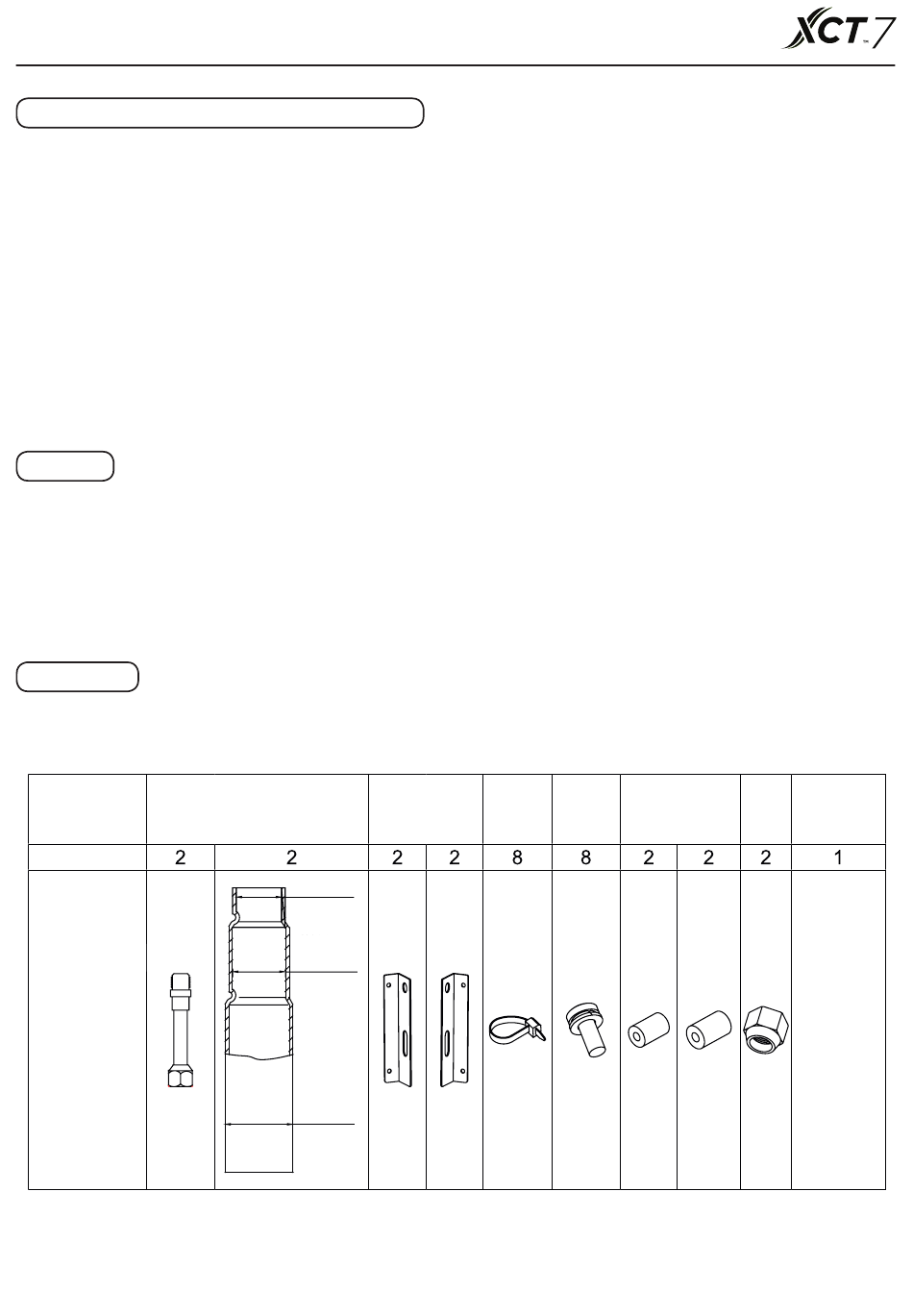

Ensure that the accessories listed below are packed together.
Variable diameter
40VA010T7FAQEE
Quantity
Ø12.7
Shape
Ø9.52
Suspending
inner
diameter
Ø19.3
inner
diameter
Ø22.4
outer
diameter
Ø25.4
4
Thermal
Screw
Clip
insulation
pipe
Nut Specification
