Installation procedure

Sensor Installation

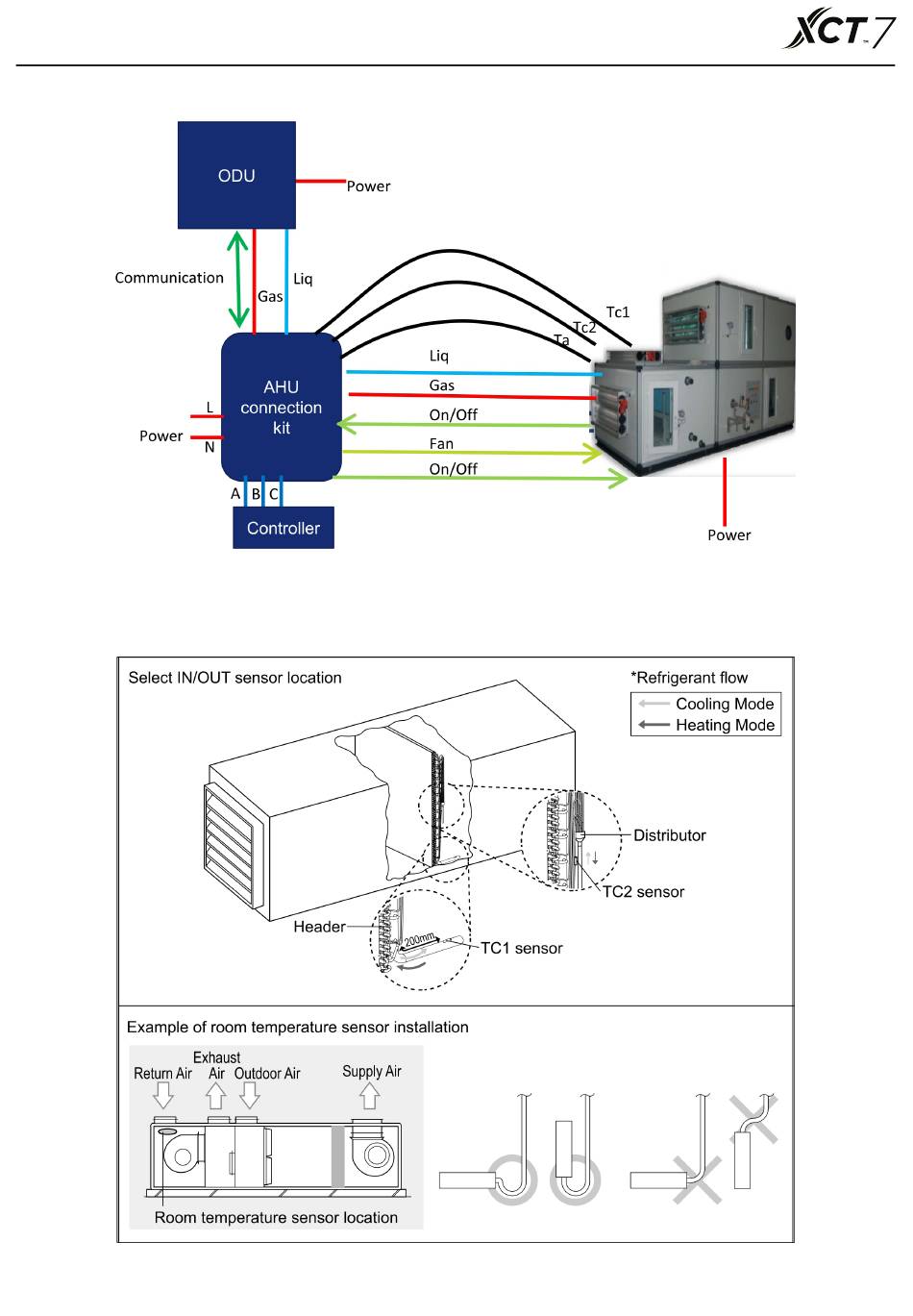

(1) TC2 sensor should be attached after the distributor, on the coldest part of the heat exchanger pipe.
(2) TC1 sensor should be installed approximately 200mm behind the header of AHU heat exchanger.
(3) TC1/2 sensor should be insulated for optimized system performance.
(4) Room temperature sensor should be installed where room air enters.
