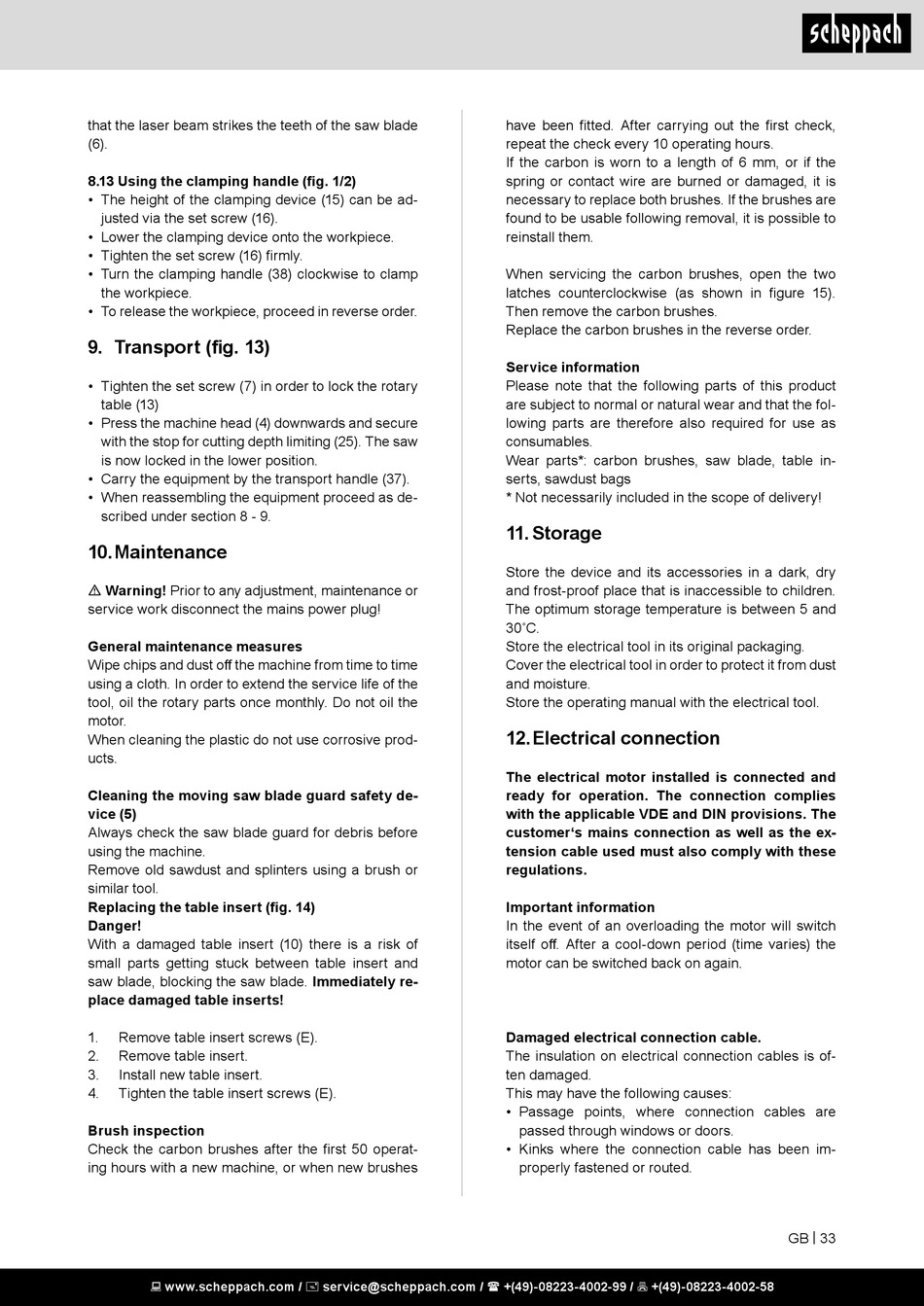

that the laser beam strikes the teeth of the saw blade
(6).
8.13 Using the clamping handle (fig. 1/2)
• The height of the clamping device (15) can be ad-
justed via the set screw (16).
• Lower the clamping device onto the workpiece.
• Tighten the set screw (16) firmly.
• Turn the clamping handle (38) clockwise to clamp
the workpiece.
• To release the workpiece, proceed in reverse order.

9. Transport (fig. 13)

• Tighten the set screw (7) in order to lock the rotary
table (13)
• Press the machine head (4) downwards and secure
with the stop for cutting depth limiting (25). The saw
is now locked in the lower position.
• Carry the equipment by the transport handle (37).
• When reassembling the equipment proceed as de-
scribed under section 8 - 9.

10. Maintenance

m Warning! Prior to any adjustment, maintenance or
service work disconnect the mains power plug!
General maintenance measures
Wipe chips and dust off the machine from time to time
using a cloth. In order to extend the service life of the
tool, oil the rotary parts once monthly. Do not oil the
motor.
When cleaning the plastic do not use corrosive prod-
ucts.
Cleaning the moving saw blade guard safety de-
vice (5)
Always check the saw blade guard for debris before
using the machine.
Remove old sawdust and splinters using a brush or
similar tool.
Replacing the table insert (fig. 14)
Danger!
With a damaged table insert (10) there is a risk of
small parts getting stuck between table insert and
saw blade, blocking the saw blade. Immediately re-
place damaged table inserts!
1. Remove table insert screws (E).
2. Remove table insert.
3. Install new table insert.
4. Tighten the table insert screws (E).
Brush inspection
Check the carbon brushes after the first 50 operat-
ing hours with a new machine, or when new brushes
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
have been fitted. After carrying out the first check,
repeat the check every 10 operating hours.
If the carbon is worn to a length of 6 mm, or if the
spring or contact wire are burned or damaged, it is
necessary to replace both brushes. If the brushes are
found to be usable following removal, it is possible to
reinstall them.
When servicing the carbon brushes, open the two
latches counterclockwise (as shown in figure 15).
Then remove the carbon brushes.
Replace the carbon brushes in the reverse order.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: carbon brushes, saw blade, table in-
serts, sawdust bags
* Not necessarily included in the scope of delivery!

11. Storage

Store the device and its accessories in a dark, dry
and frost-proof place that is inaccessible to children.
The optimum storage temperature is between 5 and
30˚C.
Store the electrical tool in its original packaging.
Cover the electrical tool in order to protect it from dust
and moisture.
Store the operating manual with the electrical tool.

12. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions. The
customer's mains connection as well as the ex-
tension cable used must also comply with these
regulations.
Important information
In the event of an overloading the motor will switch
itself off. After a cool-down period (time varies) the
motor can be switched back on again.
Damaged electrical connection cable.
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
