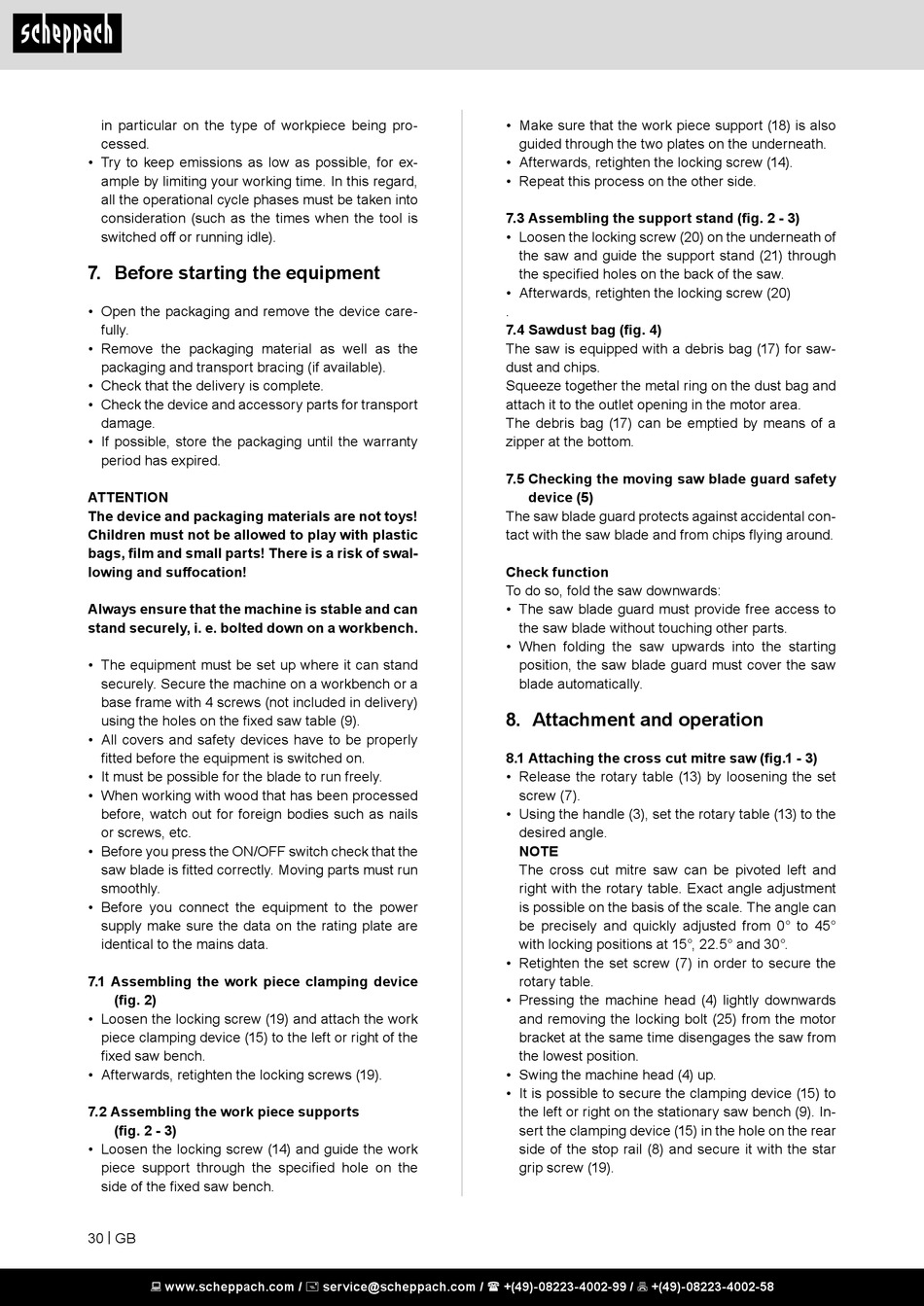

in particular on the type of workpiece being pro-
cessed.
• Try to keep emissions as low as possible, for ex-
ample by limiting your working time. In this regard,
all the operational cycle phases must be taken into
consideration (such as the times when the tool is
switched off or running idle).

7. Before starting the equipment

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
Always ensure that the machine is stable and can
stand securely, i. e. bolted down on a workbench.
• The equipment must be set up where it can stand
securely. Secure the machine on a workbench or a
base frame with 4 screws (not included in delivery)
using the holes on the fixed saw table (9).
• All covers and safety devices have to be properly
fitted before the equipment is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws, etc.
• Before you press the ON/OFF switch check that the
saw blade is fitted correctly. Moving parts must run
smoothly.
• Before you connect the equipment to the power
supply make sure the data on the rating plate are
identical to the mains data.
7.1 Assembling the work piece clamping device
(fig. 2)
• Loosen the locking screw (19) and attach the work
piece clamping device (15) to the left or right of the
fixed saw bench.
• Afterwards, retighten the locking screws (19).
7.2 Assembling the work piece supports
(fig. 2 - 3)
• Loosen the locking screw (14) and guide the work
piece support through the specified hole on the
side of the fixed saw bench.
30 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Make sure that the work piece support (18) is also
guided through the two plates on the underneath.
• Afterwards, retighten the locking screw (14).
• Repeat this process on the other side.
7.3 Assembling the support stand (fig. 2 - 3)
• Loosen the locking screw (20) on the underneath of
the saw and guide the support stand (21) through
the specified holes on the back of the saw.
• Afterwards, retighten the locking screw (20)
.
7.4 Sawdust bag (fig. 4)
The saw is equipped with a debris bag (17) for saw-
dust and chips.
Squeeze together the metal ring on the dust bag and
attach it to the outlet opening in the motor area.
The debris bag (17) can be emptied by means of a
zipper at the bottom.
7.5 Checking the moving saw blade guard safety
device (5)
The saw blade guard protects against accidental con-
tact with the saw blade and from chips flying around.
Check function
To do so, fold the saw downwards:
• The saw blade guard must provide free access to
the saw blade without touching other parts.
• When folding the saw upwards into the starting
position, the saw blade guard must cover the saw
blade automatically.

8. Attachment and operation

8.1 Attaching the cross cut mitre saw (fig.1 - 3)
• Release the rotary table (13) by loosening the set
screw (7).
• Using the handle (3), set the rotary table (13) to the
desired angle.
NOTE
The cross cut mitre saw can be pivoted left and
right with the rotary table. Exact angle adjustment
is possible on the basis of the scale. The angle can
be precisely and quickly adjusted from 0° to 45°
with locking positions at 15°, 22.5° and 30°.
• Retighten the set screw (7) in order to secure the
rotary table.
• Pressing the machine head (4) lightly downwards
and removing the locking bolt (25) from the motor
bracket at the same time disengages the saw from
the lowest position.
• Swing the machine head (4) up.
• It is possible to secure the clamping device (15) to
the left or right on the stationary saw bench (9). In-
sert the clamping device (15) in the hole on the rear
side of the stop rail (8) and secure it with the star
grip screw (19).
