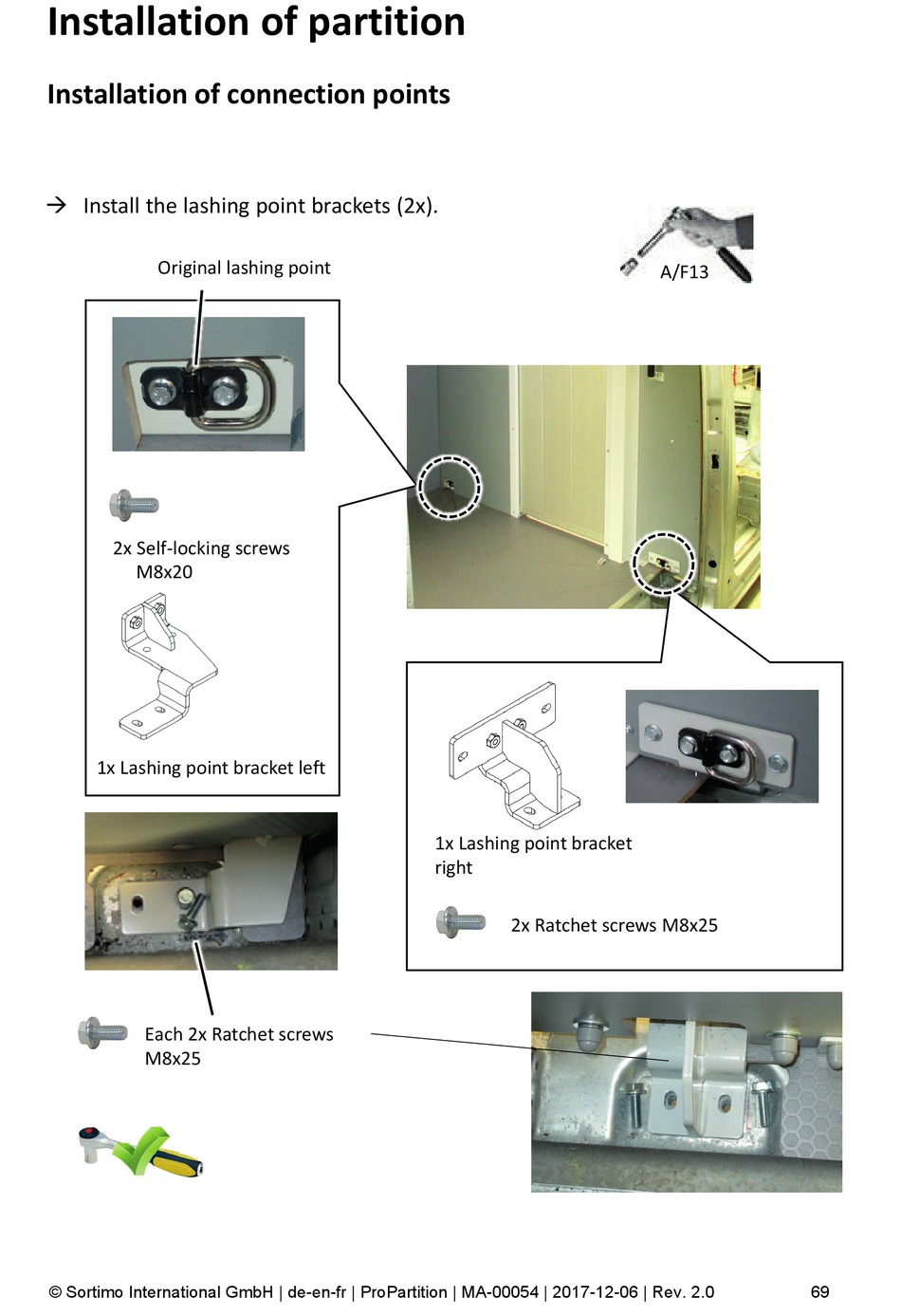

Installation of partition
Installation of connection points
 Install the lashing point brackets (2x).
Original lashing point
2x Self-locking screws
M8x20
1x Lashing point bracket left
Each 2x Ratchet screws
M8x25
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
1x Lashing point bracket
right
2x Ratchet screws M8x25
A/F13
