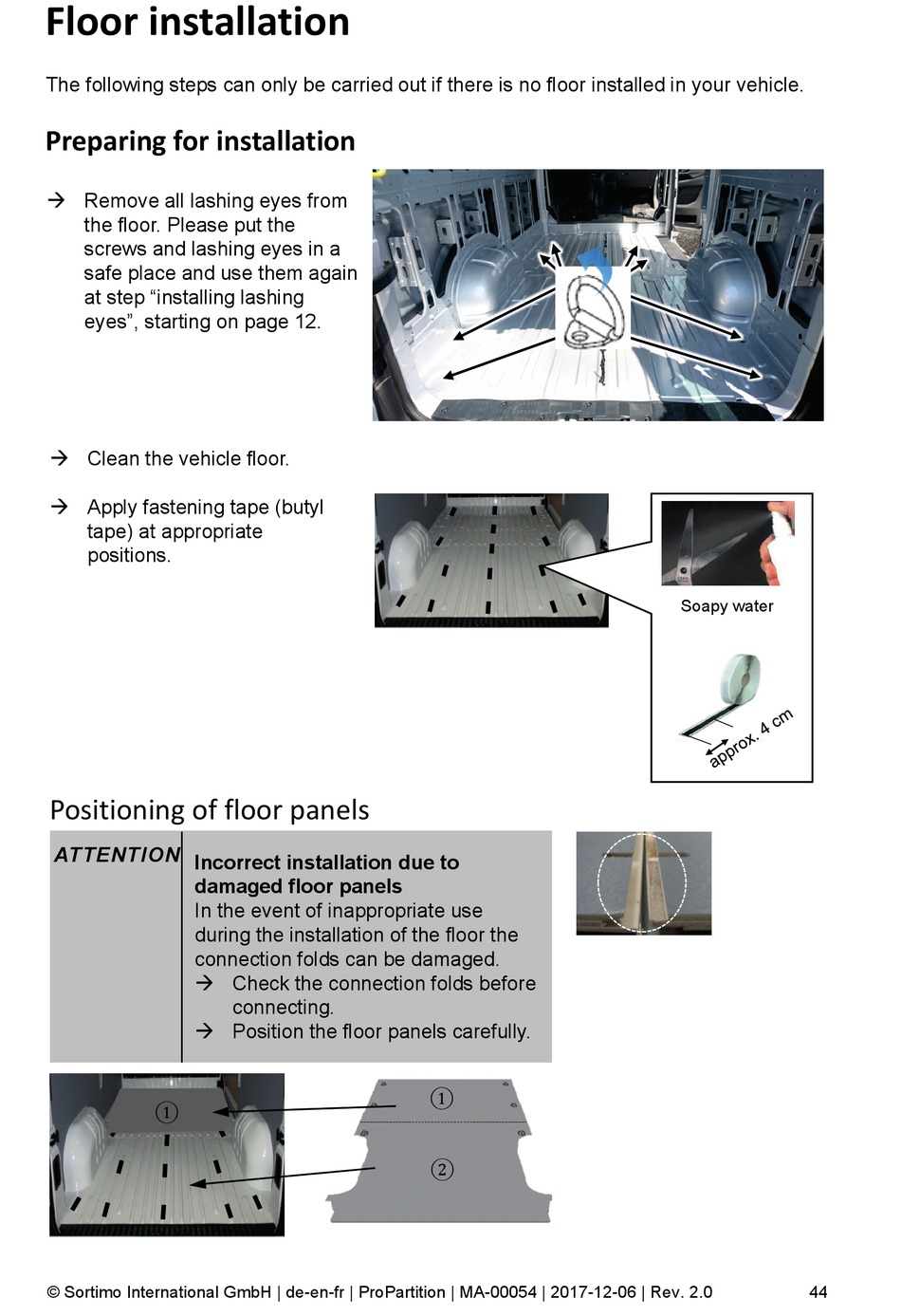

Floor installation

The following steps can only be carried out if there is no floor installed in your vehicle.

Preparing for installation

 Remove all lashing eyes from
the floor. Please put the
screws and lashing eyes in a
safe place and use them again
at step "installing lashing
eyes", starting on page 12.
 Clean the vehicle floor.
 Apply fastening tape (butyl
tape) at appropriate
positions.
Positioning of floor panels
ATTENTION
Incorrect installation due to
damaged floor panels
In the event of inappropriate use
during the installation of the floor the
connection folds can be damaged.
 Check the connection folds before
 Position the floor panels carefully.
①
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
connecting.
①
②
Soapy water
