Installation of partition

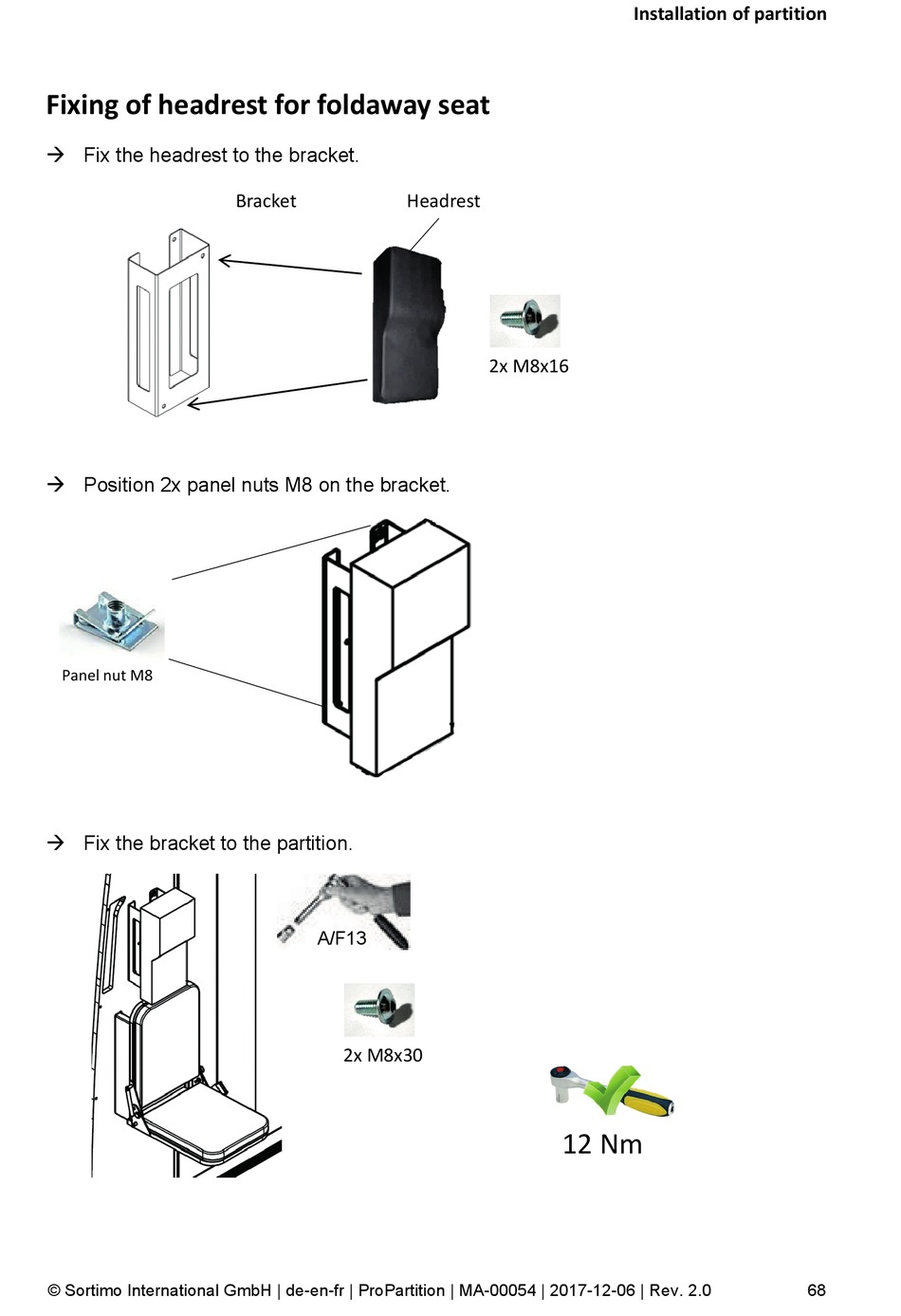

Fixing of headrest for foldaway seat
 Fix the headrest to the bracket.
Bracket Headrest
2x M8x16
 Position 2x panel nuts M8 on the bracket.
Panel nut M8
 Fix the bracket to the partition.
A/F13
2x M8x30
12 Nm
