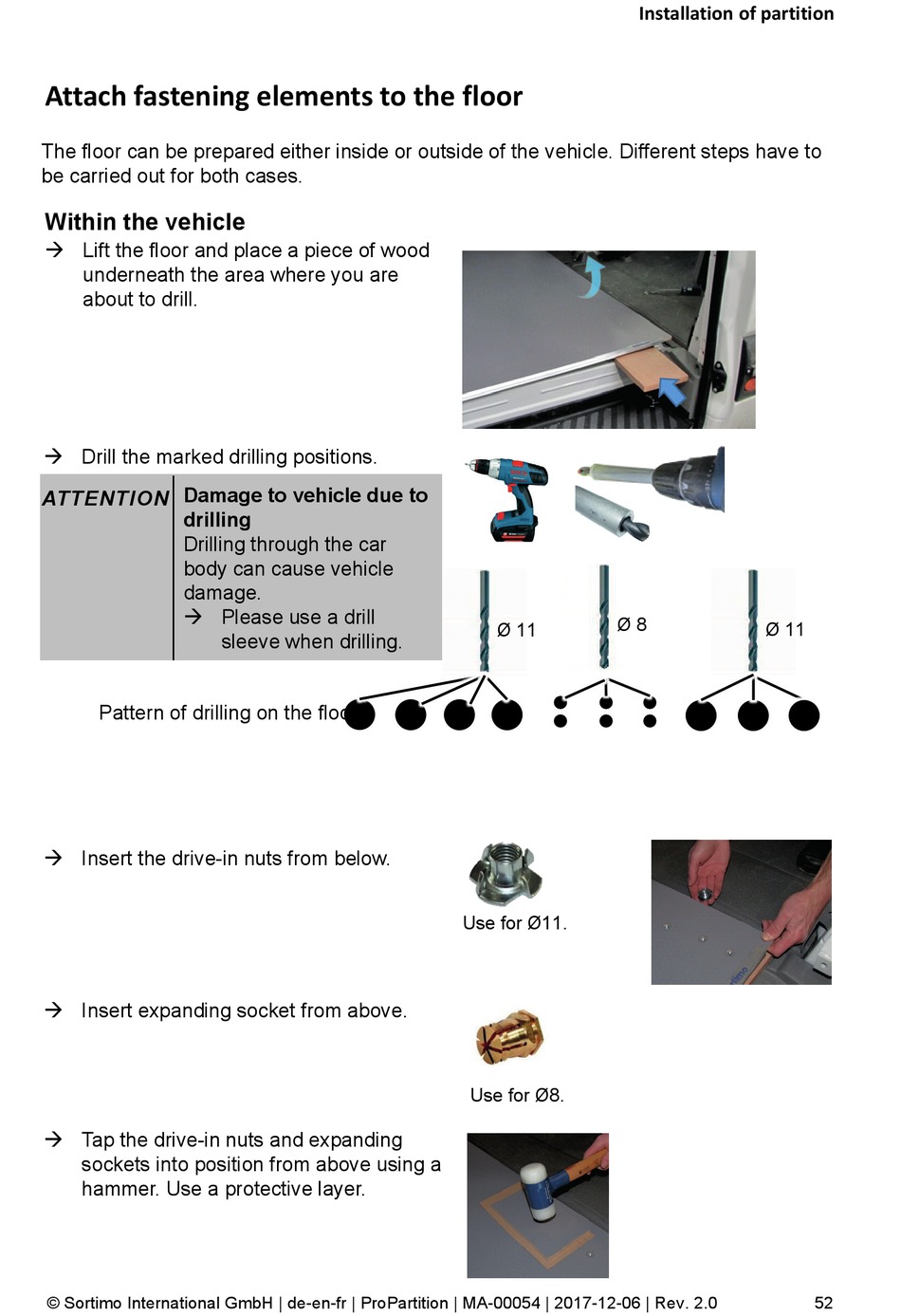

Attach fastening elements to the floor
The floor can be prepared either inside or outside of the vehicle. Different steps have to
be carried out for both cases.
Within the vehicle
 Lift the floor and place a piece of wood
underneath the area where you are
about to drill.
 Drill the marked drilling positions.
Damage to vehicle due to
ATTENTION
drilling
Drilling through the car
body can cause vehicle
damage.
 Please use a drill
Pattern of drilling on the floor:
 Insert the drive-in nuts from below.
 Insert expanding socket from above.
 Tap the drive-in nuts and expanding
sockets into position from above using a
hammer. Use a protective layer.
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
sleeve when drilling.
Ø 8
Ø 11
Use for Ø11.
Use for Ø8.
Installation of partition
Ø 11
