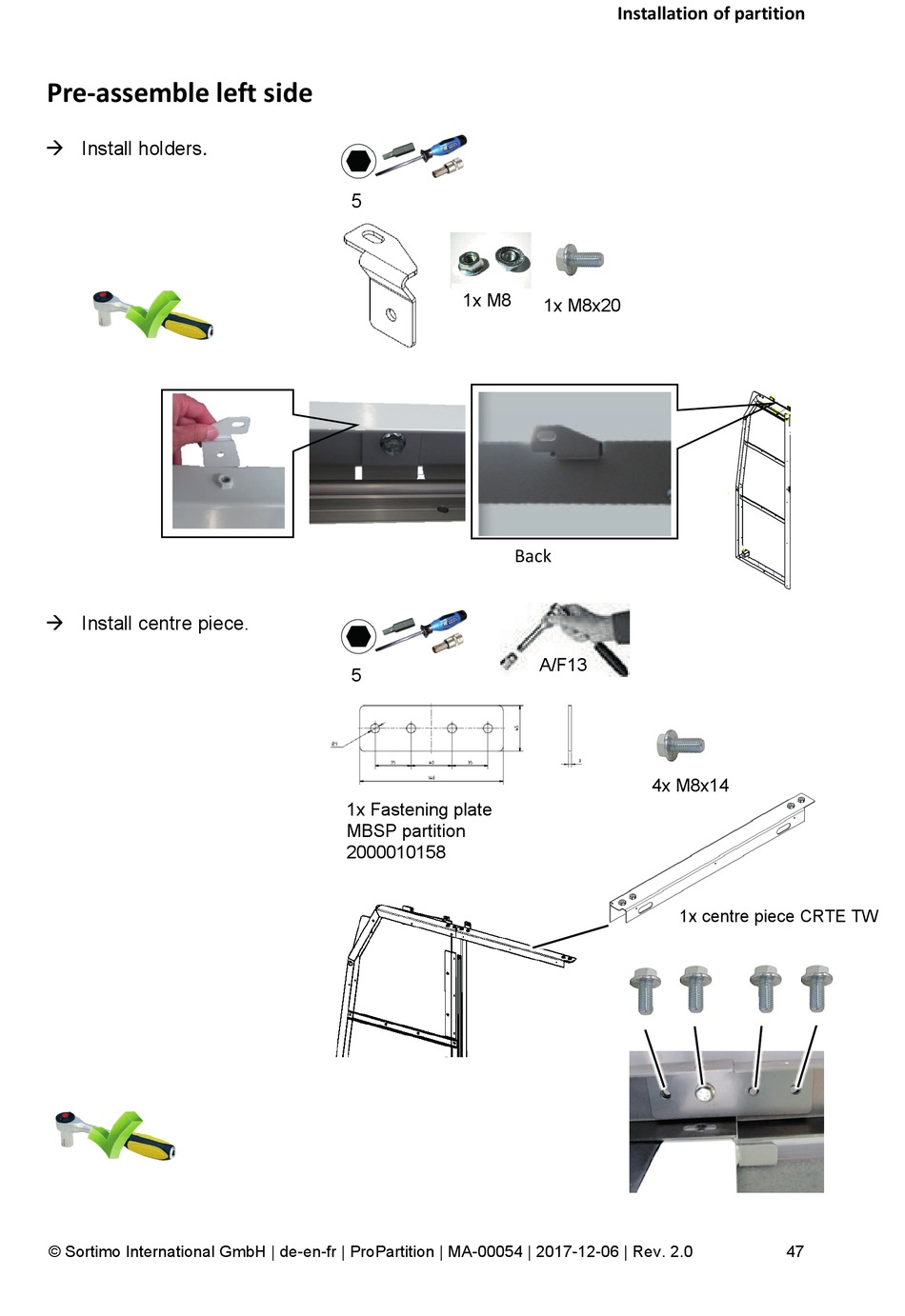

Pre-assemble left side
.
 Install holders
 Install centre piece.
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
5
1x M8
5
1x Fastening plate
MBSP partition
2000010158
Installation of partition
1x M8x20
Back
A/F13
4x M8x14
1x centre piece CRTE TW
