Sortimo ProPartition Montageanleitung Seite 58

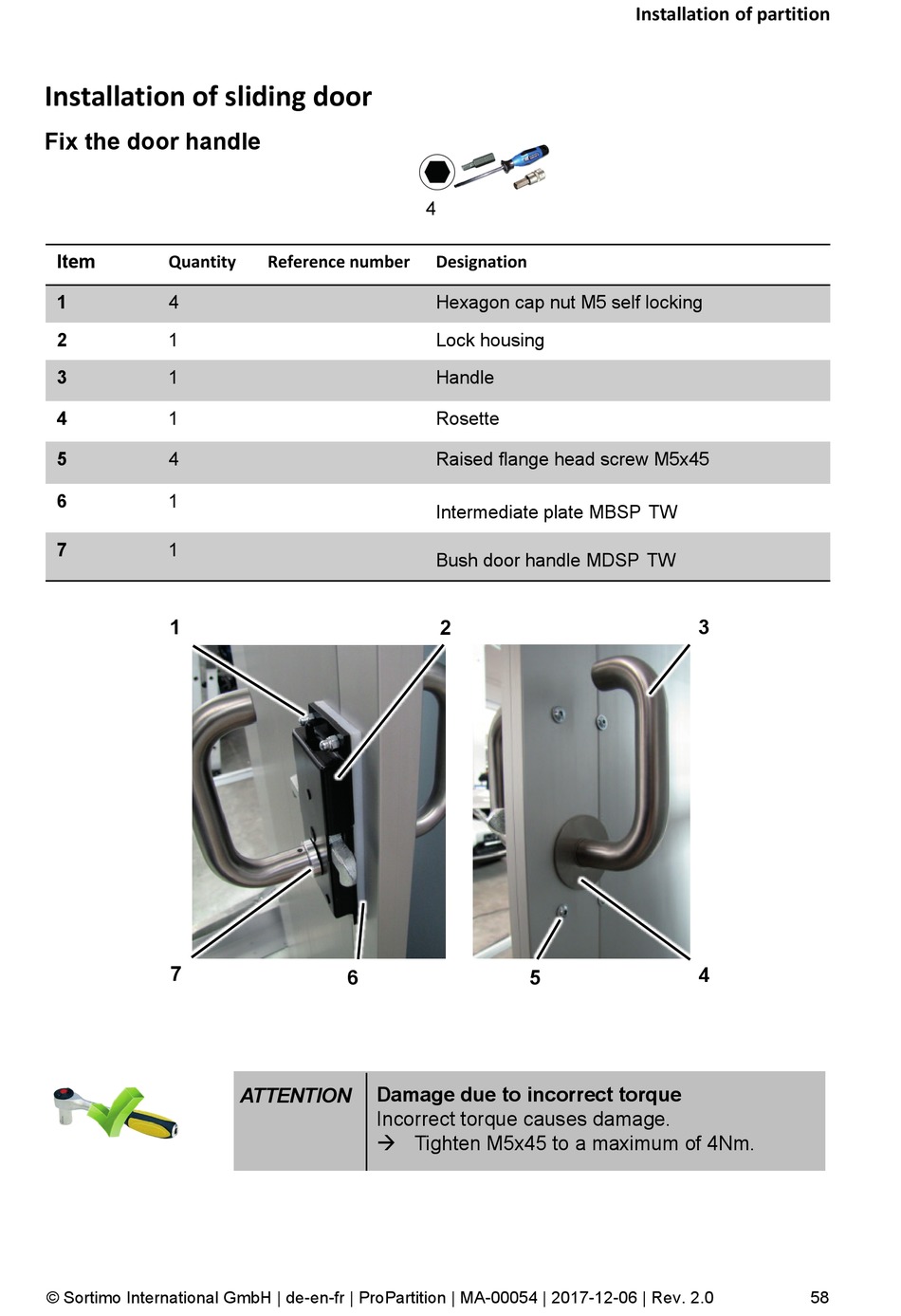

Installation of sliding door
Fix the door handle
Quantity
Item
1
4
2 1
3 1
4 1
5 4
6
1
7
1
1
7
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
Reference number
6
Damage due to incorrect torque
ATTENTION
Incorrect torque causes damage.
 Tighten M5x45 to a maximum of 4Nm.
4
Designation
Hexagon cap nut M5 self locking
Lock housing
Handle
Rosette
Raised flange head screw M5x45
Intermediate plate MBSP TW
Bush door handle MDSP TW
2
5
Installation of partition
3
4
