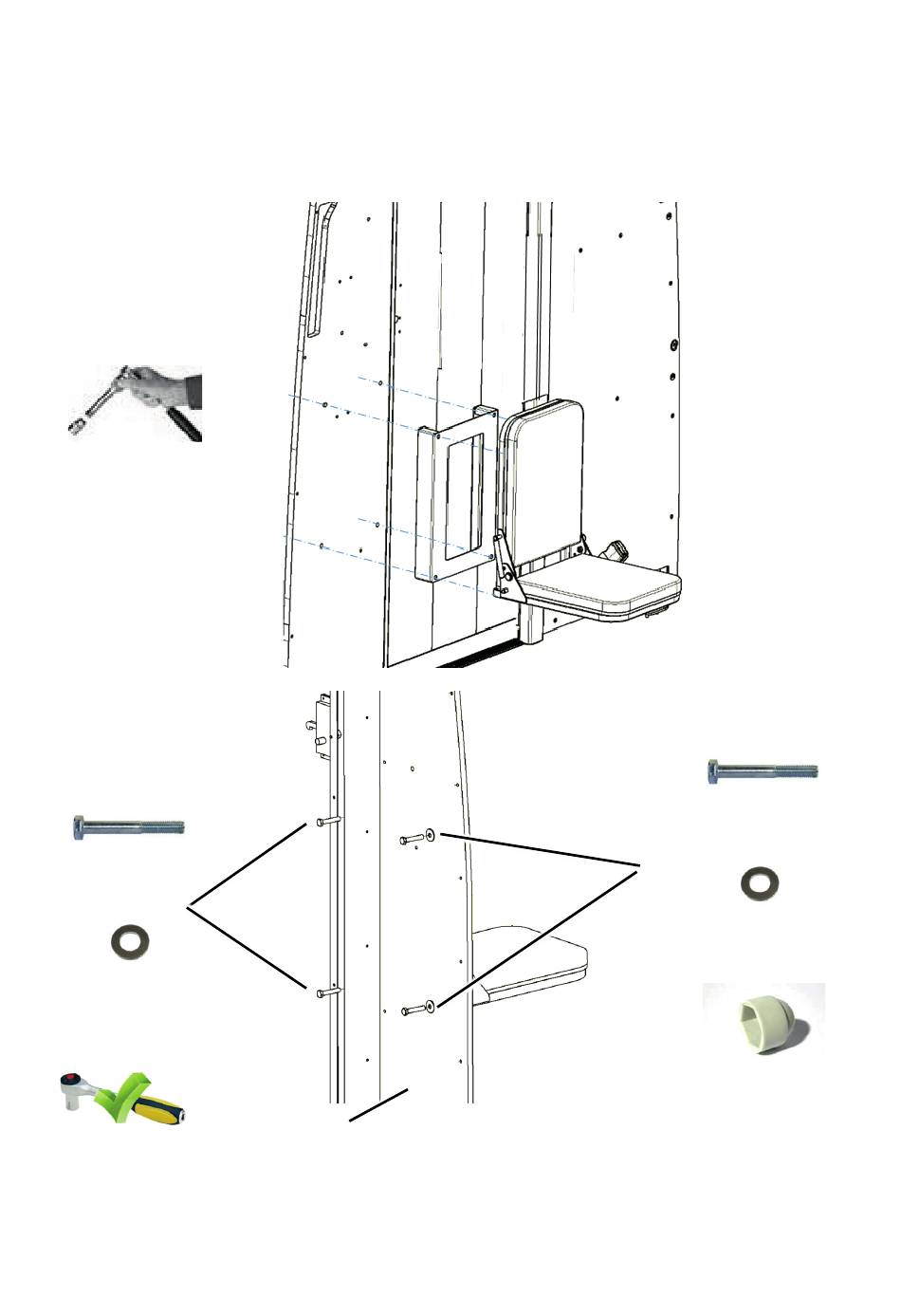

Installation of partition
Fix foldaway seat
Fix the seat plinth between the foldaway seat and the wooden panel with.
A/F17
M10x120
M10x120
Ø 10.5x30x2.5
Ø 10.5x20x2.0
A/F17
Loading space side
39 Nm
