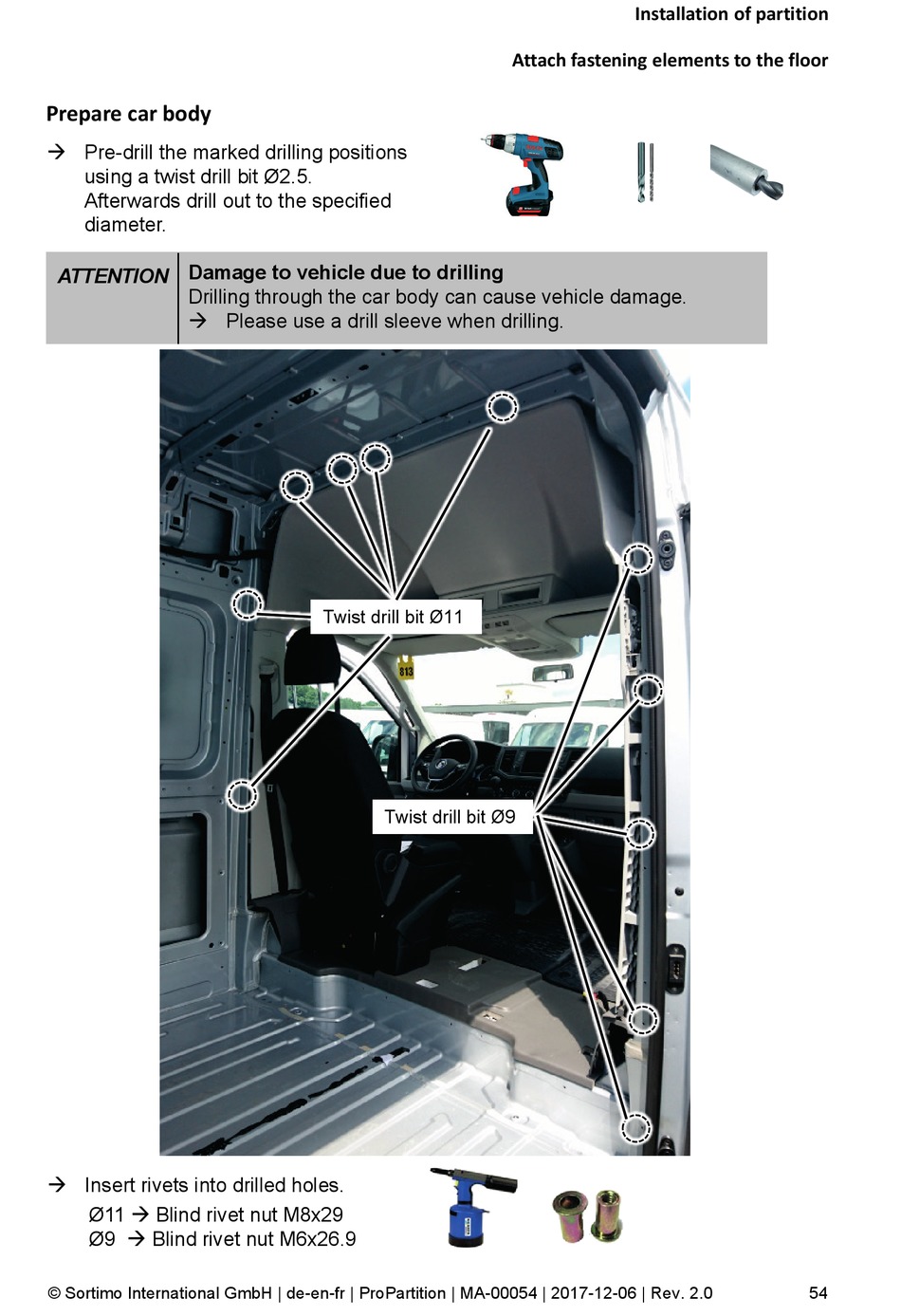

Prepare car body
 Pre-drill the marked drilling positions
using a twist drill bit Ø2.5.
Afterwards drill out to the specified
diameter.
Damage to vehicle due to drilling
ATTENTION
Drilling through the car body can cause vehicle damage.
 Please use a drill sleeve when drilling.
 Insert rivets into drilled holes.
Ø11  Blind rivet nut M8x29
Ø9  Blind rivet nut M6x26.9
