Sortimo ProPartition Montageanleitung Seite 67

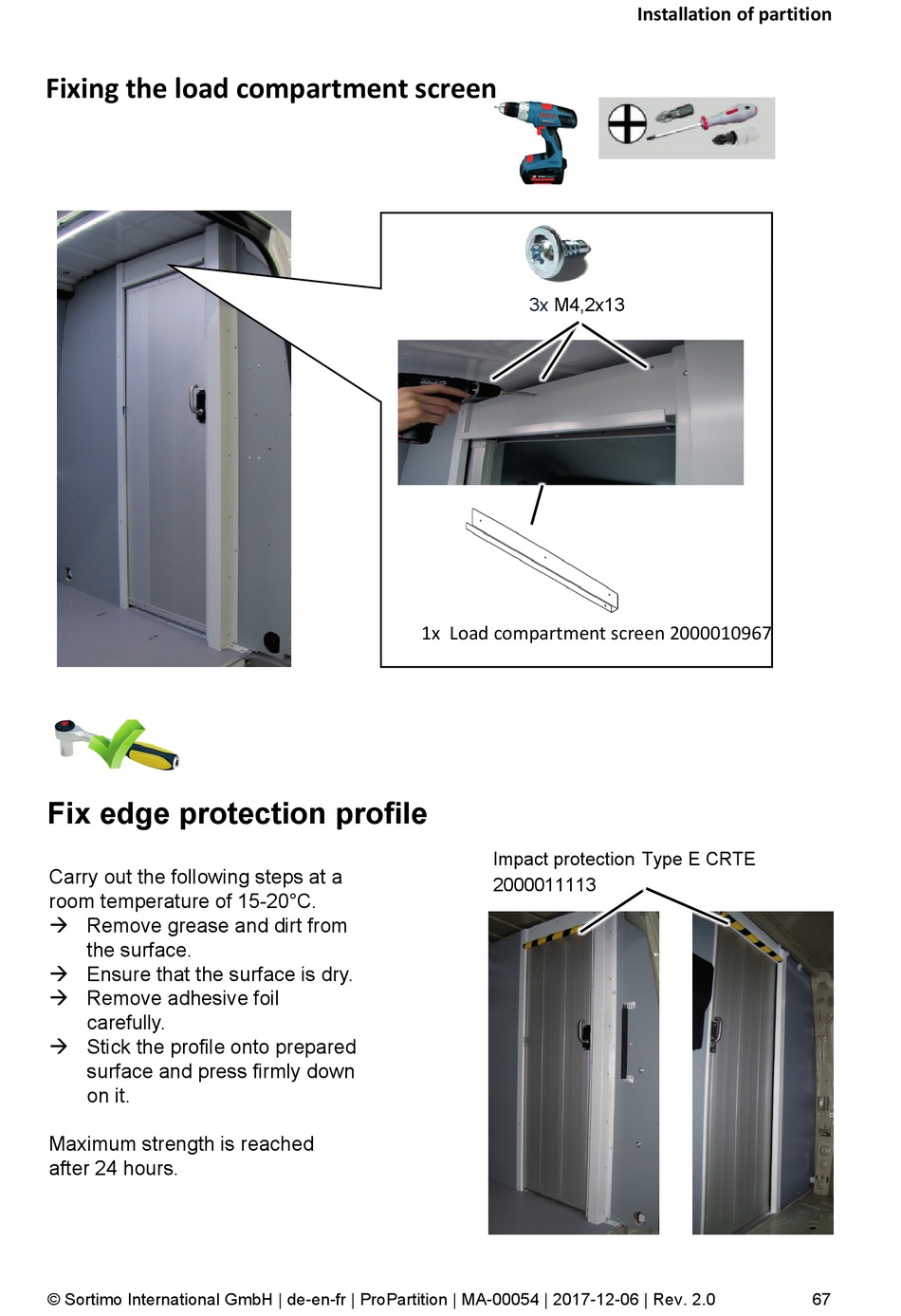

Fixing the load compartment screen
Fix edge protection profile
Carry out the following steps at a
room temperature of 15-20°C.
 Remove grease and dirt from
the surface.
 Ensure that the surface is dry.
 Remove adhesive foil
carefully.
 Stick the profile onto prepared
surface and press firmly down
on it.
Maximum strength is reached
after 24 hours.
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
3x M4,2x13
1x Load compartment screen 2000010967
Impact protection Type E CRTE
2000011113
Installation of partition
67
