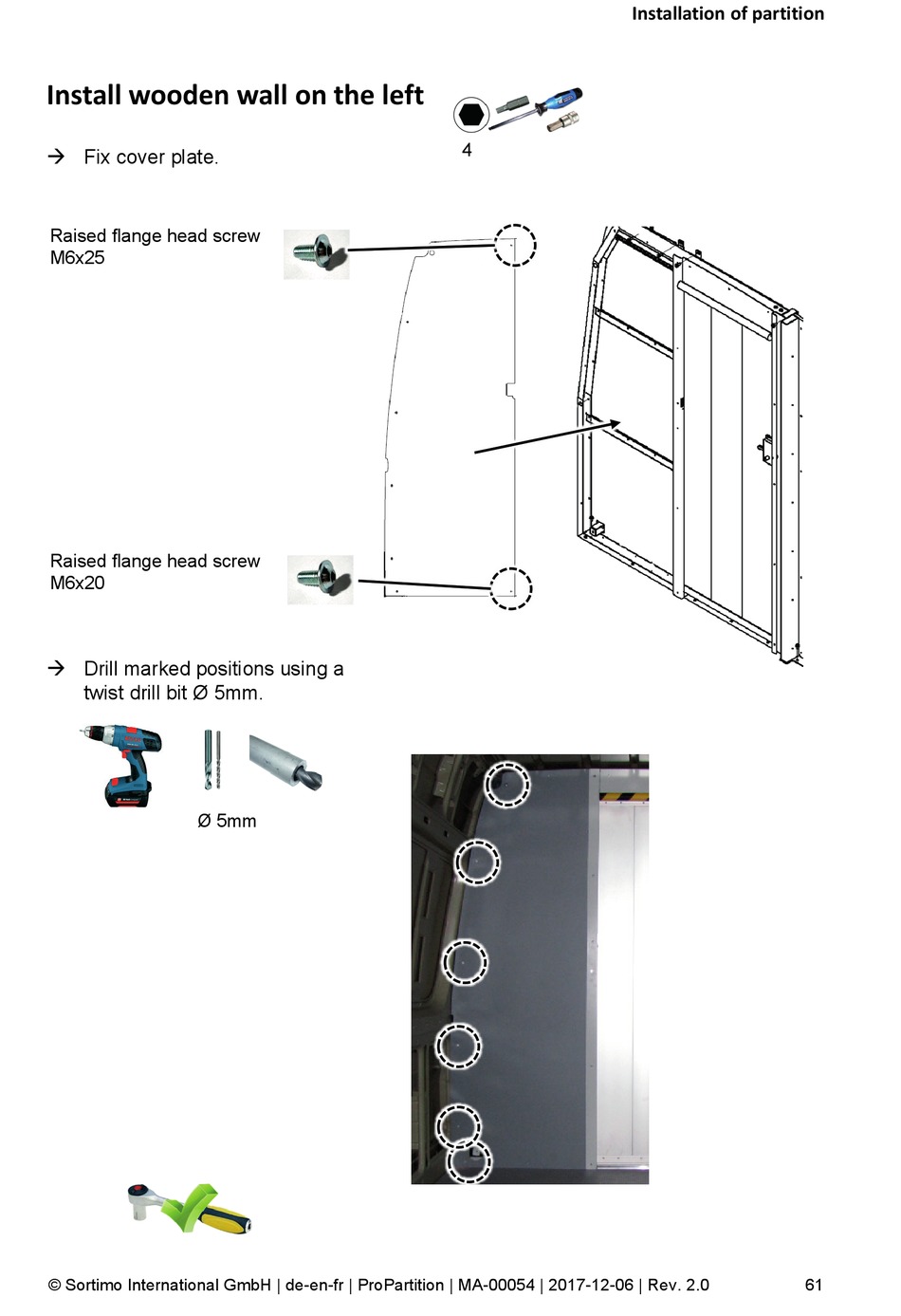

Install wooden wall on the left
 Fix cover plate.
Raised flange head screw
M6x25
Raised flange head screw
M6x20
 Drill marked positions using a
twist drill bit Ø 5mm.
Ø 5mm
