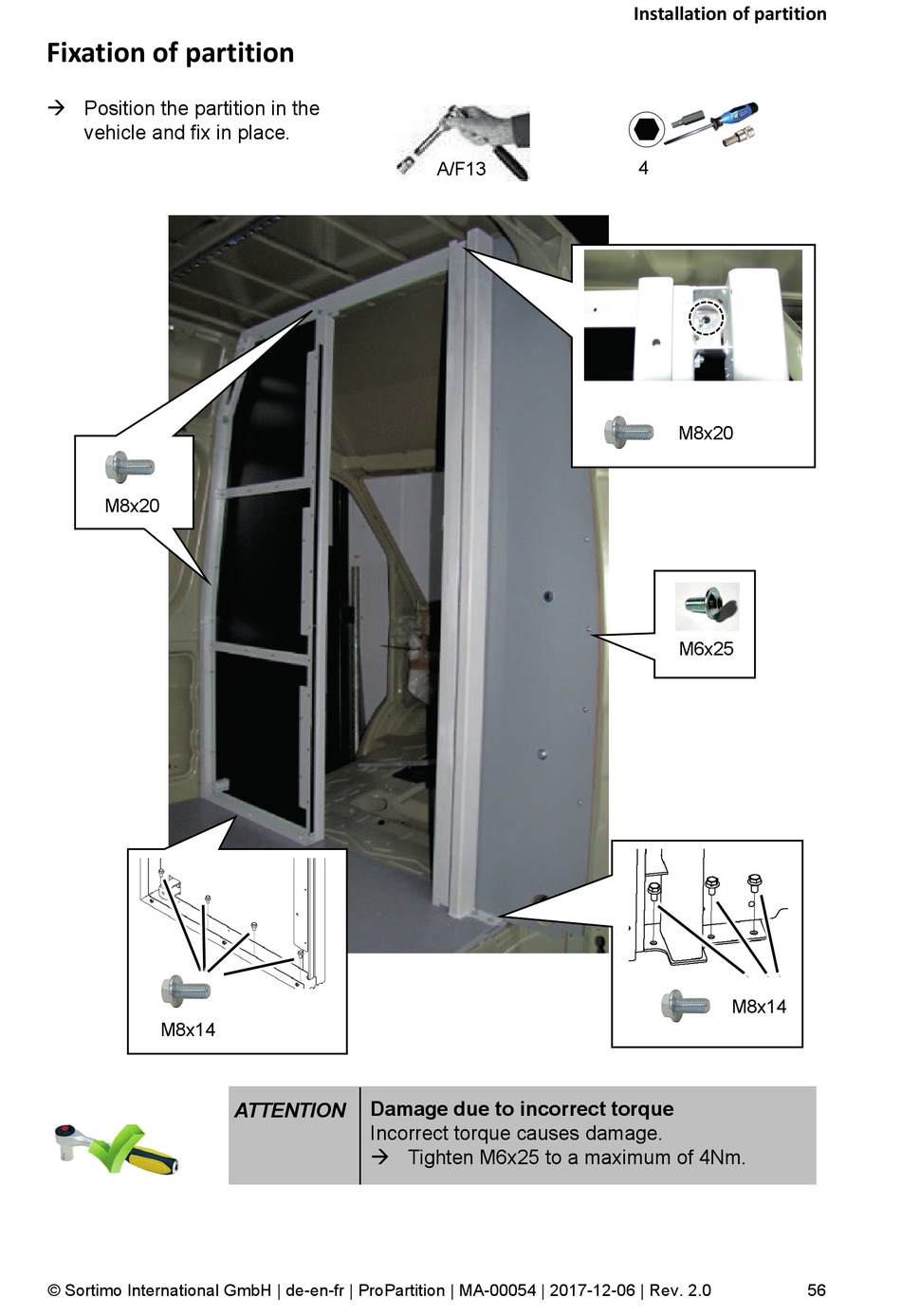

Fixation of partition
 Position the partition in the
vehicle and fix in place.
M8x20
M8x14
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
Damage due to incorrect torque
ATTENTION
Incorrect torque causes damage.
 Tighten M6x25 to a maximum of 4Nm.
A/F13
Installation of partition
4
M8x20
M6x25
M8x14
